OUTLOOK INSTALLATION
Introduction Harness Description Operating Instructions Pyrometer Probe Calibration TroubleshootingOutLook Installation
Data Link Plug Location
Data Link Plug
‘03-’05 Dodge
Sub-Harness
(#2 b.)
MAP Sensor Plug
Data Link Plug

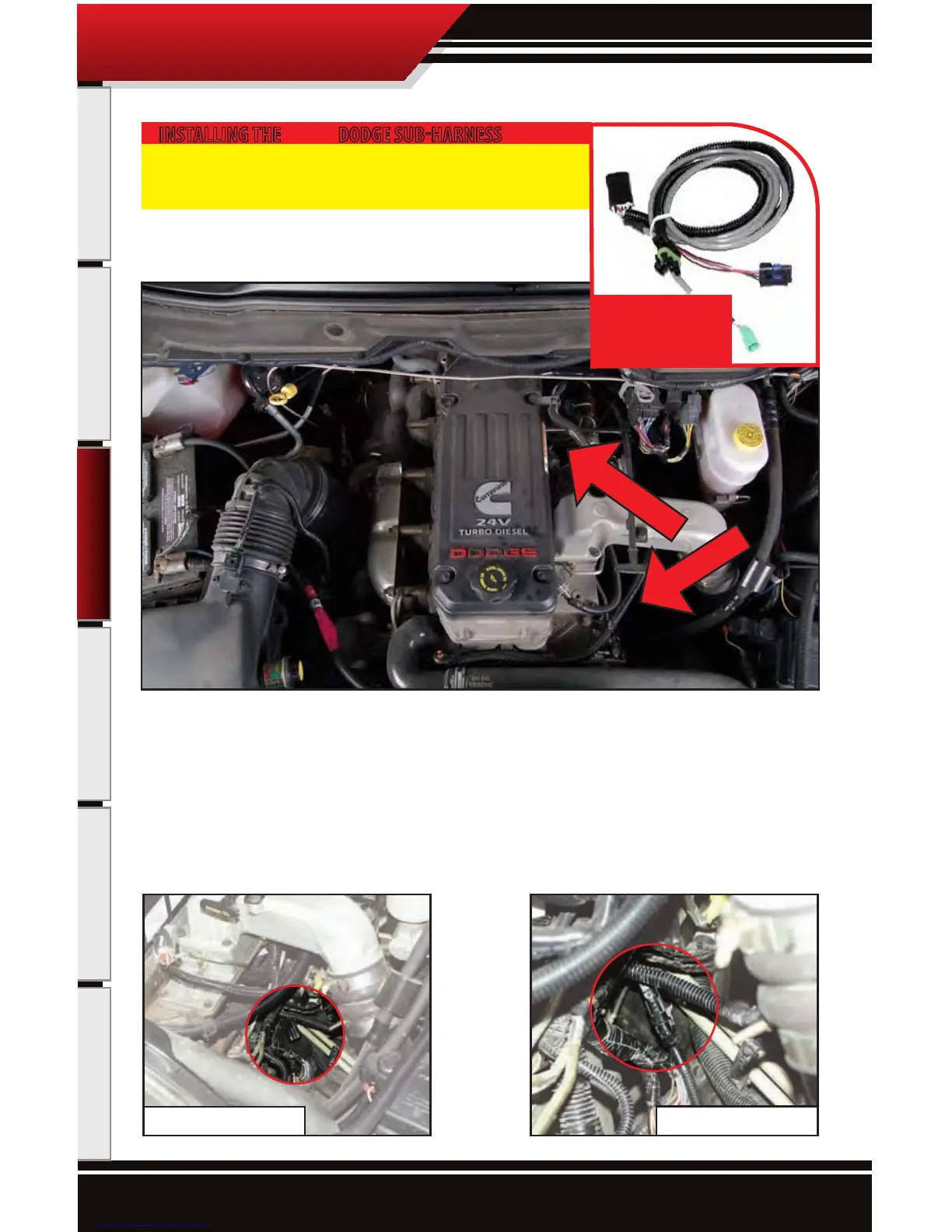

INSTALLING THE ‘03’05 DODGE SUBHARNESS
IMPORTANT: Skip these steps if your vehicle is not a ’03-’05 Dodge
Cummins
In this step you will connect the Data Link and the MAP Sensor
plugs to ‘03-’05 Dodge Sub-Harness, page 2 #2b.
DATA LINK PLUG:
1. Locate the stock Data Link Plug which is half way down the side of the engine on the driver’s side. Remove the stock
Data Link retainer, which is covered with the retainer, from the stock Data Link Plug. Remove the retainer from the
stock data link plug and store in a safe place. You may need to replace it when taking the vehicle in for service.
2. Plug the Bully Dog Data Link Plug (that is attached to the sub harness) into the truck’s data plug receiver. Press the
two plugs together until they snap into place.
To Next Page
