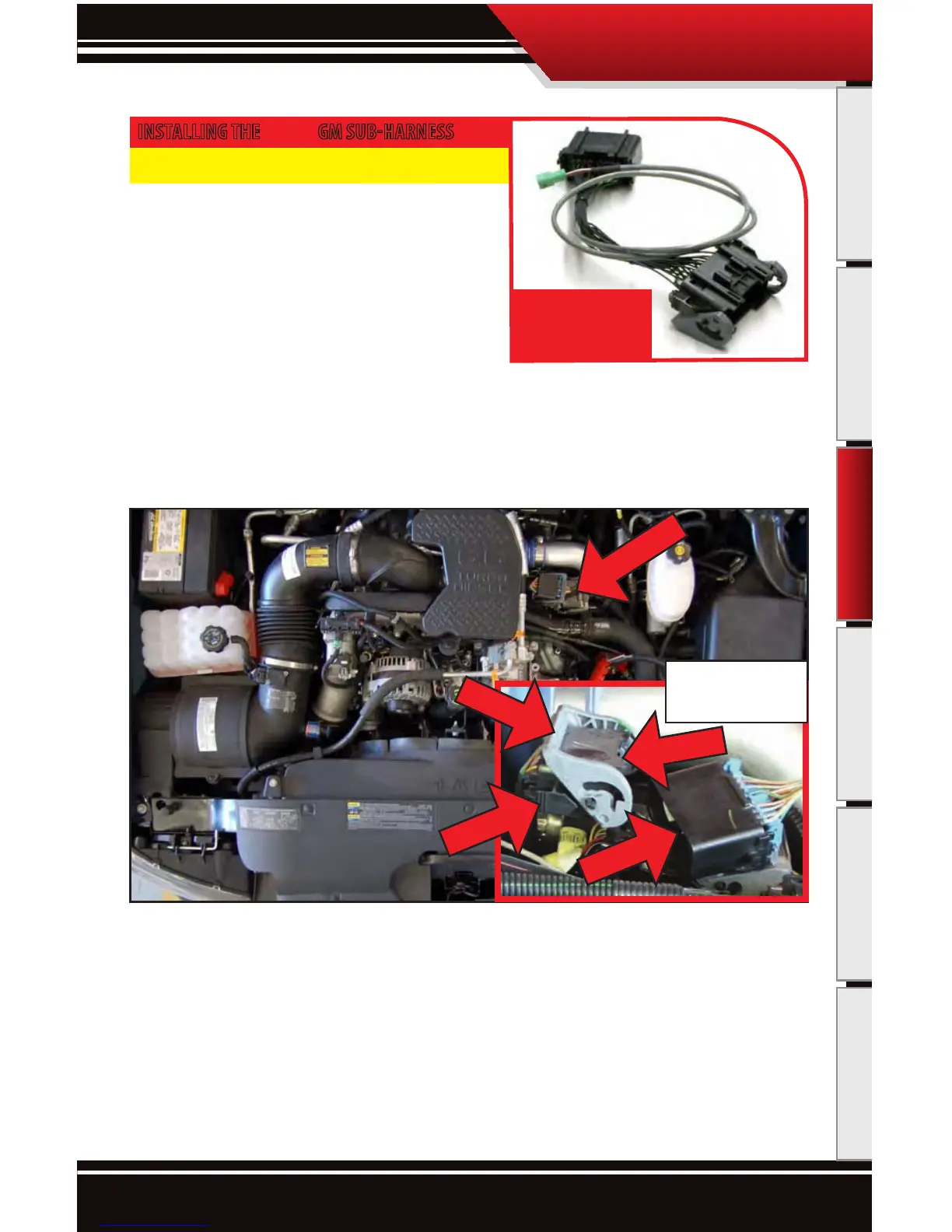

INSTALLING THE ’01’05 GM SUBHARNESS
IMPORTANT: Skip these steps if your vehicle is not a ’01-’05 GM
In this step you will connect the GM Engine Harness
to ‘01-’05 GM Sub-Harness, page 2 #2a.
GM ENGINE HARNESS PLUG:
1. On the drivers’ side top of the engine, disconnect the stock
GM Engine Harness from its receiver. To disconnect, gently
press the lever ears in and pull back on the grey bail. The
plug should slide out smooth and easily with the bail
shown in the disconnected position as shown below.
2. Connect the Sub-Harness plug and the GM Engine Harness receiver and close the bail on the GM Harness
receiver. If this is done correctly, the Sub-Harness plug will be pulled into the GM Engine Harness receiver
when the bail is closed.
3. Connect the Sub-Harness receiver and the GM Engine Harness plug and close the bail on the Sub-Harness receiver.
If this is done correctly, the GM Engine Harness plug will be pulled into the Sub-Harness receiver when the bail is
closed.
PLACEMENT OF ’01’05 GM SUBHARNESS:
1. Run the green connector on the end of the Sub-Harness over to the back corner of the engine bay on the
drivers’ side and let it sit while installing the other harnesses.
