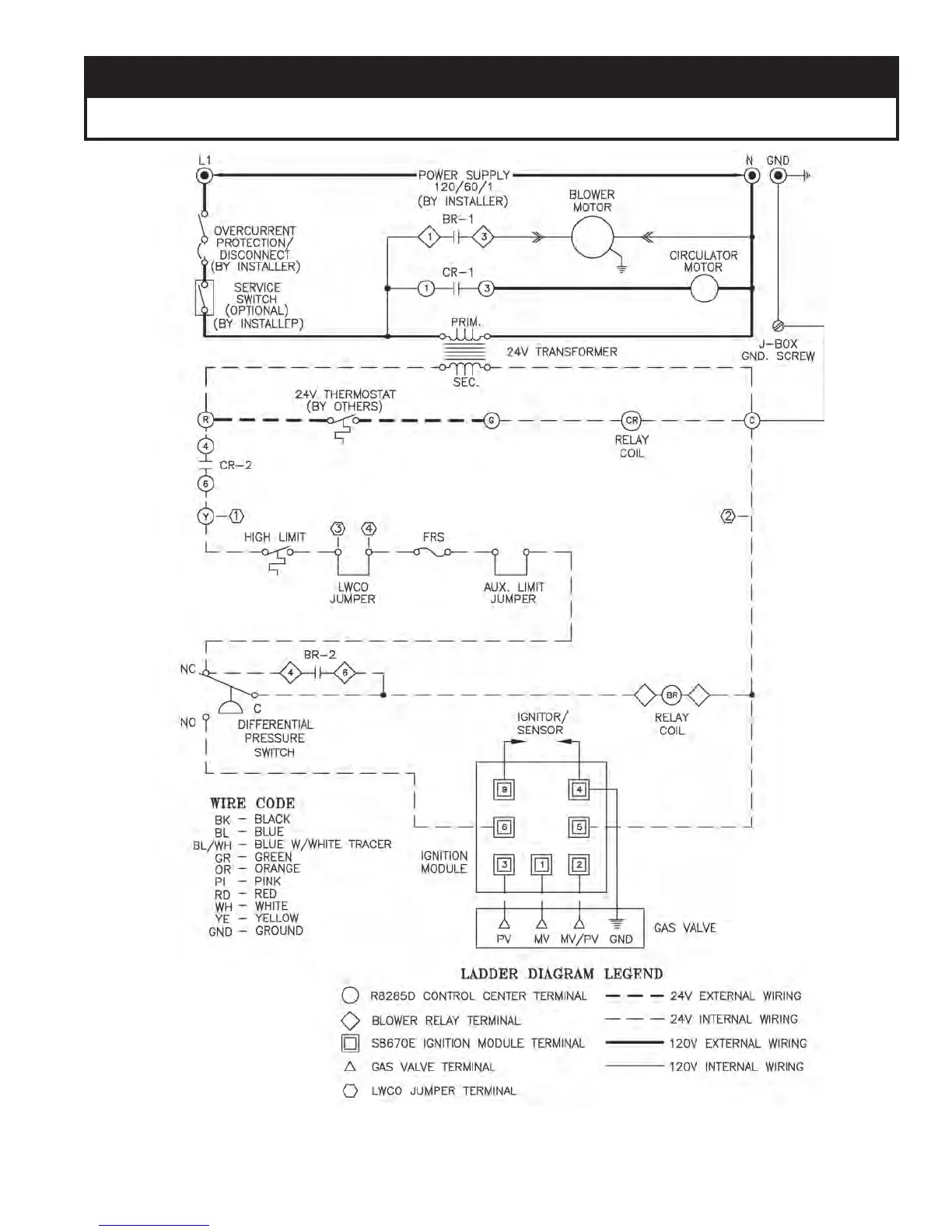

Figure 15: Internal Boiler Wiring Ladder Diagram
NOTICE
If an additional system limit is used, install in series with the auxiliary limit jumper shown in the drawing
below.
