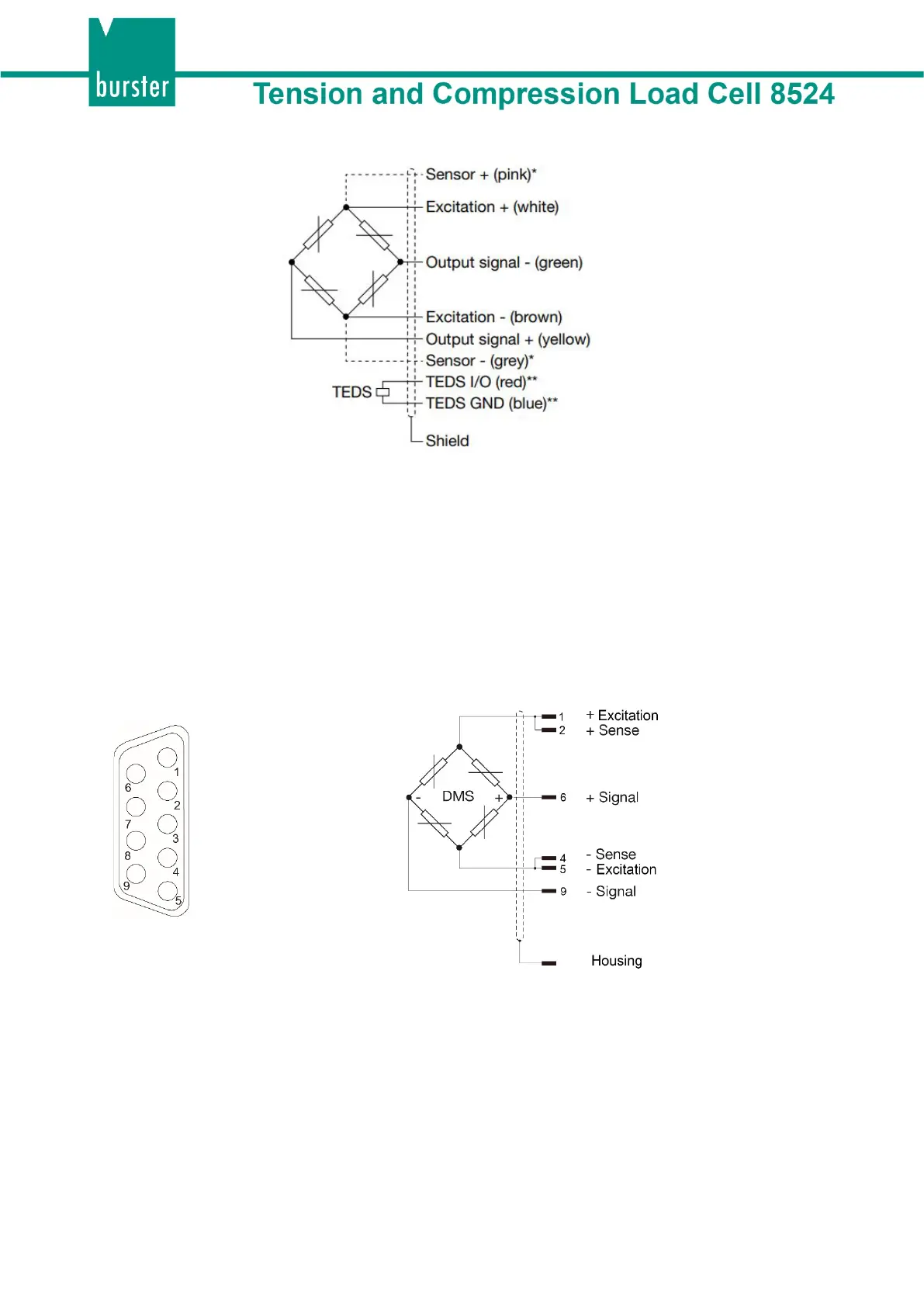

Wire colors for model 8524 tension and compression load cell with open cable ends
Figure 7: Wire colors for model 8524 tension and compression load cell
Description for Figure 7:
*: Only with extended cable over 5 m in length
**: Optional
5.3.1.1 Option 8524-xxxx-xxBxxxxx
Connection to burster devices with 9-pin D-sub socket with 6-wire system
IMPORTANT: The tension and compression load cell cannot be connected to the Sensormaster 9163
with this pin assignment.
Figure 8: Device connection Figure 9: 9-pin connection with 6-wire system
