5.3.1.4 Option 8524-xxxx-xxFxxxxx
Connection to burster devices with 12-pin round connector.

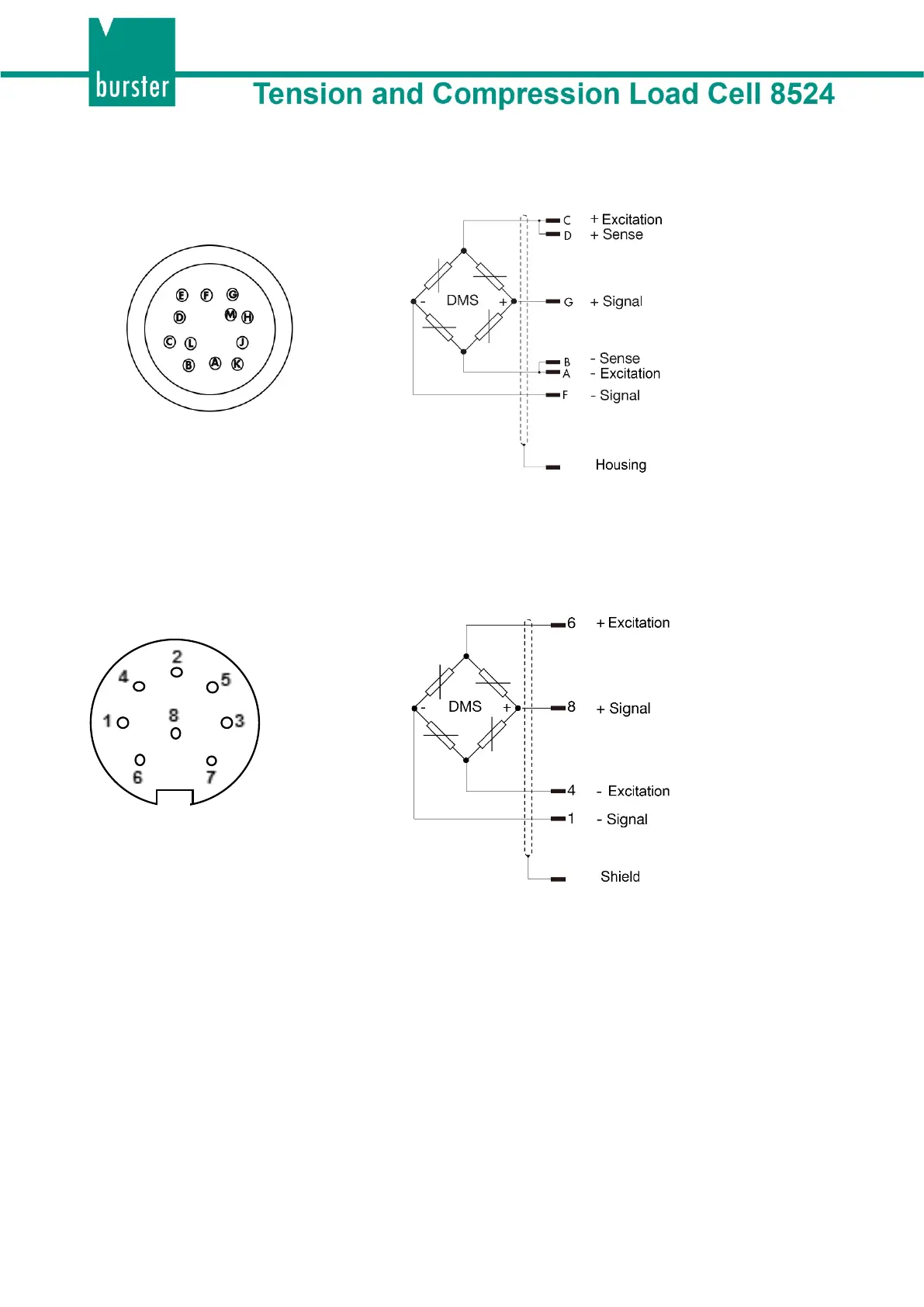

Figure 14: Device connection Figure 15: 12-pin round connector pin assignment
5.3.1.5 Option 8524-xxxx-xxHxxxxx
Connection with 8-pin connector.
Figure 16: Solder side Figure 17: 8-pin connector pin assignment
