19 of 24
5.3.1.2 Option 8524-xxxx-xxTxxxxx
Connection to burster devices with 9-pin D-sub socket with 6-wire system with burster TEDS.

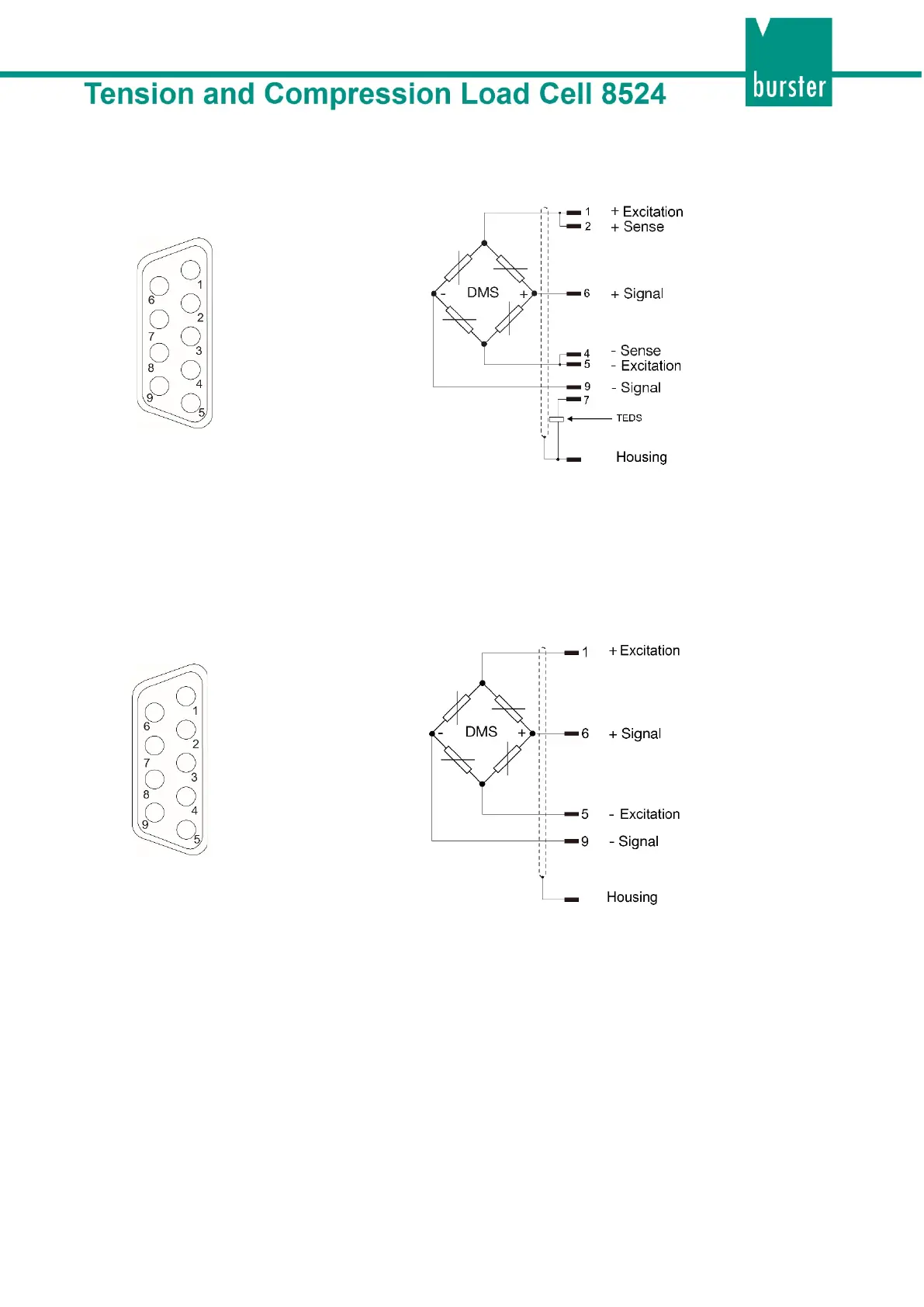

Figure 10: Device connection Figure 11: Connection to 9-pin burster TEDS
5.3.1.3 Option 8524-xxxx-xxExxxxx
Connection to burster devices with 9-pin D-sub socket with 4-wire system for 9163-V3xxx.
IMPORTANT: Only applicable to 9163 digital indicator.
Figure 12: Device connection Figure 13: 9-pin connection with 4-wire system
