BUSCH COBRA - Fitting the Coupling; Coupling Installation Notes

Installation | 5
Instruction Manual COBRA NC 2500 B WCV_EN_en 19 | 52

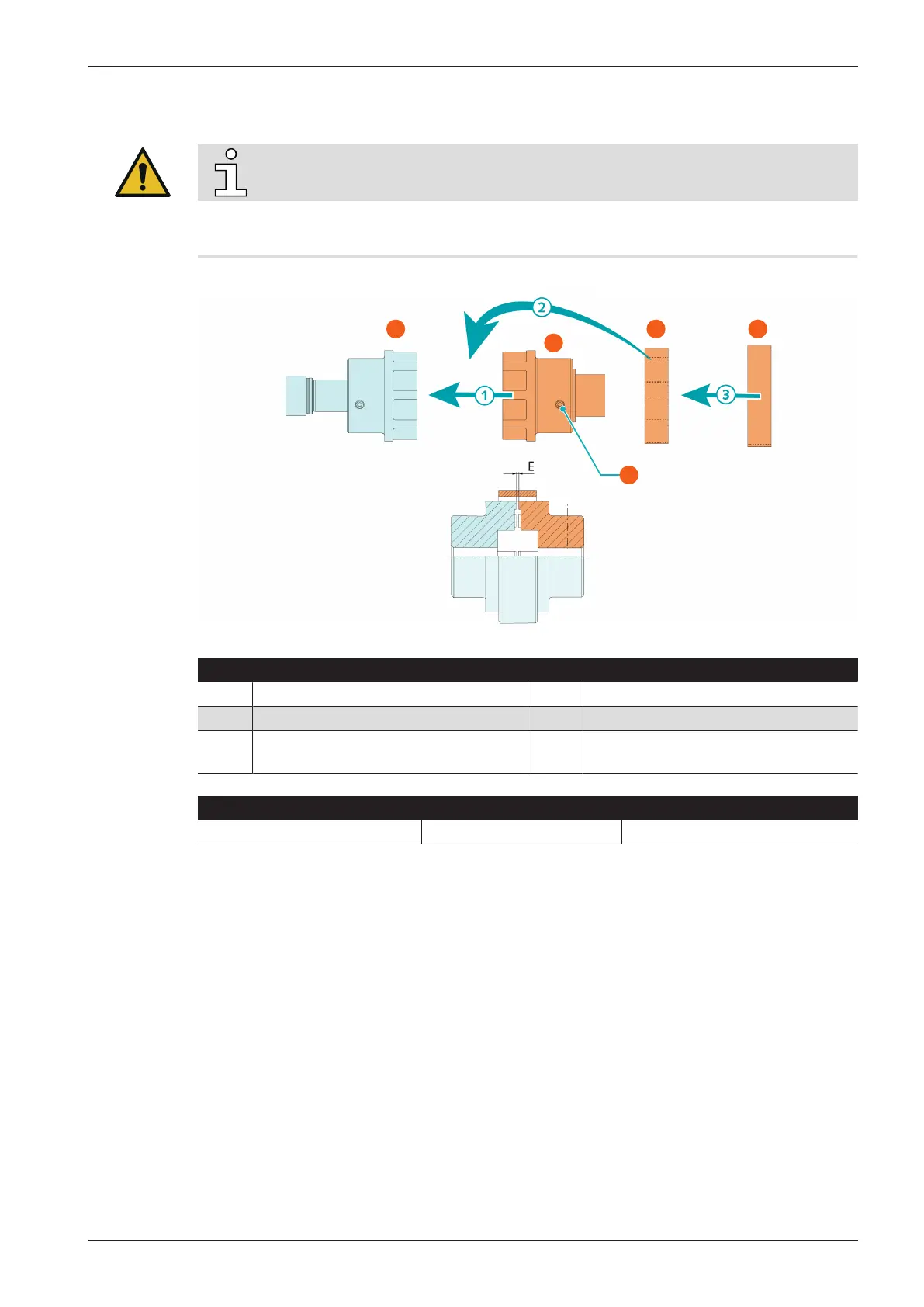

5.5 Fitting the Coupling
NOTE
Radial screw.
For trouble-free operation, use thread locking glue to secure the radial screw.
1
2
3 4
5
Description
1 Coupling hub (machine side) 2 Coupling hub (motor side)
3 Elastic insert 4 Ring
5 Radial screw / max. admissible torque:
10Nm
Machine type Coupling size Value “E” (mm)
NC 2500 B Samiflex
®
A45 3,5 (0/+1)
In case of a machine delivery without motor:
● Fit the second coupling hub on the motor shaft (separately delivered).
● Axially adjust the hub in such a way until value "E" is reached.
● When the coupling adjustment is done, lock the coupling hub by tightening the radial screw.
For further coupling information, go to www.samiflex.se and download the instruction manual of the
Samiflex
®
coupling.
