3 Transport
WARNING
Suspended load.
Risk of severe injury!
● Do not walk, stand or work under suspended loads.
WARNING
Lifting the machine using the motor eye bolt.
Risk of severe injury!
● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown.
NOTICE
In case the machine is already filled with oil.
Tilting a machine that is already filled with oil can cause large quantities of oil to ingress into
the cylinder.
● Drain the oil prior to every transport or always horizontally transport the machine.
● To find out the weight of the machine, refer to the chapter Technical Data or the nameplate (NP).
● Make sure that the eye bolt(s) (EB) is/are in faultless condition, fully screwed in and tightened by
hand.

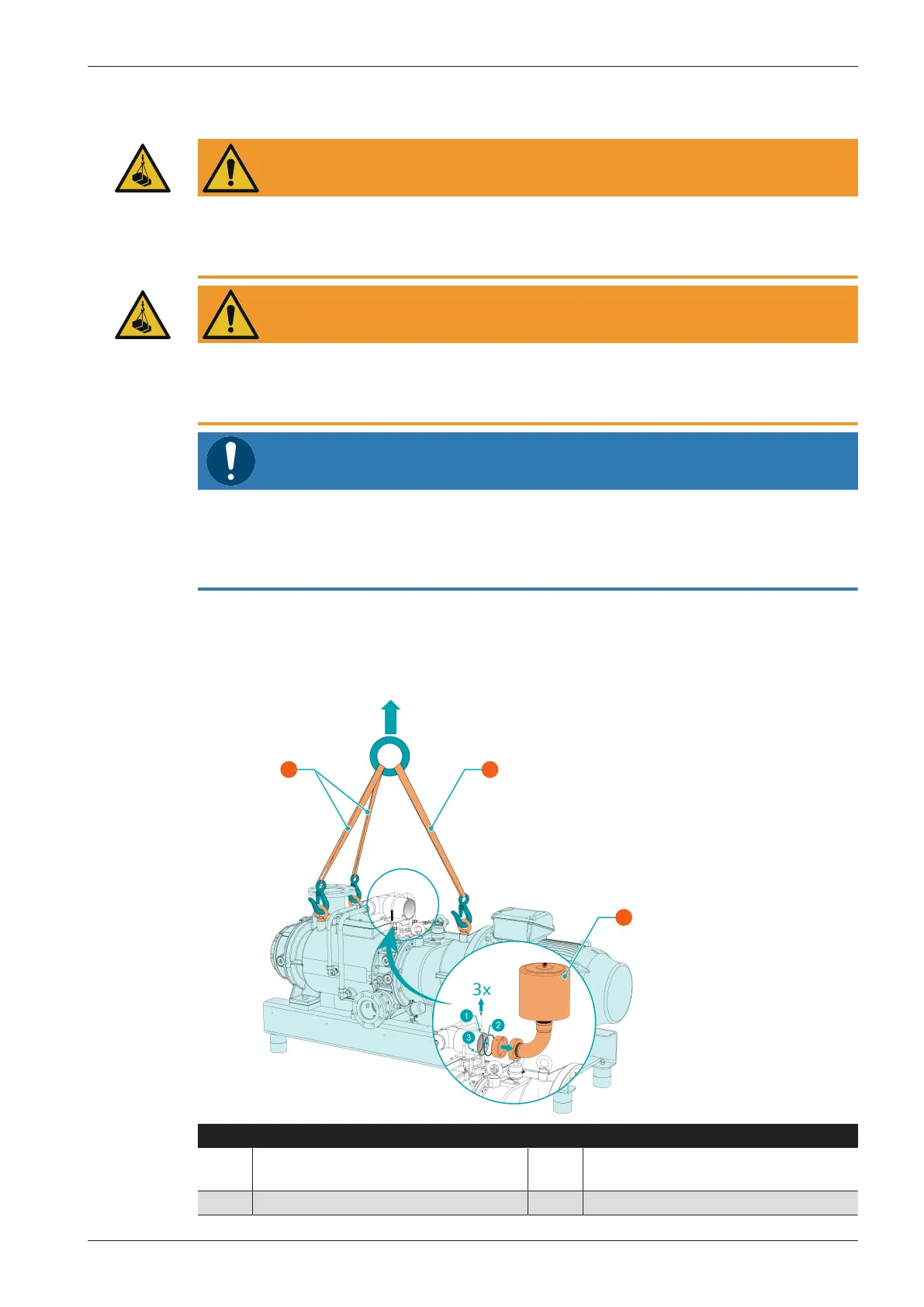

Transport with a lifting hook
Description
1 The air filter must be removed before
lifting the machine!
2 l1 = ~430 mm
3 l2 & l3 = ~650 mm
