DRIVELINE ATTACHMENT
Before installing driveline to tiller, make sure all dirt, paint and grease are removed from the
gearbox shaft. To ease in the installation, a light coat of grease may be applied to the gear-
box shaft after cleaning.
1. Remove the M12-1.25 x 65 Capscrew, M12 Lockwasher and M12- 1.25 Hex Nut from
the slip clutch yoke end and retain for re-installation.
2. Slide slip clutch yoke end of driveline onto the gerabox shaft.
3. Align the hole in the yoke of the slip clutch with the groove around the gearbox shaft.
4. Place the M12-1.25 x 65 Capscrew through the yoke and through the groove in the shaft.
Attach the M12 Lockwasher and the M12 Hex Nut to the Capscrew and tighten.

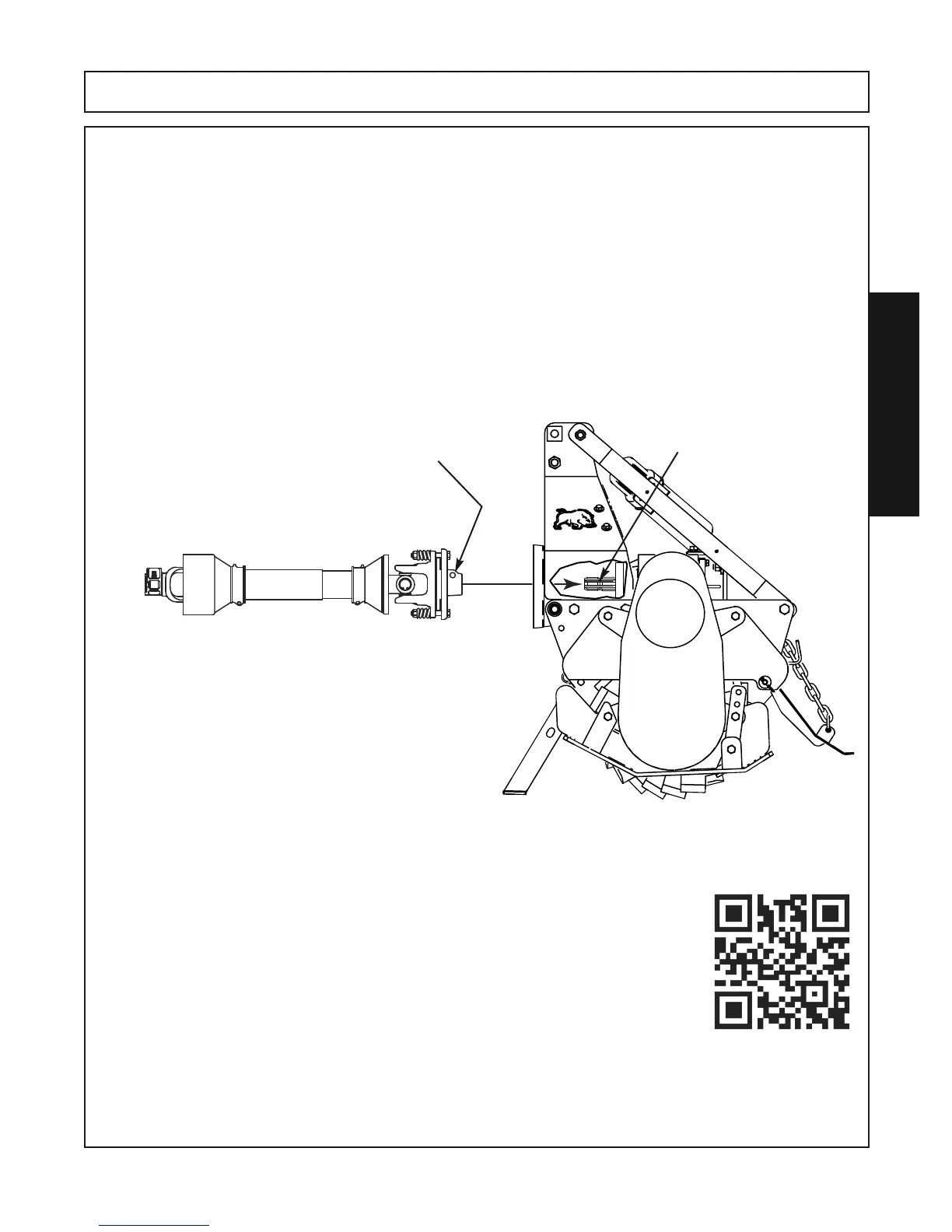

Gearbox Shaft Groove
Slip Clutch Yoke Hole For
M12-1.25 x 65 Capscrew
M12 Lockwasher
M12 -1.25 Hex Nut
IMPORTANT: Scan this QR Code with your smart phone to link to the ADMA Driveline
Safety Manual for more information on the safe use of a driveline during normal oper-
ation and maintenance. Or type in your internet browser the following web address:
www.algqr.com/dme
