RTG SERIES TILLER 05/16 Assembly Section 3-9
© Alamo Group.Inc.
ASSEMBLY
ASSEMBLY

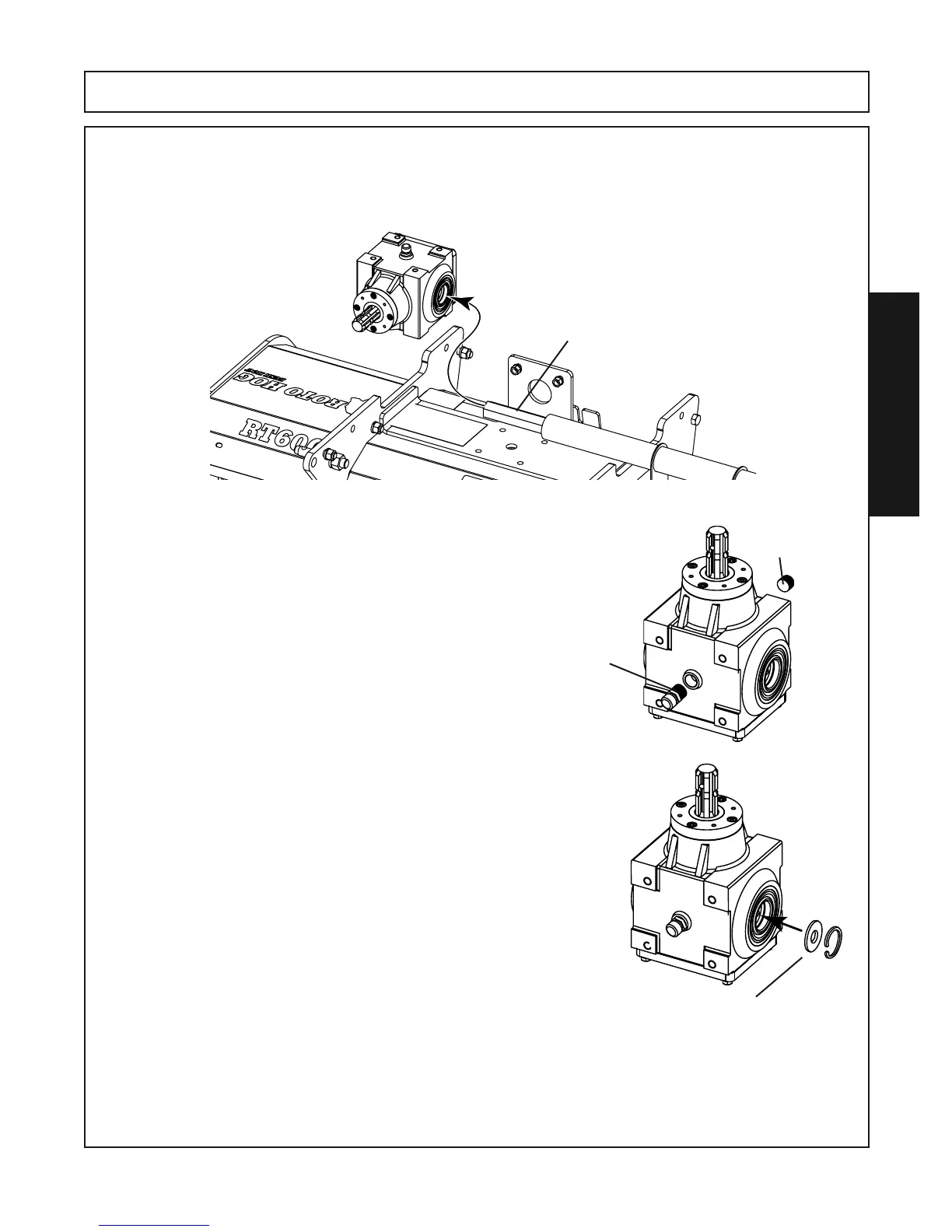

Step 5. Slide the Gearbox to the right untill it clears the hex driveshaft. Remove the Gearbox and place it on
a clean level surface with the back of the gearbox down and the input shaft pointing up. This is to
prevent the oil from running out while swapping the location of the Breather Plug and the oil plug on
the bottom of the box.
Step 6. Swap locations of the Vent Plug and the Oil Plug so the Vent
Plug is where the Oil Plug was and the Oil Plug is where the
Vent Plug was.
Step 7. Remove the Snap Ring and Flatwasher from the inside of
the Hex Tube and reinstall to the opposite side. Place the
Flatwasher in first then secure in place with the Snap Ring.
Slide the Gearbox to the right and remove
Hex Driveshaft
Oil
Plug
Vent
Plug
Snap Ring and Flatwasher
Relocated From Other Side
