BWT EASY DOSE - Mounting the injection kit

TRAITEMENT DE L’EAU
31
2023/04 - Indice de révision : A - Code : 29600

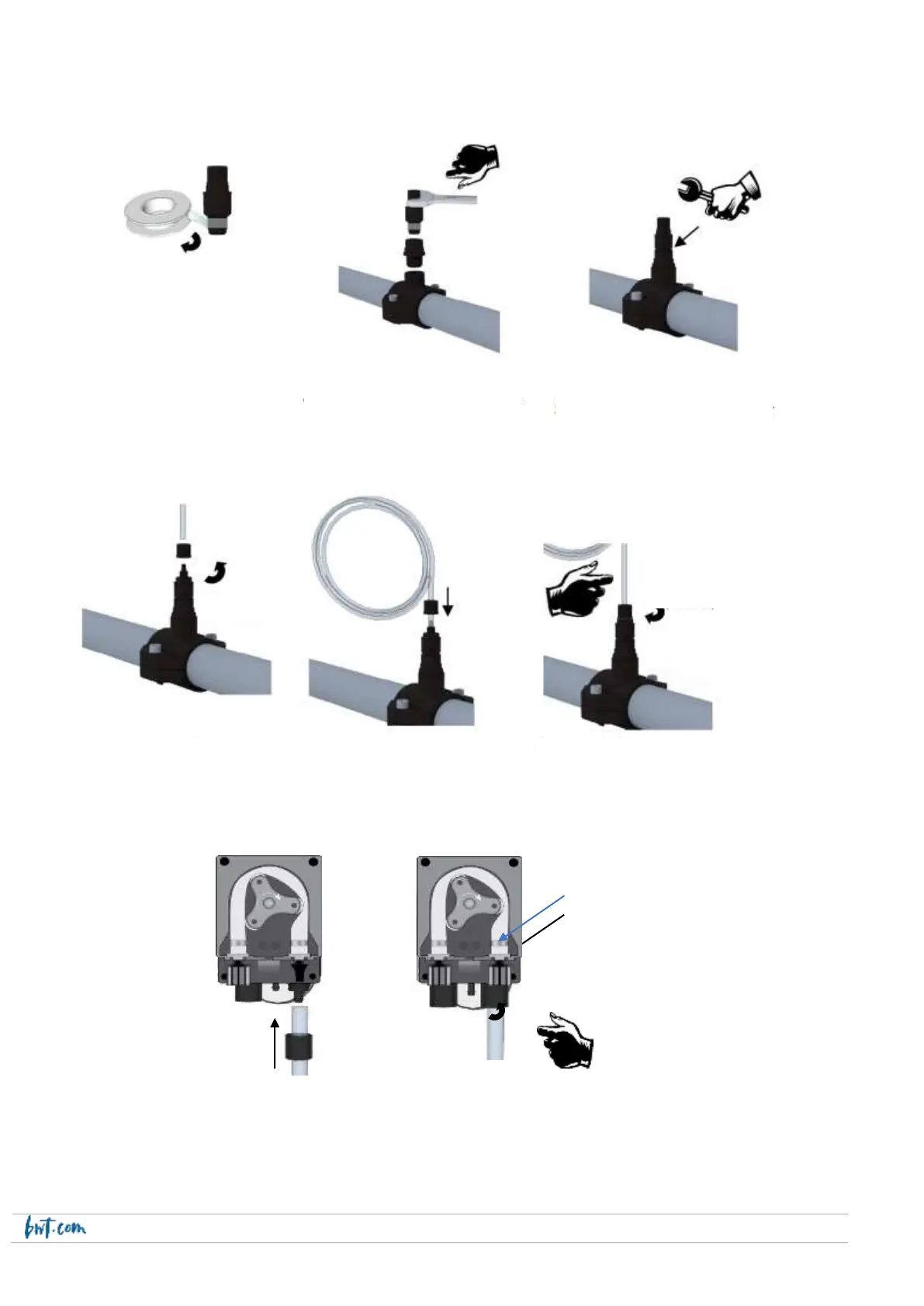

12.4.3 Mounting the injection kit
Même opération du côté de
la pompe doseuse.
Visser le bouchon avec le
tube PE (Blanc) sur la pompe.
Flèche
d’indication de
la sortie pompe
Teflon tape
Wrap Teflon around the
threading of the probe housing
Screw the union onto the
saddle clamp
Tighten the injection valve onto
the union
Loosen the injection valve nut.
Thread the PE tubing through
the cap and push it onto the
valve cone.
Tighten the cap with the PE
tubing (white) onto the valve.
PE tubing
(white)
Arrow indicating
the pump output
Repeat the same procedure
on the dosing pump side.
Screw the cap with the PE
tubing (white) onto the pump.
