- 16 -

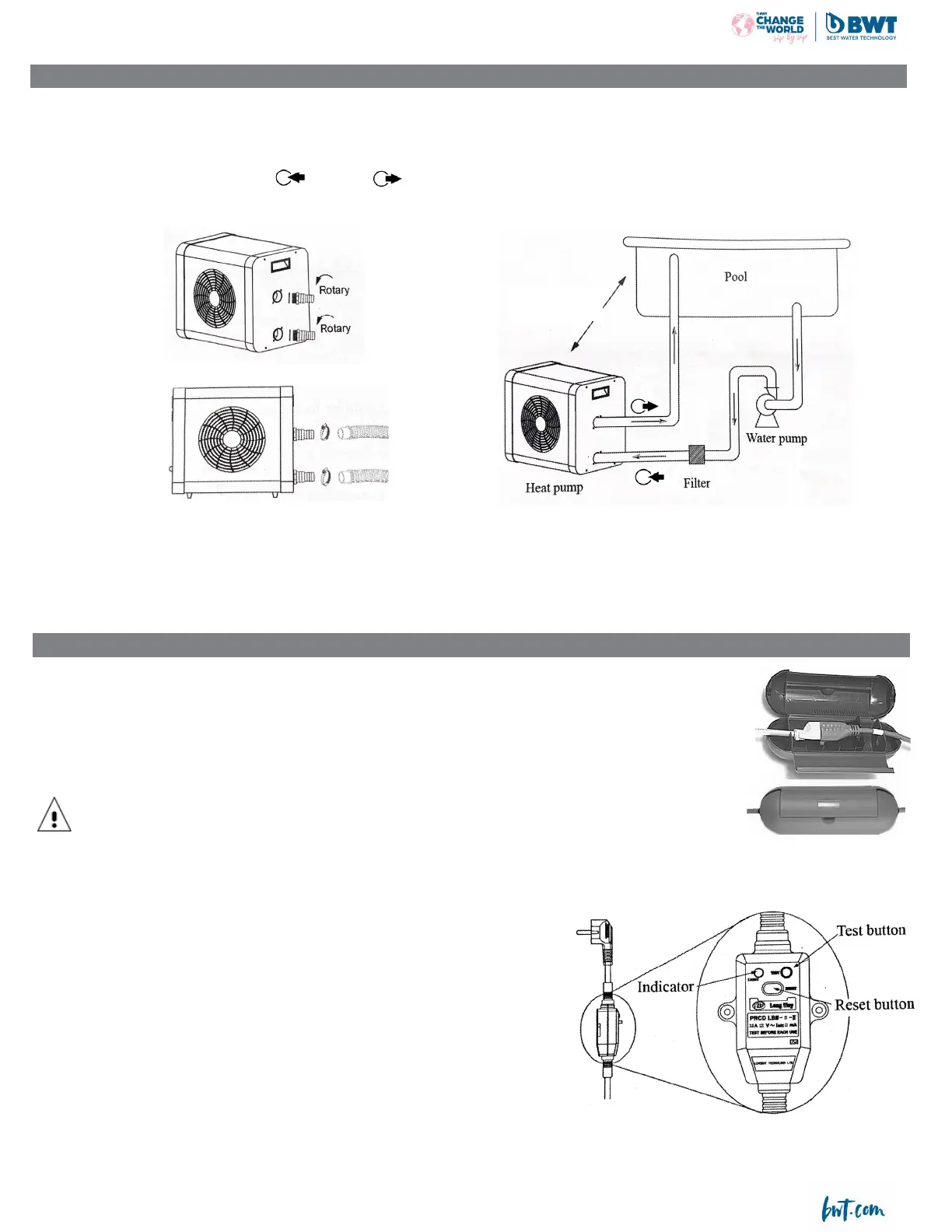

ELECTRICAL CONNECTION

• Prior to undertaking any intervention inside the HP, it is imperative to disconnect the power supply from the HP; there is a risk

of electrocution that can cause damages, severe injuries and even death.

• The power supply should match the voltage featuring on the information plate of the HP.

• The HP must be connected to an earthing connection.

• The electrical terminal should covered from water with an adapted system (not included).

Only a certifyed electrician can conrm if your electrical installation is in conformity with local law in force.

Power supply must be equipped with grounding, circuit breaker and 30 mA differential protection.

• The plug provided with the machine is equipped with an additional 10 mA differential security with manual reset button.

• The heat pump must work in the same time as the water pump.

HYDRAULIC CONNECTION

• Water quality necessary for this device: NF-EN-16713-3

• The HP is compatible with all types of water treatment. The HP must imperatively be connected by a PVC pipe of Ø 50mm to the swimming pool’s hydraulic

• circuit, after the lter and before the treatment system, regardless of its type (Cl, pH, Br metering pumps and/or electrolyser).

• Follow the hydraulic connection order (

= water in, = water out)

• Before connecting the PVC pipes to the HP, make sure the circuit is clean of any work residue (stone, soil, etc.).

Connection of the condensate evacuation pack:

During operations, the HP is subject to a condensation phenomenon. This translates into a water ow, which can be more or less important depending on the

degree of humidity. To channel this ow, which can represent several litres of water per day, we recommend you install the provided condensate evacuation

pack and connect it to a suitable water evacuation circuit.

Step 1 :

Step 2 :

> 3,5 m
