Sunny & sufficient lighting. PV’s power supplies electric appliances and excess power can
be stored in MINI ES or sold to the grid.
PV inverter
CT2
Grid
MINI ES
Indoor/
outdoor
Indoor/
outdoor
Power Line
Signal Line
Load L&N&PE
Combiner
box
CT1
Load Distributor
Single-phase
electric appliance

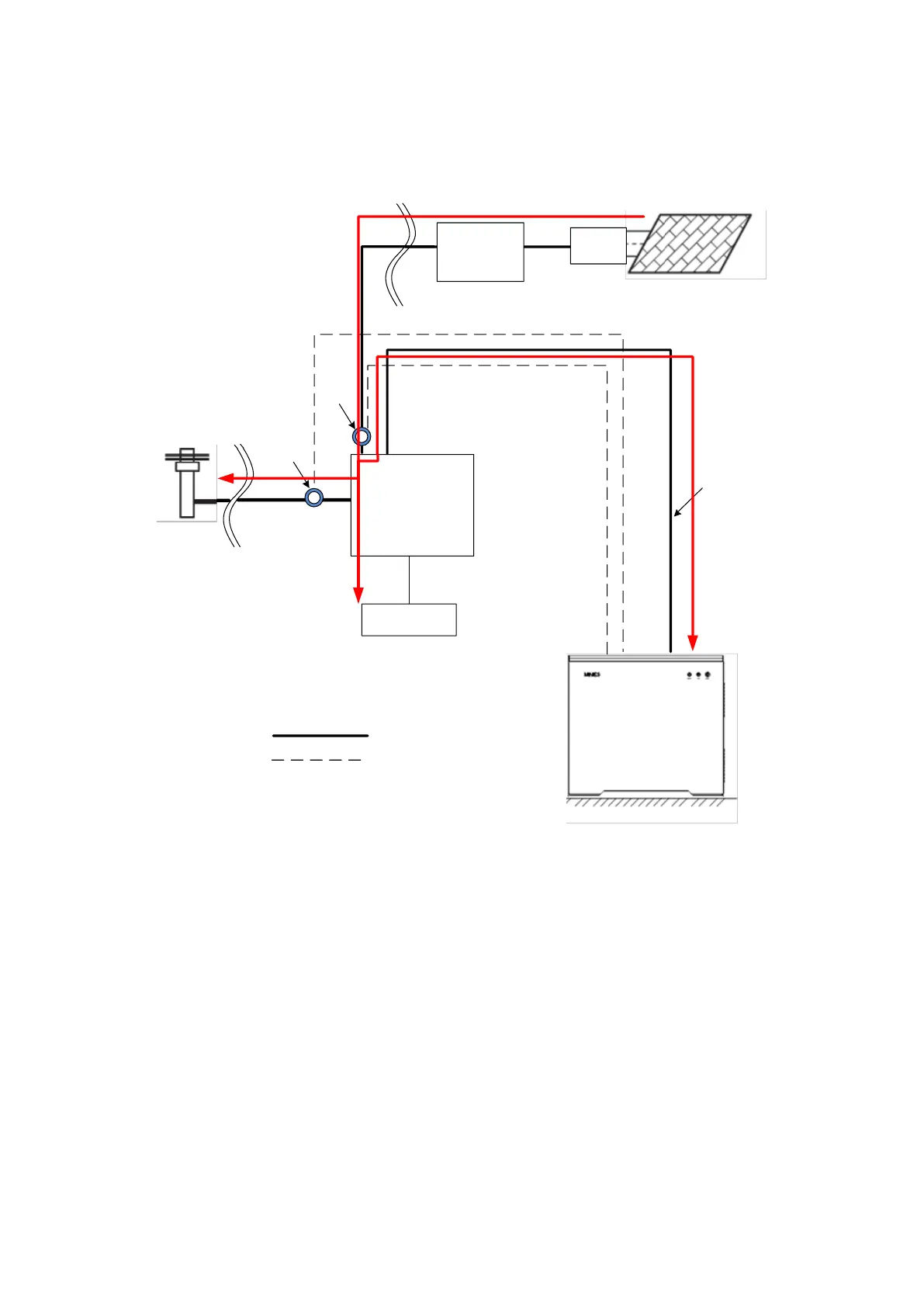

figure6. Power flow diagram
