BYD MINI ES - Page 28

26

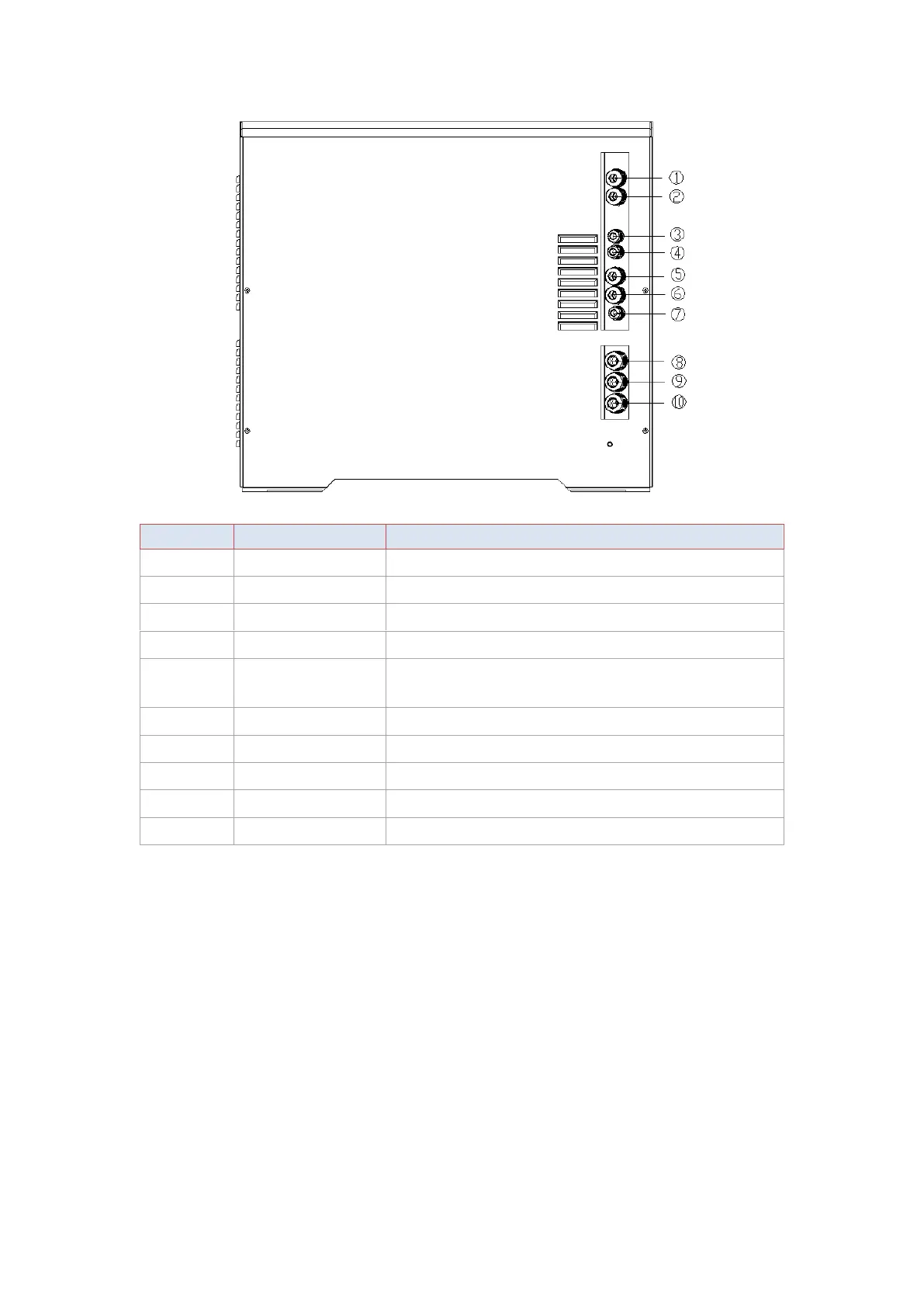

figure12. Bonding hole description
No.
Item
Remark
①
DC+
Reserved ( BYD authorized products can access)
②
DC-
Reserved ( BYD authorized products can access)
③
12V POWER
Reserved (Prohibition of use)
④
RS485
Meter correspondence interface
⑤
CAN
Reserved ( BYD authorized products can access) or
DRED controller communication inlet
⑥
LAN
Network line interface
⑦
CT1-CT3
CT interface (2)
⑧
GRID
Grid cable inlet
⑨
LOAD
Load cable inlet
⑩
PV INVENTER
Reserved (Prohibition of use)
figure4. Bonding holes description
