BYD MINI ES - Local Control Function; Remote Control Function

29
POWERLOCALREMOTE

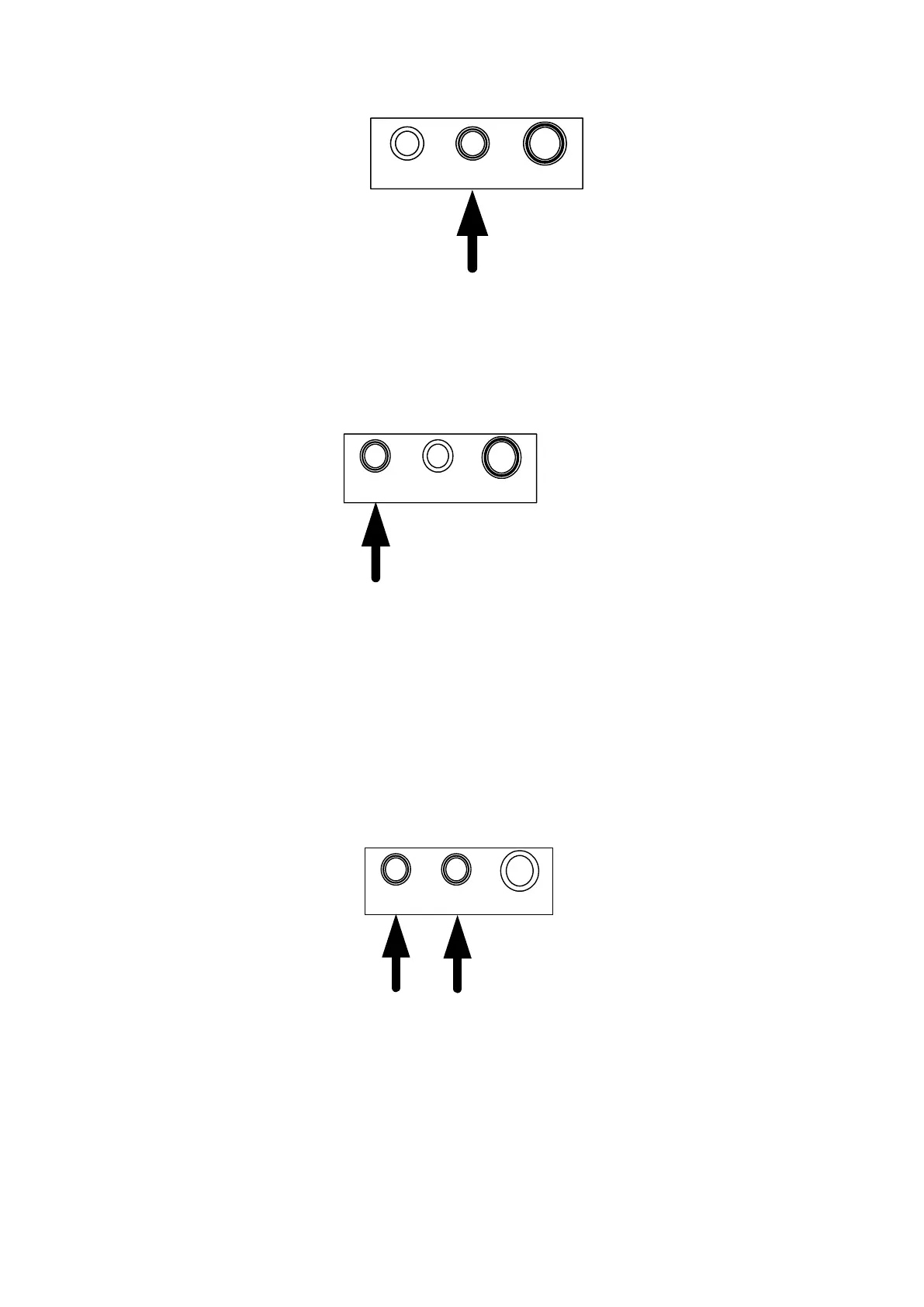

figure16. Local control schematic diagram
 Remote Control Function
 Procedure: hold "REMOTE" button for 10s. When “POWER” and "REMOTE" indicator
keep on, remote control mode starts.
POWER
LOCAL
REMOTE
figure17. Remote control schematic diagram
 Mandatory Charging Function
Procedure: hold both "LOCAL" and "REMOTE" buttons at the same time for 10s. When
"LOCAL", "REMOTE" indicators keep on, mandatory charging mode starts.
Only when the system is at local control mode could this function work.
 When entering mandatory or forced charging mode, MINI ES will automatically charge
the battery.
 When the battery has been fully charged, the MINI ES will shut down automatically.
POWERLOCALREMOTE
figure18. Mandatory charging schematic diagram
