Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
14
5.7 Configure Gateway ONUHGUService
Gateway ONUHGUcan provide internet,VOIP,IPTV service for FTTH,support PPPOE/DHCP
dial-up,NATIGMP.Because HGU have route function, ONU service need to be configured with the
local web or tr069,include wan and vlan configuration,dont need configure vlan in olt,only make sure
ONU can register to OLT.OLT dont support configure ONU route wan,specific configure as follows:
5.7.1 Configure Gateway ONUHGUInternet Service--RTK Solution
premise condition
OLT connect to uplink device and open service
OLT have created vlan for internet
OLT have configured GE port vlan
OLT have configured PON port vlan
ONU have registered

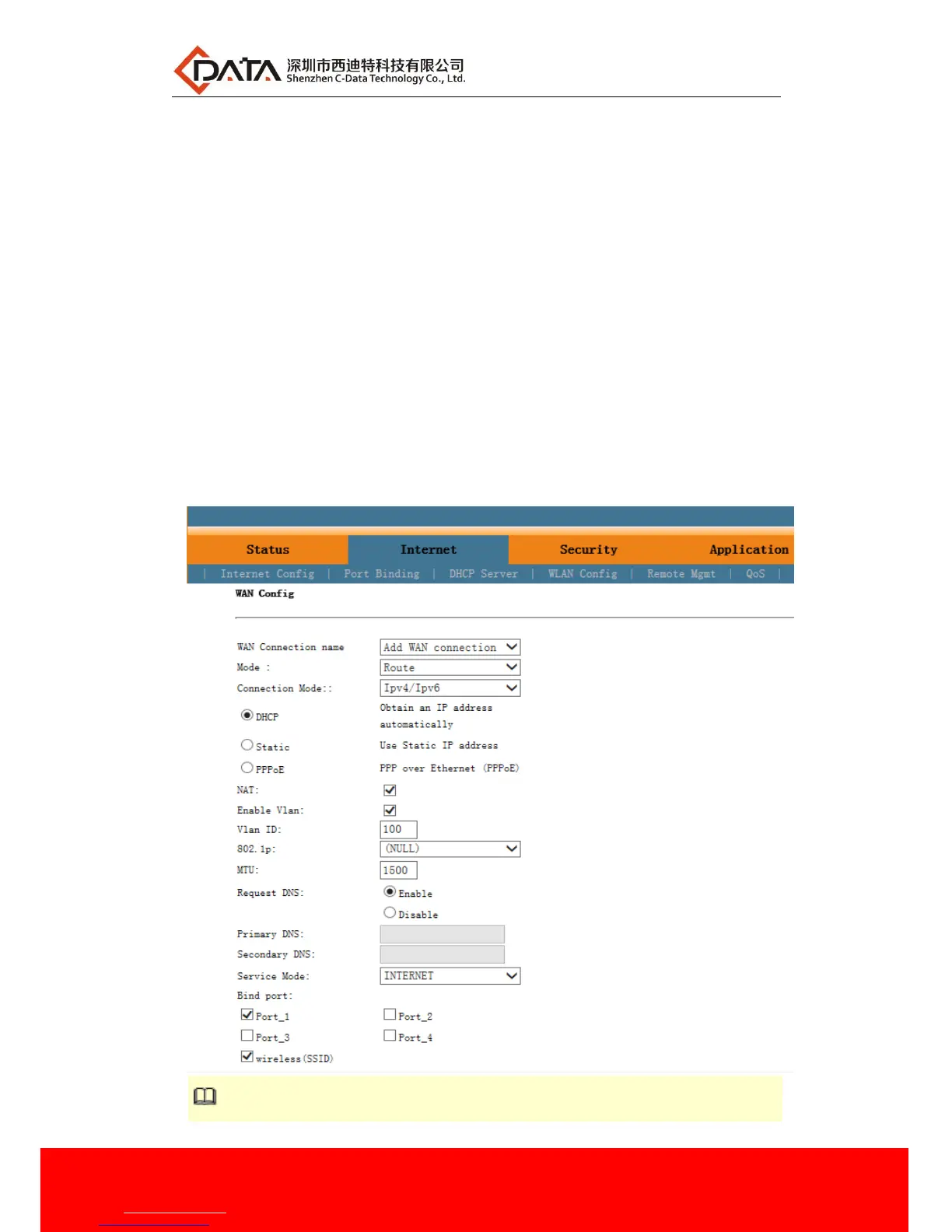

1.Create route wan and bind LAN1 in onu web
Click InternetInternet Config WAN Config
NOTE
