7.3 Configure OLT
Create outer vlan
Oprate show vlan all command can query the existing vlan,If the existing vlan does not meet the
need, we can use vlan command to create outer vlan.
OLT(config)# vlan 400
Configure GE port QinQ outer vlan
OLT(config)# interface ge 0/0
OLT(config-interface-ge-0/0)#vlan mode 8 hybrid
OLT(config-interface-ge-0/0)# vlan hybrid 8 tagged 400
OLT(config-interface-ge-0/0)# exit
Configure PON port QinQ outer vlan and PON port QinQ
OLT(config)# interface epon 0/0
OLT(config-interface-epon-0/0)#vlan mode 2 hybrid
OLT(config-interface-epon-0/0)#vlan hybrid 2 tagged 400
OLT(config-interface-epon-0/0)# vlan qinq 2 cvlan-range 1000 2000 400
OLT(config-interface-epon-0/0)# exit

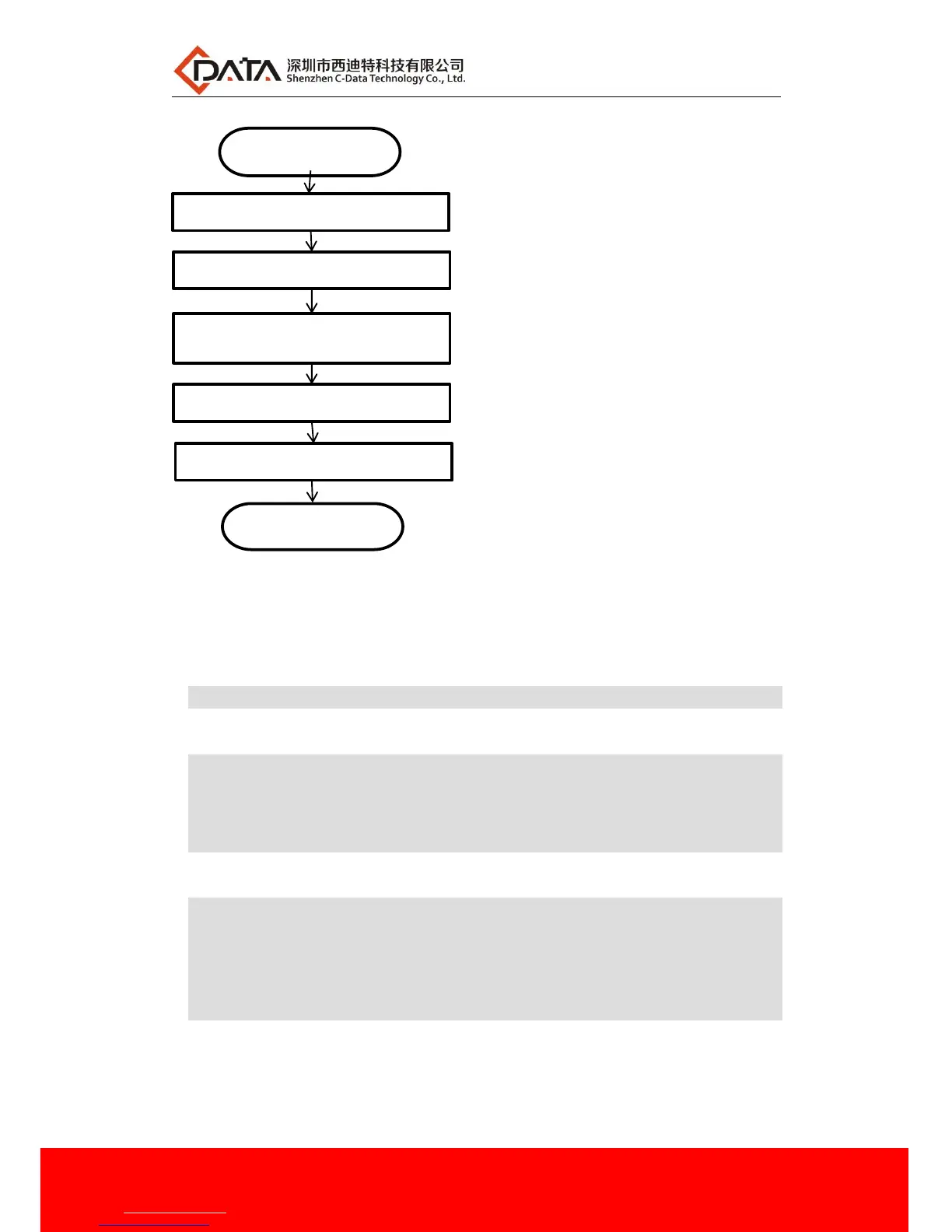

8 Common Command Description
Create OLT global vlan
Create Ge port vlan
Configure PON port QinQ
Create ONT vlan
Save configuration
Start
End
