13
4.1.2 Inserting a Media Strip into the Printhead
9 17
8 8 11
12
7
16
18
917
8 8 11
12
714
15
19
A4+M A4+T

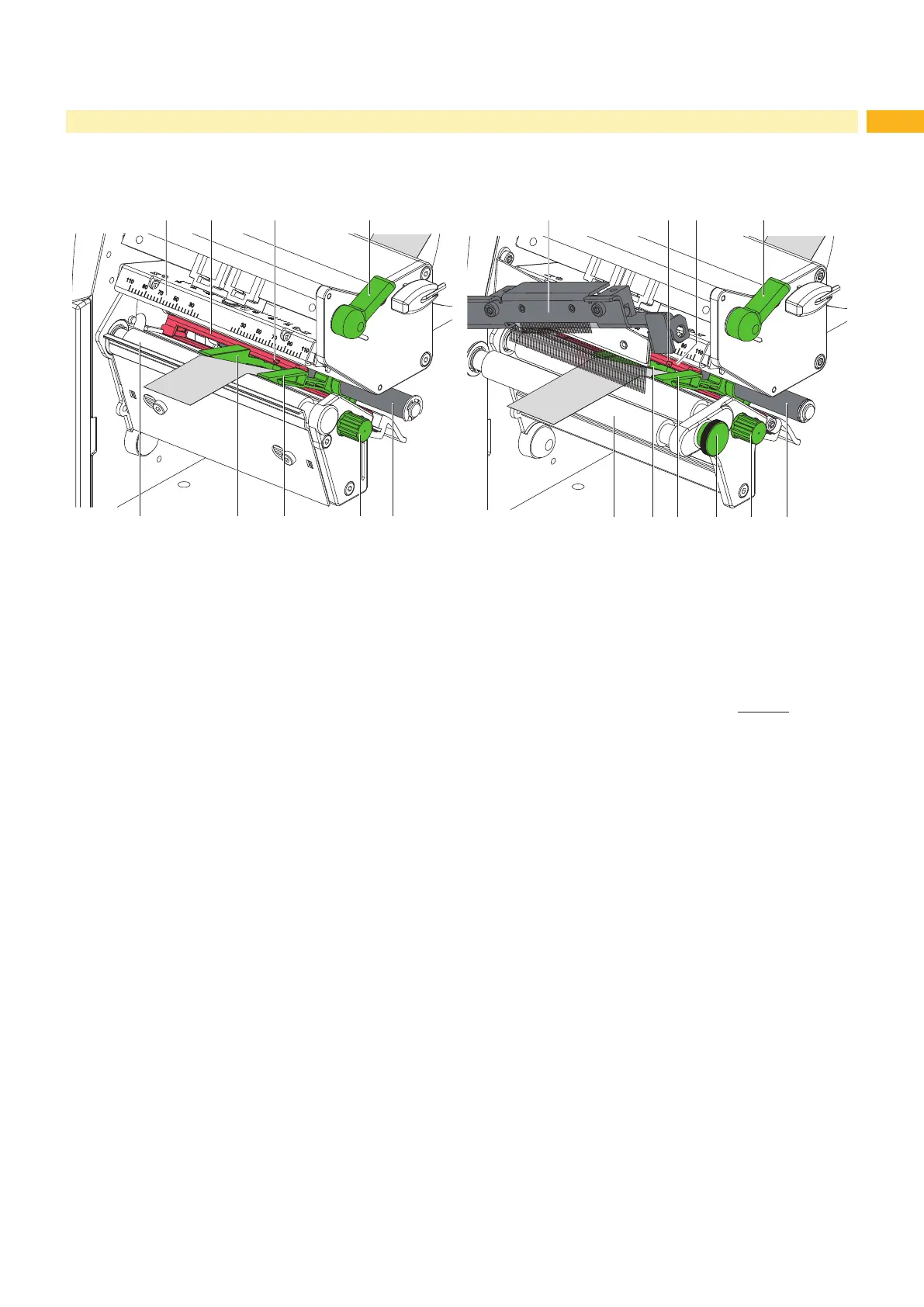

Fig. 9 Inserting a media strip into the printhead
1. Turn lever (12) counterclockwise to lift the printhead.
2. A4+T only : Pull the detent pin (14). The pressing roller system (15) will swing upwards.
3. Move guides (8) apart with the knob (11) until the media can pass between them.
4. Push media strip below the guide roller (7) between the guides (8).
5. Guide media strip through the label sensor (9) in such a way that it leaves the print mechanics (6, g 1) at A4+M
between printhead (16) and the print roller (18) respectively at A4+T between pressing roller system (15) and
pinch roller (19).
6. A4+T only : Pull the detent pin (14). Push the pressing roller system (15) downwards and lock it with the detent
pin.
7. Move guides (8) against the edges of the material by turning the knob (11).
4.1.3 Setting the Label Sensor
The label sensor (9) can be shifted perpendicular to the direction of paper ow for adaptation to the media. The
sensor unit of the label sensor is visible from the front through the print unit and is marked with an indentation (17) in
the label sensor retainer. When the printer is switched on, a yellow LED illuminates the sensor position.
Loosen the knurled knob (10, g 8) and position label sensor by moving the knurled knob in such a way that the
sensor can detect the label gap or a reex or cut-out mark.
- or, if the labels deviate from a rectangular shape, -
Align label sensor with the front edge of the label in the direction of paper ow.
Re-tighten the knurled knob.
Turn lever (12) clockwise to lock the printhead.
4 Loading Material
