23
8 Media
8.1 Media Dimensions
Labels Endless material

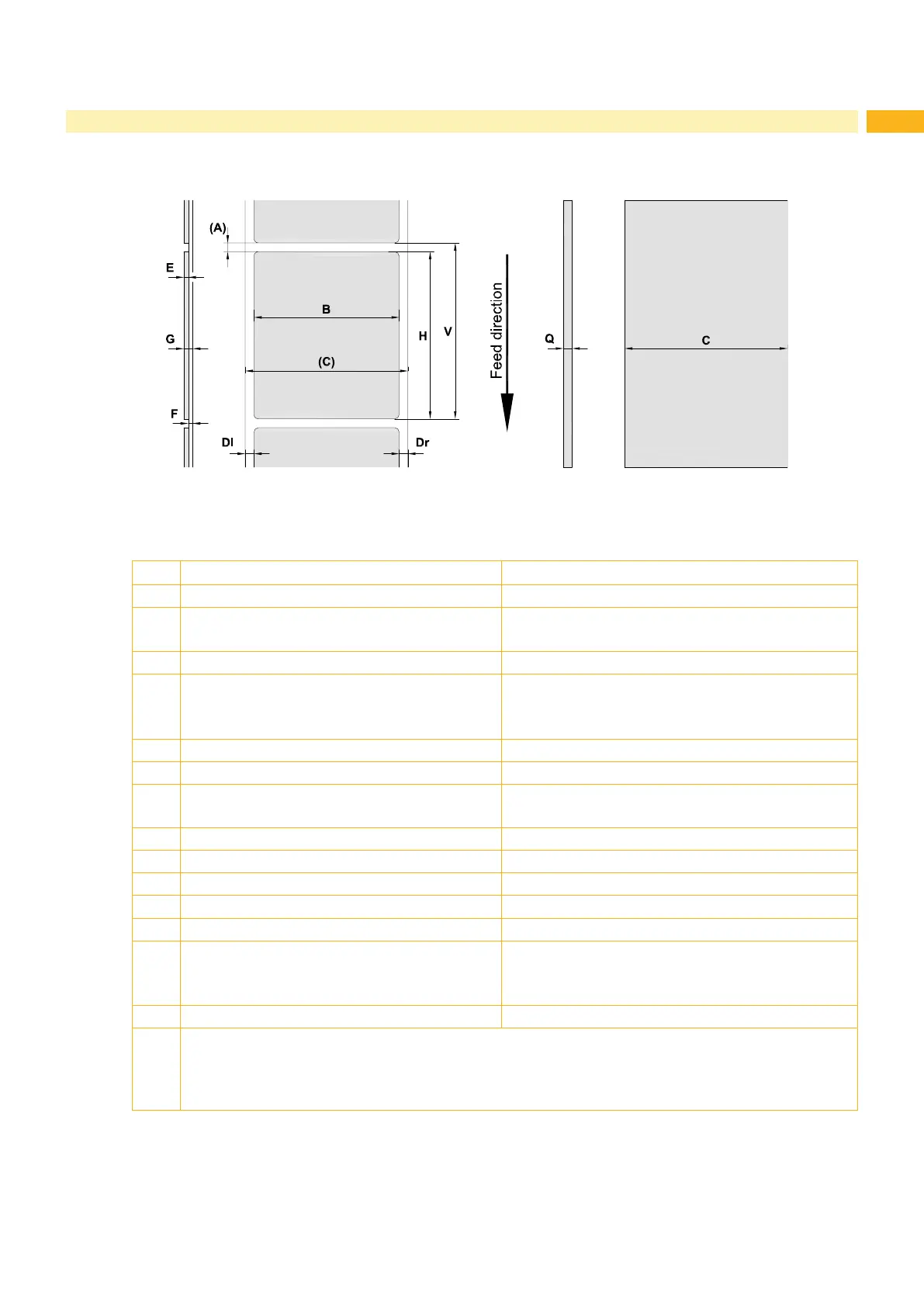

Fig. 15 Label / endless material dimensions
Dim. Designation Dim. in mm
B Label width 4 - 106
H
Label height with printhead 300 dpi
with printhead 600 dpi
5 - 4000
5 - 1000
- Tear-off length > 30
- Cut length
with cutter CU4
with perforation cutter PCU4
> 5
> 12
- Perforation length > 5
A Label distance > 2
C Width of liner or endless material
heat shrink tubing
10 - 110
3,5 - 110
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Label thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,8
Q Thickness endless material
heat shrink tubing (pressed)
heat shrink tubing (not pressed)
0,055 - 0,8
< 0,8
< 4,5
V Label feed > 7
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Note the bending stiffness ! Material must be exible to follow the radius of the print roller !
• For narrow materials a higher minimum thickness is required, e.g. Q = 0,4 at C = 5 !
Table 8 Label / endless material dimensions
