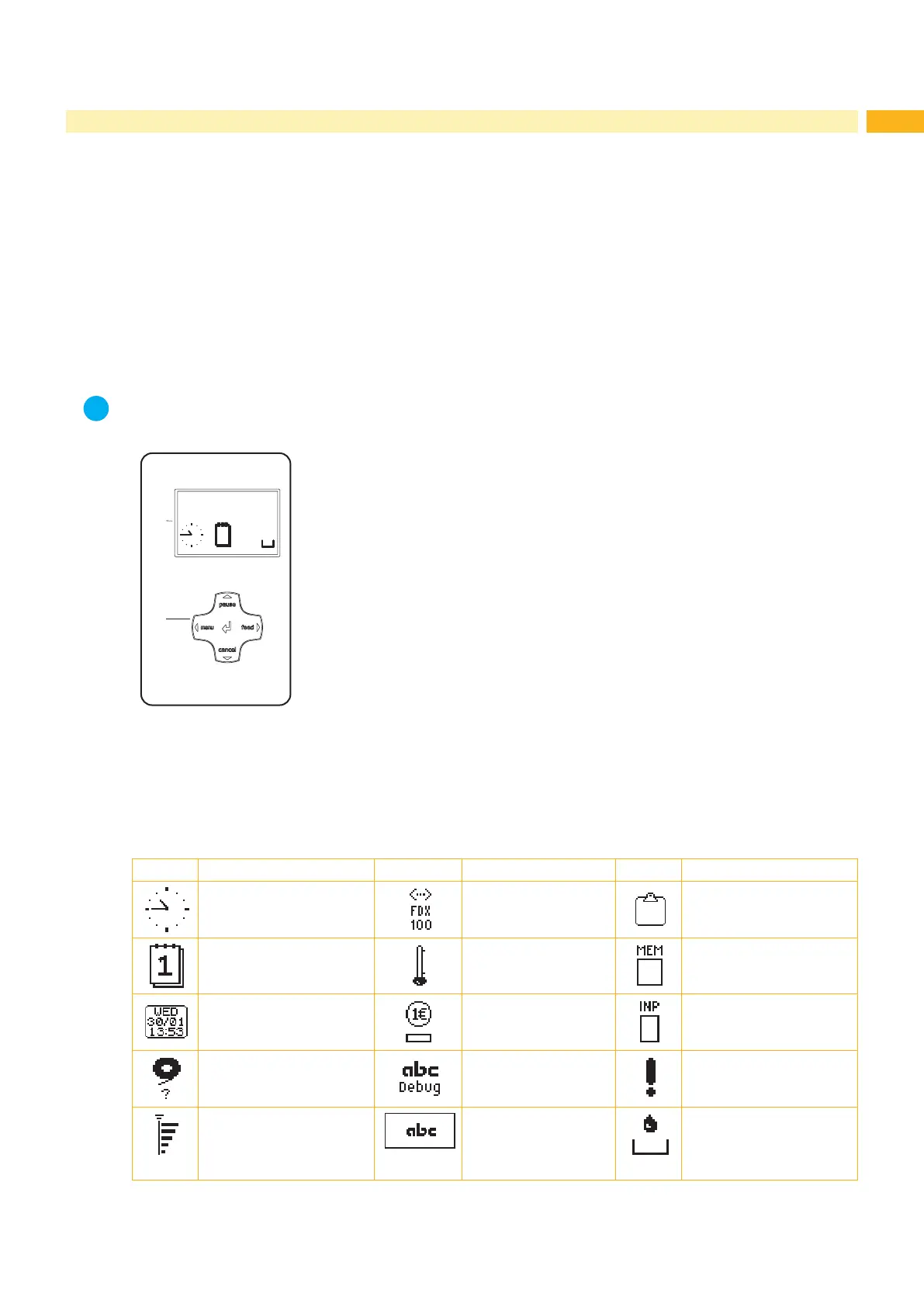

3.1 Structure of the Control Panel
The user can control the operation of the printer with the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs,
• Setting printing parameters, e.g. heat level of the printhead, print speed, interface conguration, language and
time of day ( Conguration Manual),
• Start the test functions ( Conguration Manual),
• Control stand-alone operation with a memory module ( Conguration Manual),
• Update the rmware ( Conguration Manual).
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer’s own commands.  Programming Manual for details.
Settings made on the control panel make the basic settings of the label printer.
i
Notice!
It is advantageous, whenever possible, to make adaptations to various print jobs in the software.
1
2
Ready
6
The control panel consists of a graphic display (1) and the navigator pad (2) with ve
integrated keys.
The graphic display indicates the current status of the printer and the print job,
indicates faults and shows the printer settings in the menu.
Fig. 5 Control Panel
3.2 Symbol Displays
The symbols shown in the following table may appear in the status line of the display, depending on the printer
conguration. They enable the current printer status to be seen quickly. For the conguration of the status line  the
Conguration Manual.
Symbol Description Symbol Description Symbol Description
Clock Ethernet link status User memory in the clock
circuit
Date sheet Temperature of the
printhead
Used memory
Date/time digital PPP funds Input buffer
Ribbon supply Debug window for abc
programs
Access to memory card
Wi-Fi signal strength Control of the lower
display line is handed
over to an abc
program
Printer is receiving data
Table 1 Symbol displays
