27cab Produkttechnik GmbH & Co KG
1
2
3
4
5
7
8
9 10
11
12
13
14
15
16
6
4. Printer Component Location

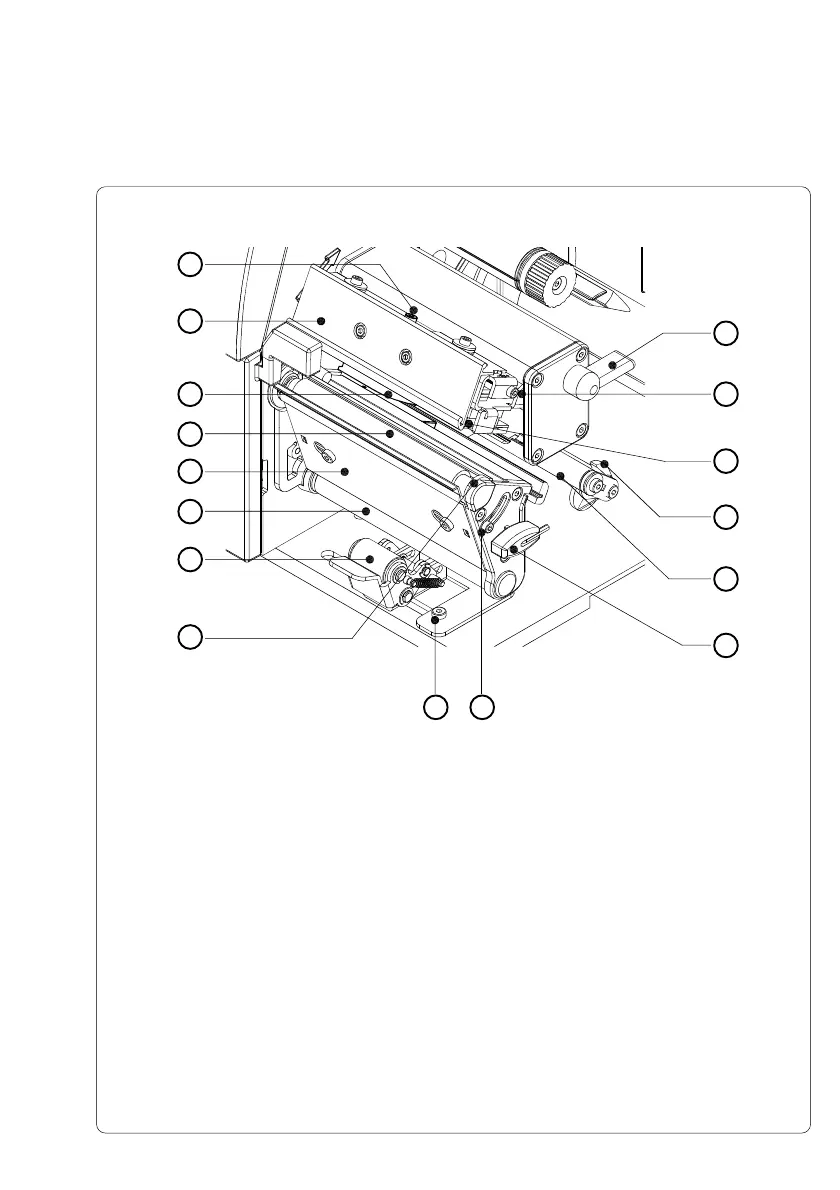

Fig. 4d Print mechanism P-Versions with printhead open
1 - Printhead locking screw
2 - Ribbon shield
3 - Label edge sensor
4 - Media feed roller
5 - Dispense plate
6 - Rewind assist roller
7 - Locking system
8 - Printhead support
9 - Screw for adjusting locking system
10 - Screw for adjusting printhead support
11 - Allen key
12 - Swing (A3: Guide axle)
13 - Media guide
14 - Thermal printhead
15 - Screw to adjust the ribbon shield
16 - Printhead lever
