9. To accommodate a variety of print jobs, the position of the label edge
sensor (3) can be adjusted until it is at the proper sensing position.
It is important to ensure that the sensor (14) itself (the position of which is
indicated by a notch in the sensor housing) is positioned so that the space
between the labels can be recognized by the photocell. In the case of
labels which have an unconventional shape (ie. not square or rectangular),
the photo cell should be positioned at the leading edge of the label.
Adjustment of the sensor is performed by sliding the handle (15) in and
out.
10. Lower the printhead by rotating the lever (7) counter-clockwise until it
locks.
11. When the printer is operated in rewind mode continue with point 12.
When the printer is operated in peel-off mode continue with point 13.

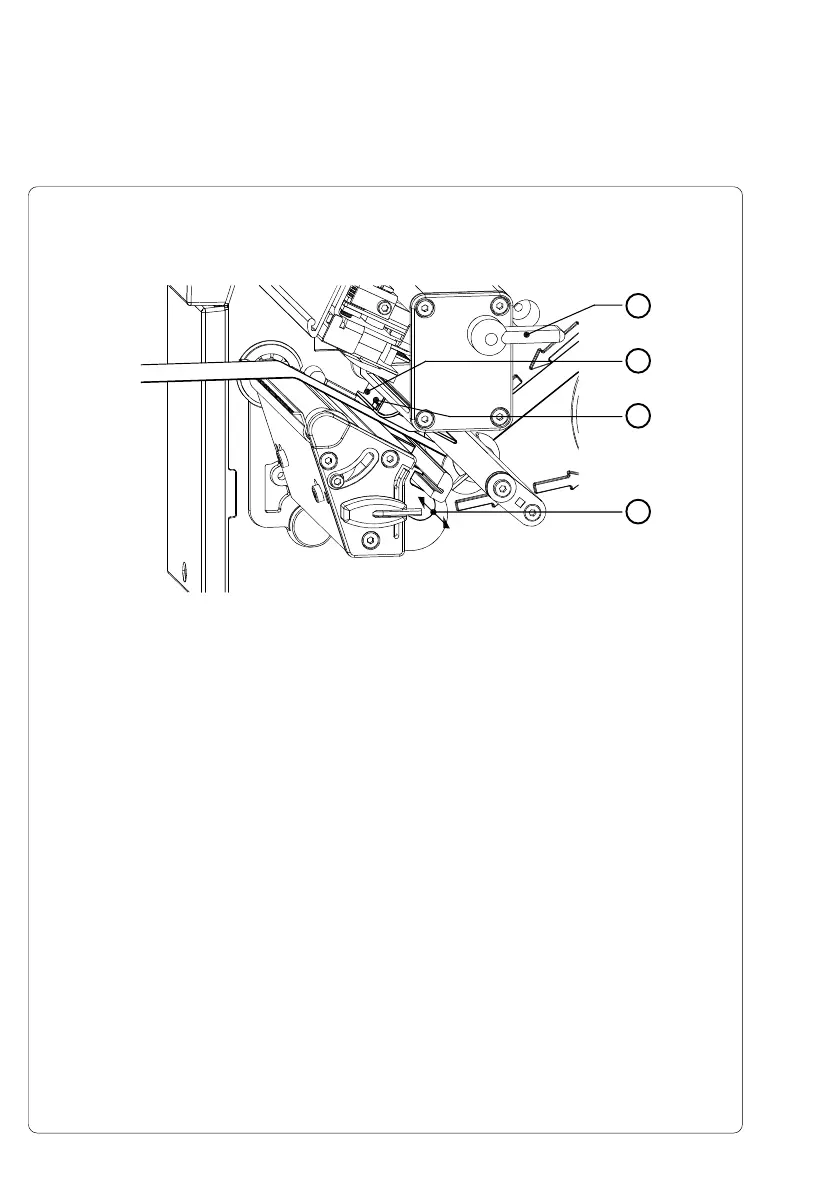

Fig. 7e Adjustment of the Label Edge Sensor
