45cab Produkttechnik GmbH & Co KG
13

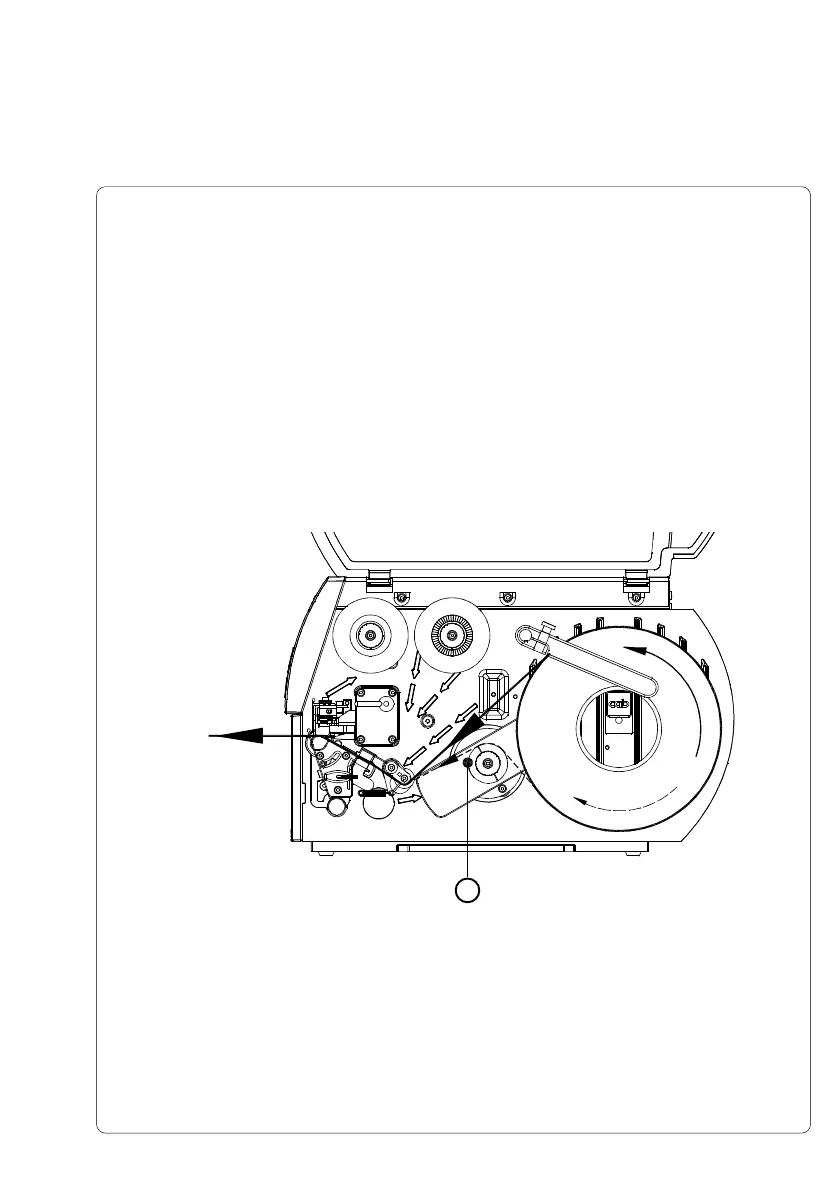

Fig. 7d Feed path in Tear-off Mode
8. Slide the media guide ring (6) inward until it lightly touches the side of the
media strip.
7. Media Loading
4. Swing the media retainer (11) downwards until it touches the media hub
(9). Push the media retainer against the supply role until it rests against
the label media. Tighten the knurled screw (10).
5. Raise the printhead assembly (2) by rotating the lever (7) clockwise until it
stops.
6. Slide the media guide ring (6) outward, allowing enough clearance for the
label stock's width when loaded.
7. Slide the media strip underneath the swing (5 / A3: axle) and through the
adjustable photocell assembly (3) until it comes out of the front of the
printer. If you are using labels that are wound-in, please make sure that
you slide the media strip over the internal rewind hub (13).
In figure 7d the feed path for labels wound-out is represented by a solid
line, and the feed path for wound-in labels is represented by a broken line.
