5 Adjustments
5.4.4 Adjusting the Distance of the Printhead from the Paper Guiding Edge
Not at HERMES Q with automatic ribbon saver
The purpose of the adjustment is the positioning of the rst printing dot 1 mm away from the paper guiding edge.
1

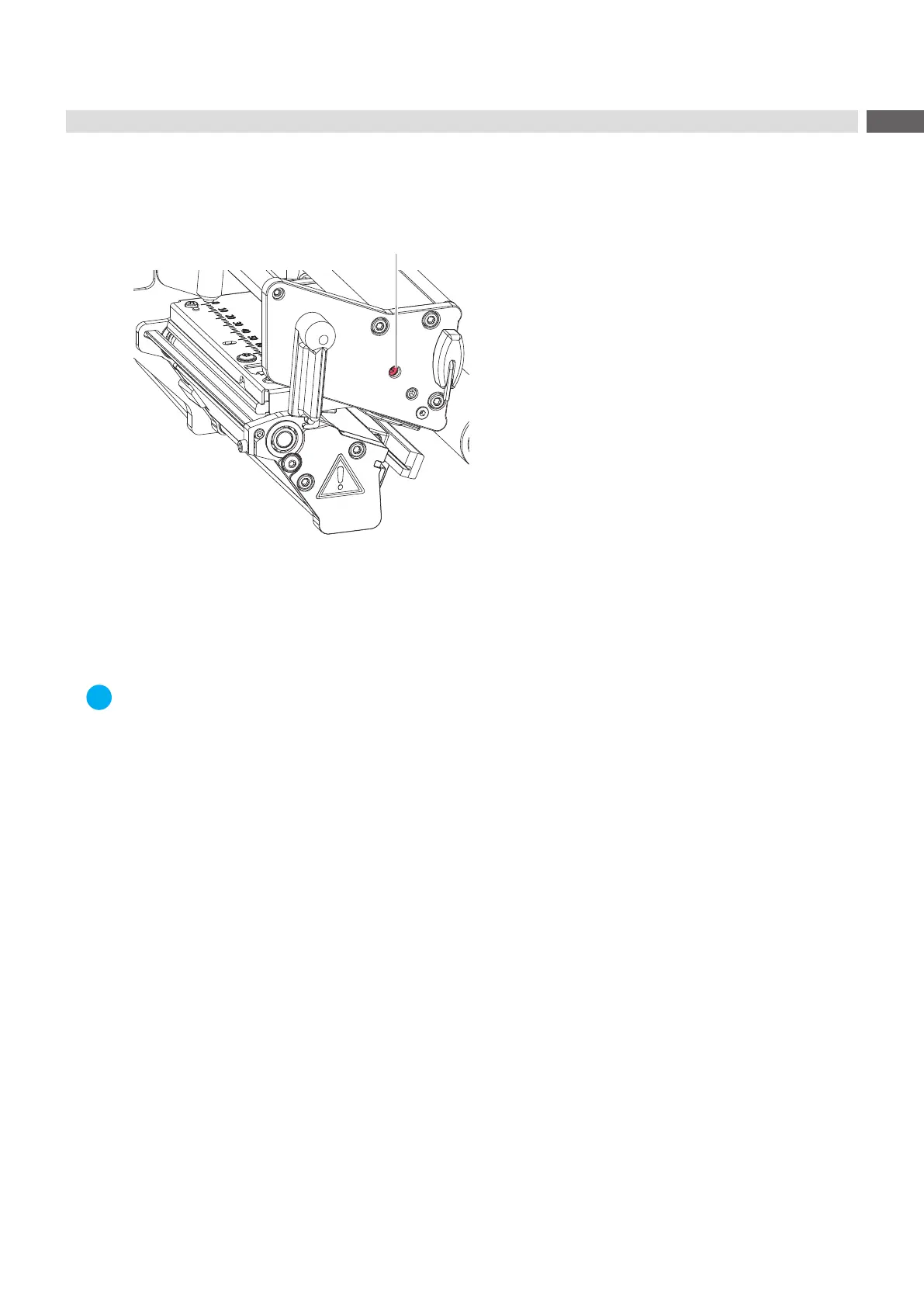

Figure 20 Adjusting the distance of the printhead to the paper guiding edge
1. Print labels with vertical lines at a dened X-position.
2. Measure the distance of the vertical lines from the edge of the media.
Set value: X + 1 mm.
3. If the measured value differs from the set value, shift the printhead carriage by turning the screw (1) and repeat
the measurement.
Note!
The screw (1) is accessible only when the printhead is closed.
