5 Adjustments
5.5 Adjusting the Tension at the Rewinder Belt and the Transport Roller Belt
Danger!
Risk of death via electric shock!
 Before opening the housing cover, disconnect the device from the mains supply and wait at least one
minute until the power supply unit has discharged.
2 3 4 6 7 81 5

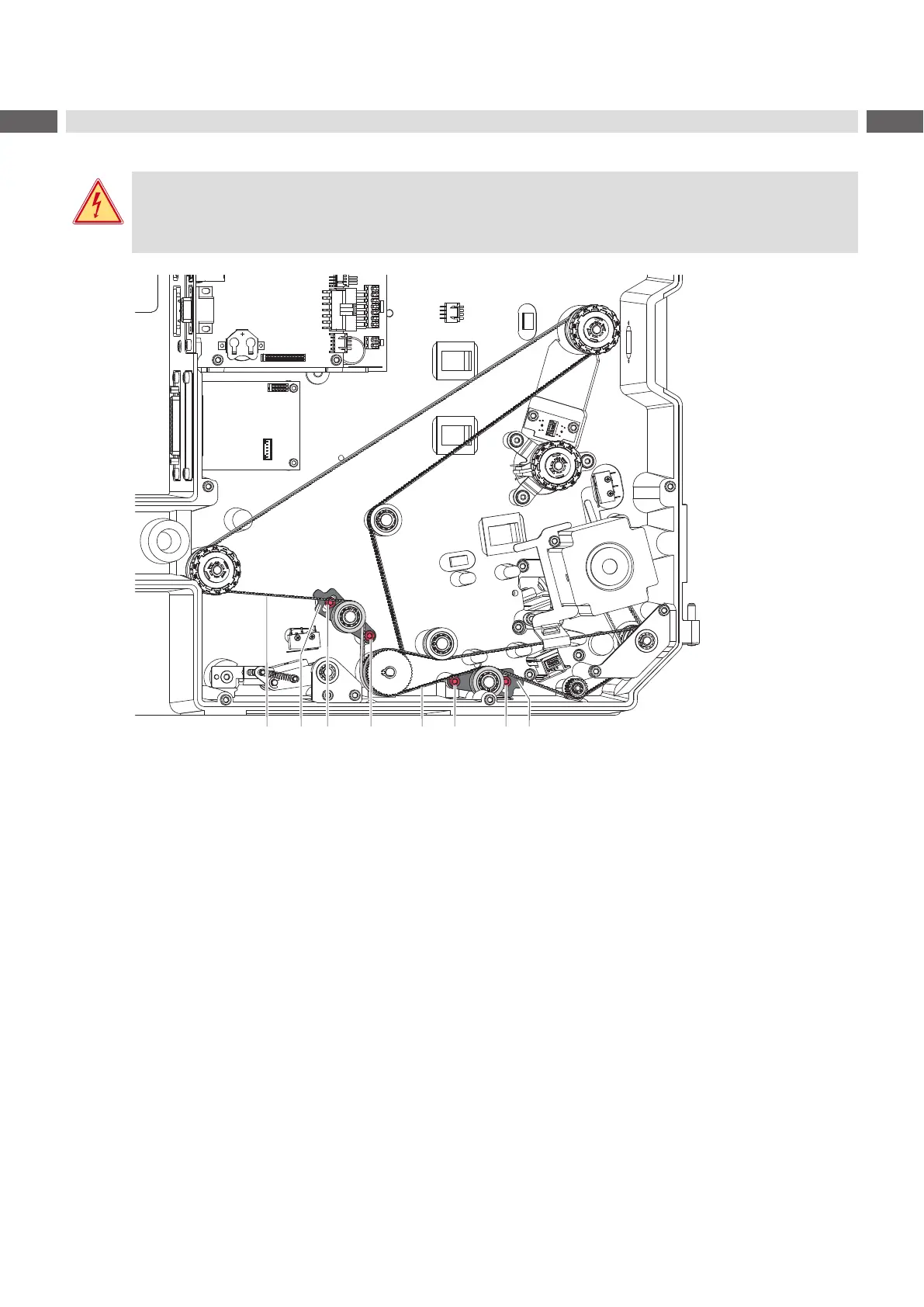

Figure 23 Adjusting the tension at the rewinder belt and the transport roller belt
1. Unplug the printer from the electrical outlet.
2. Remove the rear cover.
3. Adjusting the driver belt (1) for the rewinder :
• Loosen the screws (3,4).
• Swing the bracket (2) so that the belt (1) is tensioned tightly.
• Tighten the screws (3,4).
• If necessary further increase the tension.
4. Adjusting the driver belt (5) for the transport roller :
• Loosen the screws (6,7).
• Swing the bracket (8) so that the belt (5) is tensioned tightly.
• Tighten the screw (6,7).
5. Mount the rear cover.
