CAB HERMES Q4L Service Manual

25
5 Adjustments
5.4.4 Adjusting the Distance of the Printhead from the Paper Guiding Edge

Not at HERMES Q with automatic ribbon saver
The purpose of the adjustment is the positioning of the rst printing dot 1 mm away from the paper guiding edge.
1

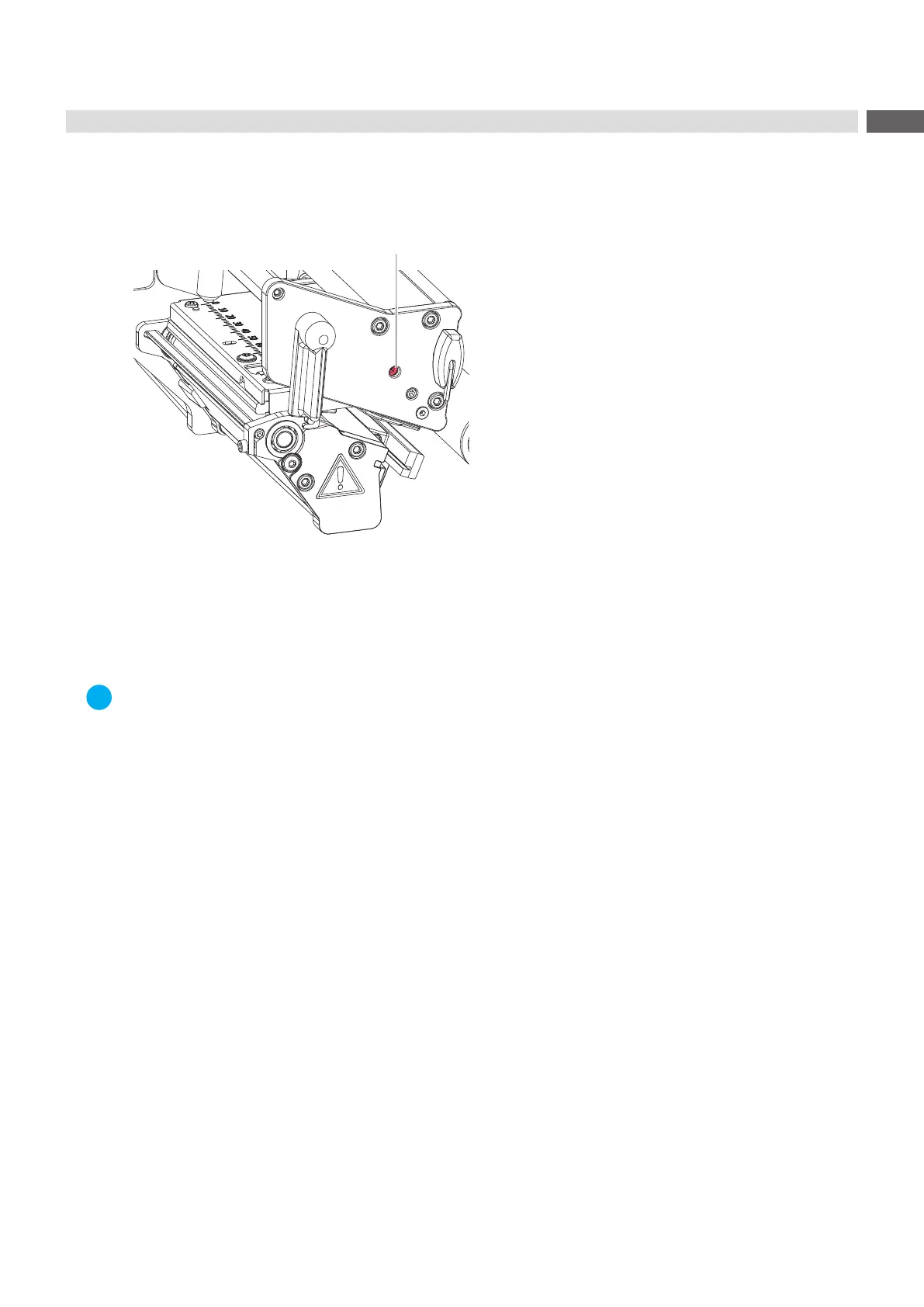

Figure 20 Adjusting the distance of the printhead to the paper guiding edge
1. Print labels with vertical lines at a dened X-position.
2. Measure the distance of the vertical lines from the edge of the media.
Set value: X + 1 mm.
3. If the measured value differs from the set value, shift the printhead carriage by turning the screw (1) and repeat
the measurement.
i
Note!
The screw (1) is accessible only when the printhead is closed.
