Hi Flow Stroller
Repair Procedures
X
RP3 – Condensate Pad R/R
a. Unzip bottom case zipper.
b. Remove condensate pad and wring out any absorbed mois-
ture. Allow pad to dry completely or dispose (if pad will not
be reused).
c. Replace condensate pad and rezip condensate cup.
RP4 – Soft Case R/R
a. Remove strap from the top of the unit.
b. Unzip the top and side zippers.
c Carefully remove the unit from case.
d. To replace, reverse the above steps
CAUTION: Be careful not to pinch wires!

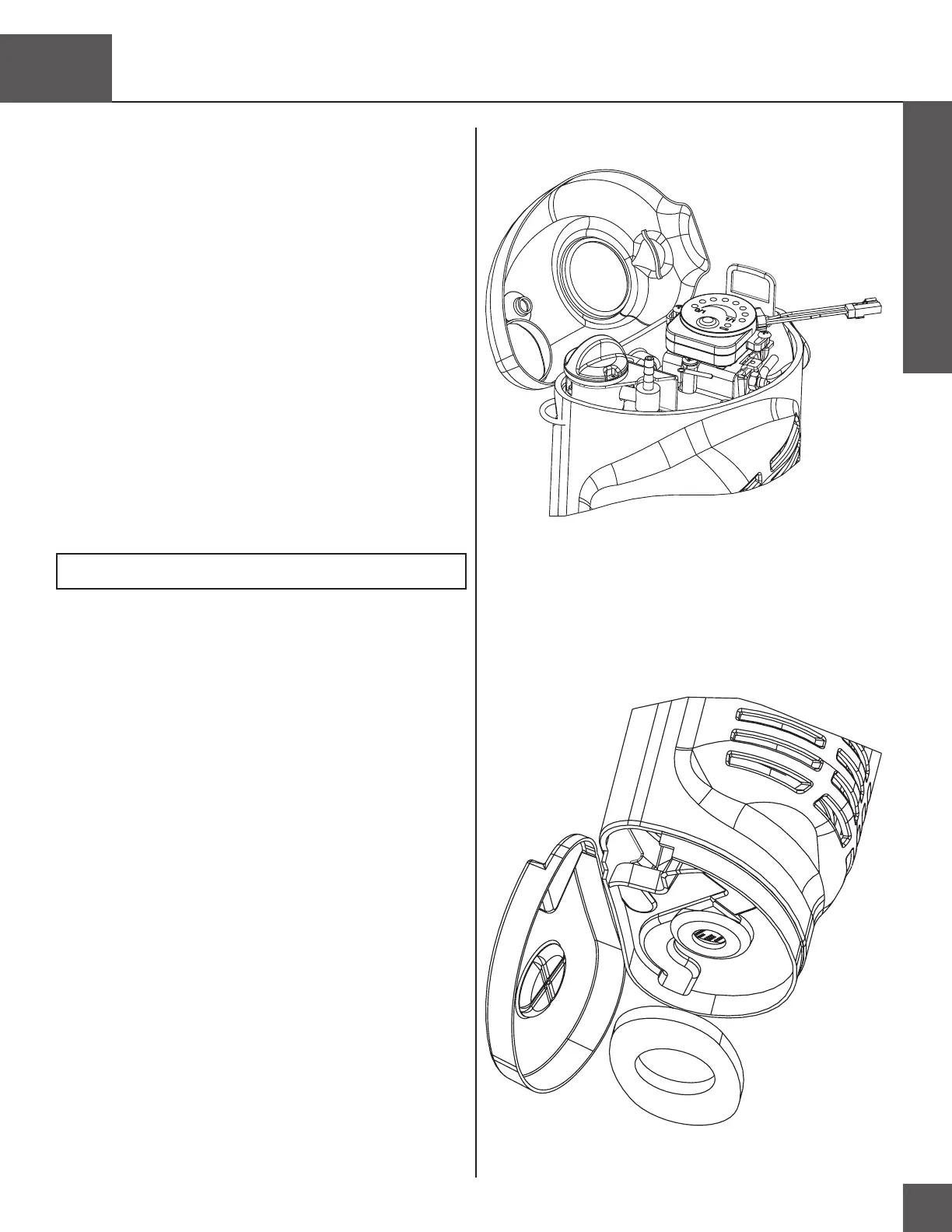

FIGURE 7: Top Cover Assembly
FIGURE 8: Bottom and Side Cover
