Cake Makka Range - Checking that the Rear Shock Bolts Are Tightened; Checking that the Rear Swing Mount Is Fastened

A
A
Checking that the rear shock bolts are tightened
Tool: Allen key 6mm, wrench 13mm.
.
1. Check that the 2 rear shock bolts (A), holding the frame and swing are tightened.
2. Perform a test drive to check for loose parts.
Checking that the rear swing mount is fastened
Tool: Allen key 6mm, 8mm.
1. Remove the battery.
2. Check that the first swing screw is tightened by doing the following:
I. Loosen the 2 swing arm screws. Use Allen key 6mm.
II. Tighten the through screw to 30Nm. Use Allen key 8mm.
III. Tighten the 2 swing arm screws to 20Nm. Use Allen key 6mm.
Ensure the swing arm clamp has equal spacing.
3. Check that the second swing screw is tightened by repeating steps I-III above.
4. Perform a test drive to check for loose parts.

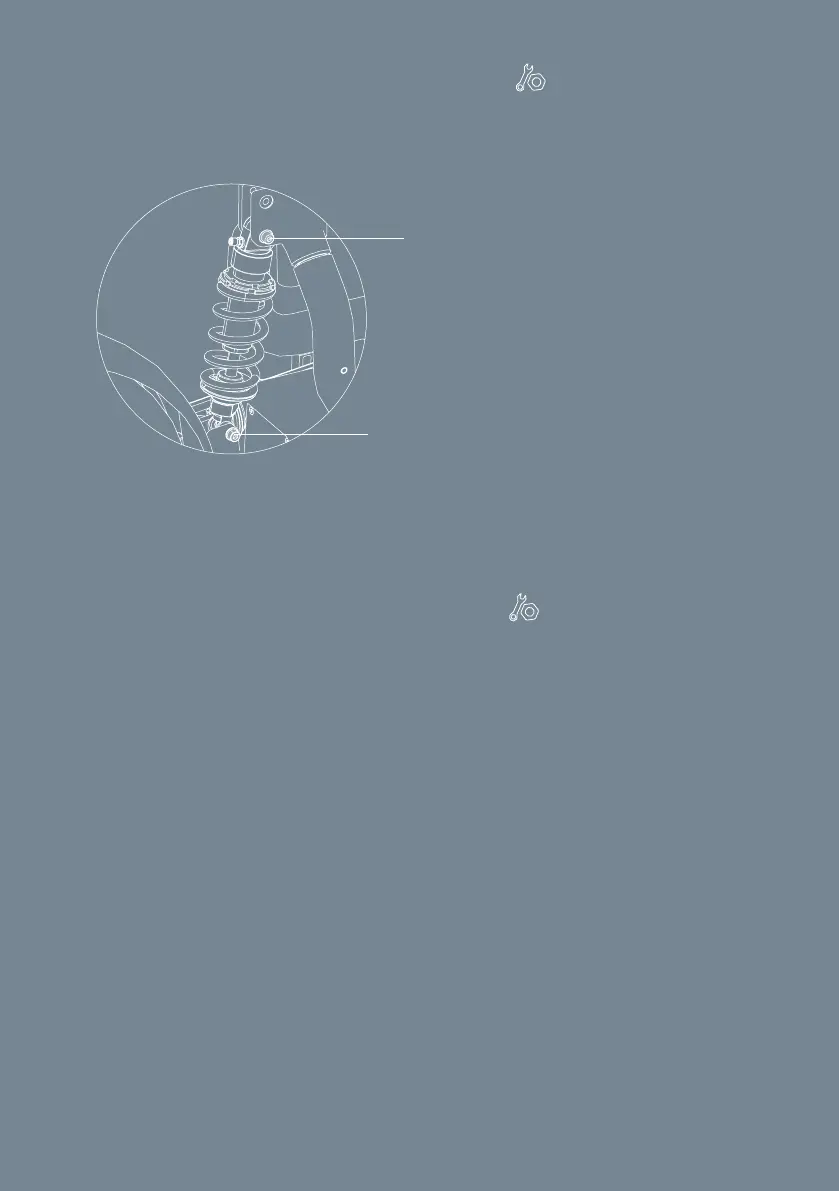

Fig. 19
Rear shock bolts
