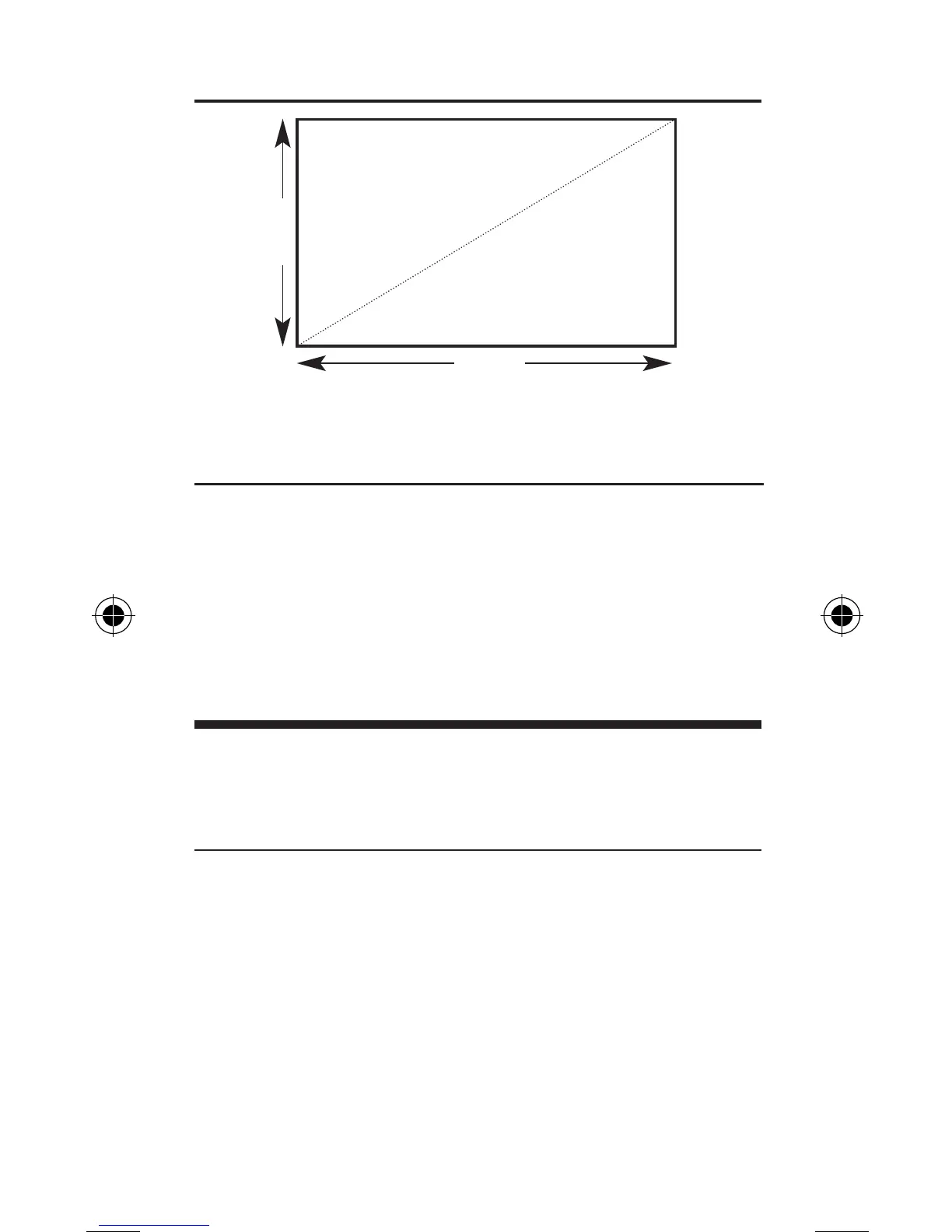

Squaring-Up a Foundation
3.1 m
Square-Up (Diagonal)
4.75 m
Square-Up 4.75 m (Run) x 3.1 m (Rise):
KEYSTROKE DISPLAY
oo 0.
4.75mR RUN 4.750 M
3.1mr RISE 3.100 M
d DIAG 5.672 M
PITCH — CONvERTING ROOF ANGLE
Find the % Grade, Slope and Pitch in mm if
the roof angle is 30.25°:
KEYSTROKE DISPLAY
oo 0.
30.25p PTCH 30.25°
p %GRD 58.31828
p SLP 0.583183
p PTCH 7 INCH
M 177.7541 MM
