DESCRIPTION!

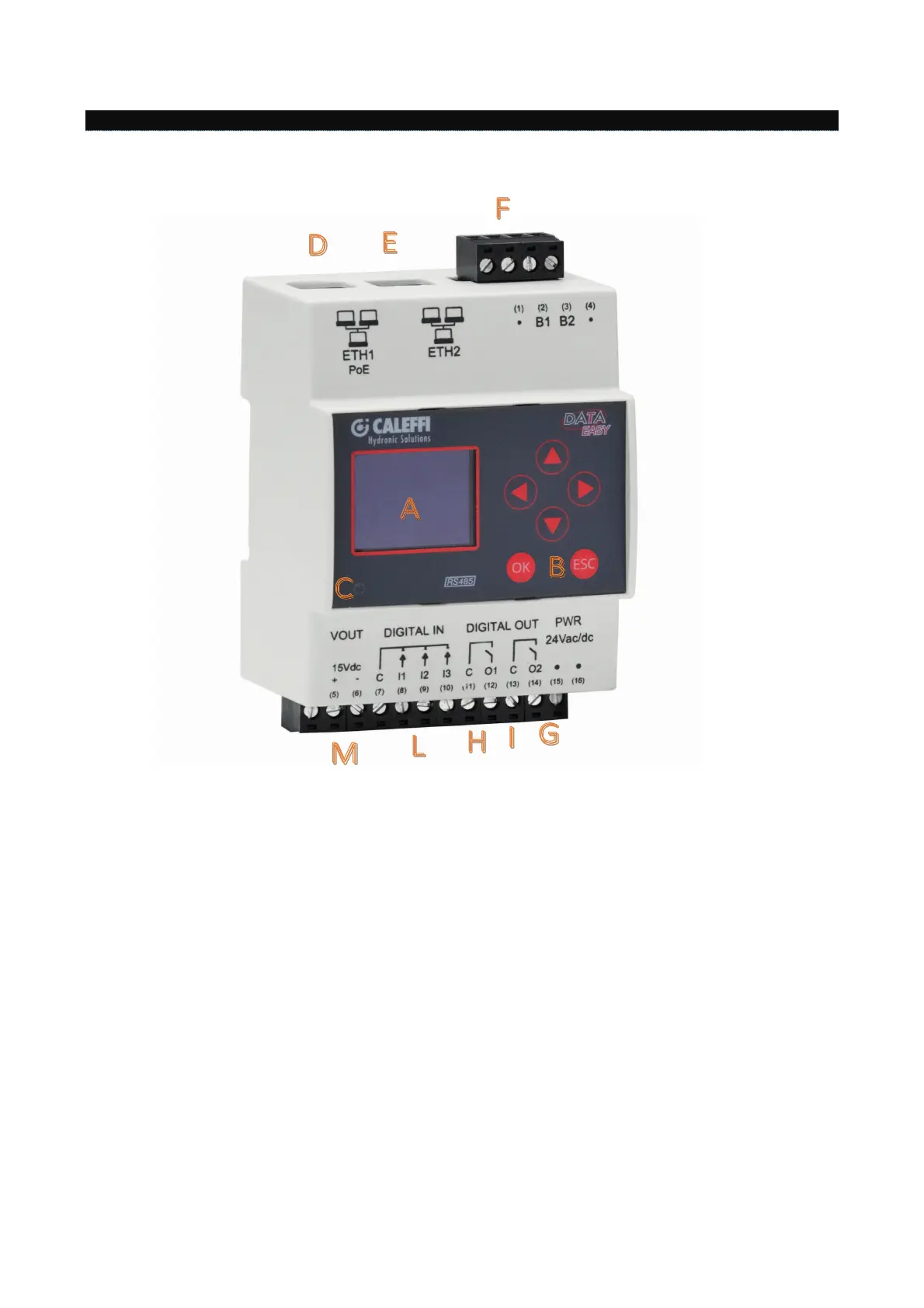

The!DATA!EASY!device!is!shown!below!with!all!the!main!parts!identified:!
A. Display
B. Navigation!keypad
C. Operating!status!LED
D. Ethernet!port!1!(PoE)
E. Ethernet!port!2
F. RS485!Bus!connector
G. Electric!supply!connector
H. Relay!output!connector!1!(Normally!open!contact)
I. Relay!output!connector!2!(Normally!open!contact)
L. Digital!inputs!connector
M. Auxiliary!voltage!output!connector
