Installation Manual
PPT8/12/16/22LX/LY SLIMLINE
SD638150 ISSUE 11
®
MODEL Units PPT8 PPT12 PPT16 PPT22
HEAT TO POOL WATER
AMBIENT 10°C, WATER 24°C kWh 7.2 9.9 12.4 17.7
AMBIENT 20°C, WATER 24°C kWh 9.2 12.5 15.6 22.4
ELECTRICITY
ELECTRICAL SUPPLY 1 PHASE
ELECTRICAL SUPPLY 3 PHASE
TOTAL POWER CONSUMED
AMBIENT 10°C, WATER 24°C kWh 1.8 2.3 2.6 4.1
AMBIENT 20°C, WATER 24°C kWh 2.0 2.5 2.8 4.3
MIN SUPPLY CAPACITY (Max F.L.A.) 1 ph N:- A 14.0 17.0 19.8 31.0
MIN SUPPLY CAPACITY (Max F.L.A.) 3 ph N:- A 6.0 6.4 8.0 13.0
RECOMMENDED SUPPLY FUSE 1 ph N:- A 20.0 25.0 30.0 42.0
RECOMMENDED SUPPLY FUSE 3 ph N:- A 10.0 10.0 15.0 20.0
WATER FLOWS ETC
POOL WATER FLOW RATE:- L/min 75 75 125 167
POOL WATER PRESSURE DROP (@ Rated Flow):- m hd 0.1 0.1 0.1 0.6
MAX WORKING PRESSURE POOL WATER:- bar 2.5 2.5 3.5 3.5
POOL WATER CONNECTIONS:- inches
CONDENSATE DRAIN CONNECTIONS:- inches
COMPRESSOR
NOMINAL POWER CONSUMED kWh 1.6 2.35 2.6 3.8
L.R.A. 1 ph N:- A 62 62 103 136
R.L.A. 1 ph N:- A 11.5 13.1 15.8 25
SOFT START AMPS 1 ph N:- A 28 28 34 37
L.R.A. 3 ph N:- A 32 30 48 48
R.L.A. 3 ph N:- A 4 4.7 7.3 10
SOFT START AMPS 3 ph N:- A 14 14 25 25
MAIN FAN
AIR FLOW (Anemometer @ air on grille. Dry evaporator):- m³/h 2200 3300 3500 4100
F.L.A. 1 ph N:- A 0.82 0.82 0.82 0.82
GENERAL DATA
HERMETIC SYSTEM
GAS CHARGE R407c kg 1.9 2.5 5.0 6.0
SOUND PRESSURE LEVEL @3m AIR ON dbA 53 54 53 54
SOUND PRESSURE LEVEL @3m AIR OFF dbA 57 55 55 56
SOUND PRESSURE LEVEL @3m SID E dbA 50 47 48 52
SOUND POWER dbA 69.9 67.3 68.2 67.8
*PHYSICAL DIMENSIONS
*WIDTH (Unpacked):- mm 1264 1264 1264 1264
*DEPTH (Unpacked):- mm 594 594 600 600
*HEIGHT (Unpacked):- mm 725 725 725 904
WEIGHT (Unpacked):- ALX kg 91 96 113 119
WEIGHT (Unpacked):- BLX kg - 96 118 119
WEIGHT (Packed):- ALX kg 110 119 142 143
WEIGHT (Packed):- BLX kg 110 119 140 143
FOR ACCUR ATE APPLICATION SIZING CONSULT CALOREX HEAT PUMPS LTD
400V/~3N/ 50Hz
1 1/2" or 50mm Fem ale
3/4" DOMESTIC WASTE
230V/~1N/ 50Hz
NOTES
1) Weight and dimensions nett. * DIMENSIONS INCLUDE WATER IN/OUT STUBS AND MAINS IN CABLE GLAND.
2) Performance design limitations: Ambient = 5ºC min 40ºC max, Water = 10ºC min, 40ºC max.
3) Pool water to have correct balance, pH 7.2-7.8, Free Chlorine 1.0 - 2.0ppm domestic, 3.0 - 6.0 commercial.
4) Allow 500mm clearance to service panels.
5) Calorex reserve the right to change or modify models without prior notice.
6) R407c Global warming potential (GWP) 1700.
1mm WG = 9.8 Pa
1mhd = 1.4 psi
1l/min = 0.22gall/min

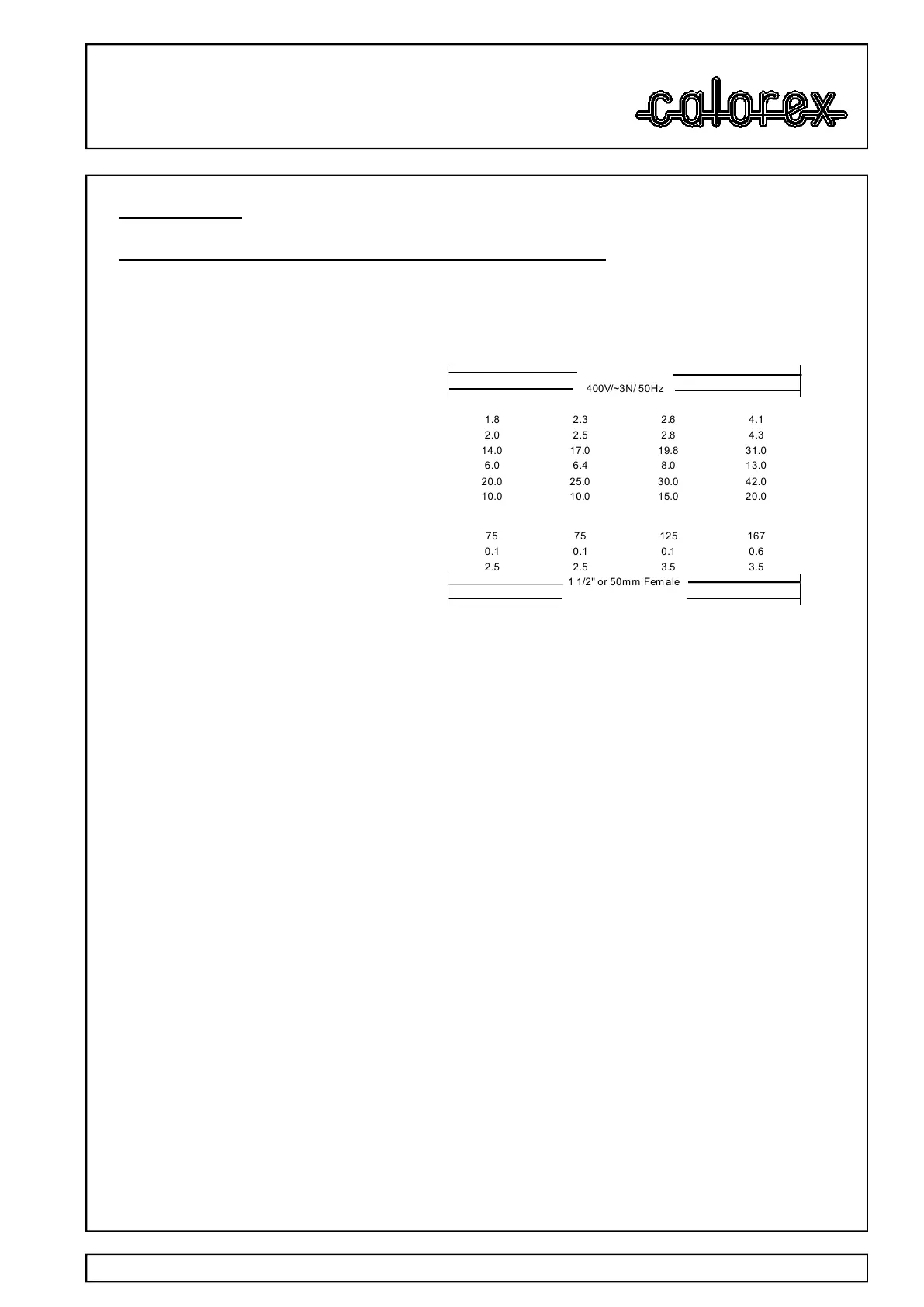

9.0 Datasheets
HEAT PUMPS FOR OUTDOOR POOLS SUMMER SEASON (ALX/BLX)
