4 INSTALLATION
4.11 Fill valve flow restrictor guidelines: The side entry fill valve must be fitted
with the correct filter and flow restrictor combination (dependant on the
mains water pressure) into the G ½ threaded tail as outlined below:
Coloured insert - To be used for water pressure between 1 and 4 bar
White insert - To be used for water pressure above 4 bar
4.12 Cold mains feed connection: The connection to the cold water mains inlet is
made using the 15 mm compression flexible hose supplied. Ensure the rubber
sealing washer supplied with the hose is installed when the hose is fitted.
When tightening ensure the fill valve within the tank is not rotated. If the valve
is rotated it may not function correctly with the risk of flooding. The hose is made
water tight with a sealing washer on assembly, nip tight to 4 to 5 Nm for
water tight seal. (Do not overtighten). See Fig. 6.

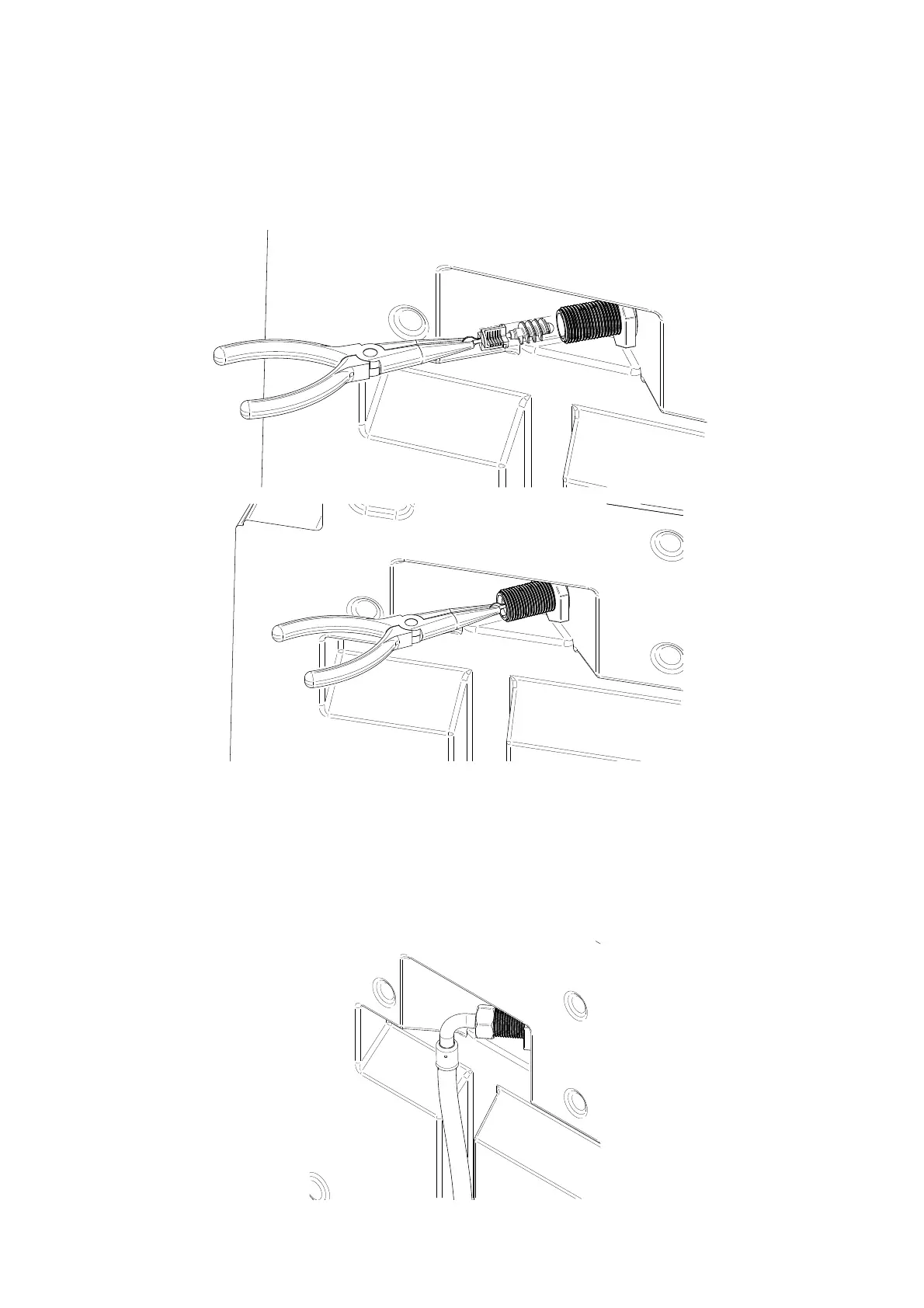

Fig. 4
Fig. 5
Fig. 6
