The unit is fitted with an internal re-settable fuse, see Section 11.
5.26 Supply cord replacement:
The supply cord and internal wiring within the terminal
box are routed and secured to ensure compliance with the
electrical standard EN 60335-1. It is essential that prior to
any disturbance of this internal wiring, all cable routing and
securing details are carefully noted to ensure re-assembly to
the same factory pattern is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Calpeda Ltd or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to
the same pattern.
For information on cable connection consult the wiring diagram.
4) Re-insert connector into the correct location on the control board and route
the cable to the back of the unit and secure with a cable tie to the retainer.
Model Fuse Size (AMPS)
All models 5
5.24 RS 485 Modbus – BMS Connection:
RS 485 is available on this product for BMS connection and is enabled in the
Advanced settings menu.
5.25 Fuses: The following fuse size should be used:

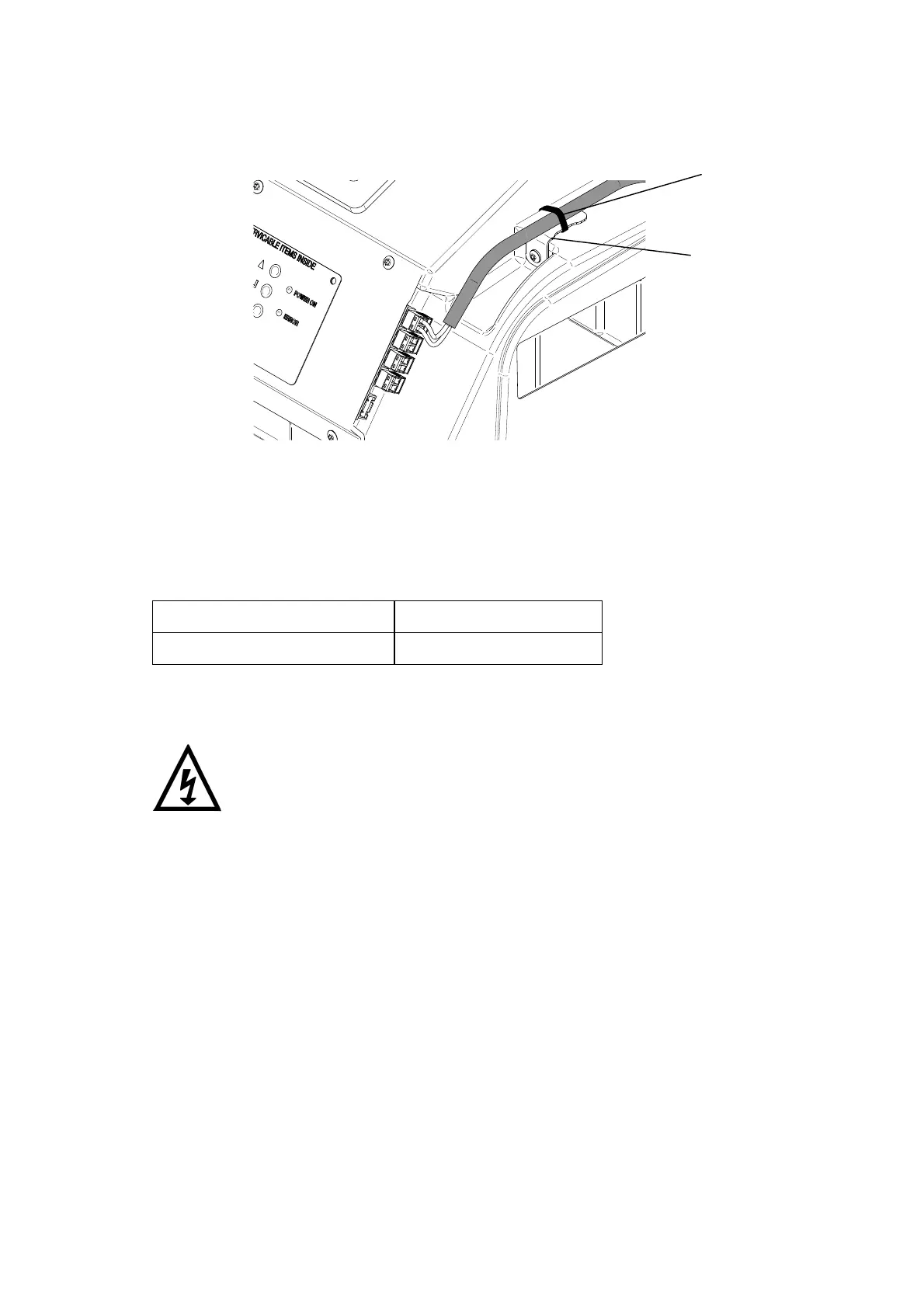

Fig. 19
Retainer
Cable tie
To Next Page
