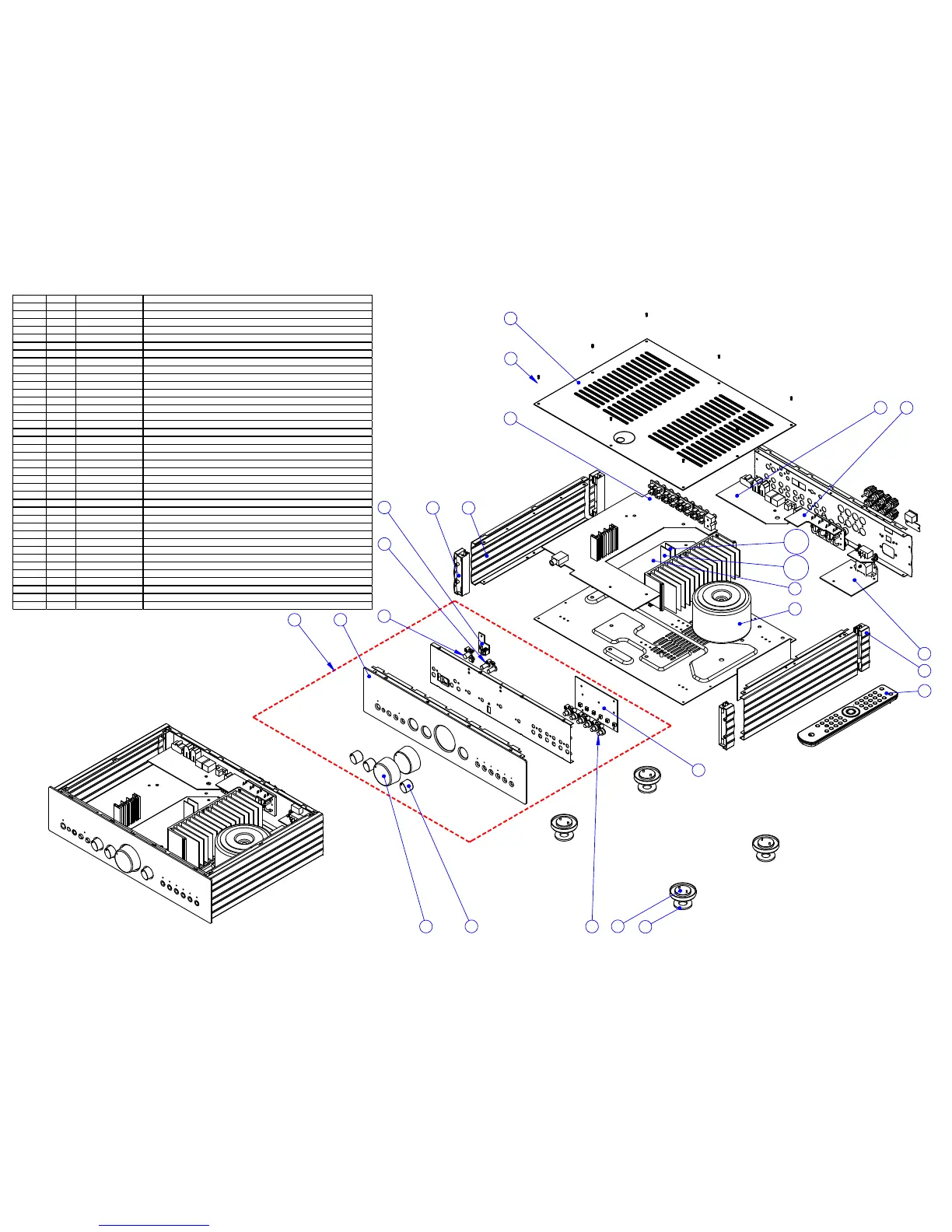

Drawing ref AP Part Factory part number Description
1 PY687 6560-150001-000A VOLUME KNOB ALUMINIUM SKIN AP133601 SILVER (use with PY680+PY681)
1 PY686 6560-150001-000 VOLUME KNOB ALUMINIUM SKIN AP133601 BLACK (use with PY680+PY681)
2 PY592 6050-150004-002-02 Azur-640A SELECTOR KNOB SILVER
2 PY593 6050-150004-002-01 Azur-640A SELECTOR KNOB BLACK
3 PY719 6050-150012-000-01 7MM TAC SWITCH BUTTON (BLACK)
3 PY720 6050-150012-000A01 7MM TAC SWITCH BUTTON (SILVER)
4 6050-150013-000A01 7MM PUSH SWITCH BUTTON SILVER FOR Azur-640A
4 6050-150013-000 7MM PUSH SWITCH BUTTON BLACK FOR Azur-640A
5 6050-117821-000-02 Azur-640A CONTROL BOX BUTTON SILVER
5 6050-117821-000-01 Azur-640A CONTROL BOX BUTTON BLACK
6 PY541 6050-150010-000A01 PLASTIC FOOT SILVER
6 PY531 6050-150010-000 PLASTIC FOOT BLACK
7 PY544 6600-170100-000 FOOT PAD FOR AZUR RANGE
8 PY1058 3200-076771E000 115/230V 30V*2/3A 17V*2/0.4A Azur-540A V2 AP175704
9 PY1032 6550-150017-001-02 LARGER SIDE PANEL SILVER PAINTED
9 PY1033 6550-150017-001-01 LARGER SIDE PANEL BLACK PAINTED
10 PY1034 6550-150037-000-02 V2 AMP TOP PANEL SILVER PAINTED
10 PY1035 6550-150037-000-01 V2 AMP TOP PANEL BLACK PAINTED
11 PY1036 8554-015010-701 LARGER SUPPORT FRONT ASSY (WITH TWO BRASS INSERTS)
12 PY1037 8554-015020-701 LARGER SUPPORT REAR ASSY (WITH TWO BRASS INSERTS)
13 PY1059 8554-015001-302 Azur-540A V2-Silver AMP FRONT PANEL ASSY
13 PY1060 8554-015011-302 Azur-540A V2-Black AMP FRONT PANEL ASSY
14 PY1040 9464-015002-041 Azur-640A/540A V2 PIC CONTROL BOARD ASSY REV A
15 PY1041 9464-015002-171 Azur-640A/540A V2 POWER SWITCH PCB REV A
PY1042 9464-015002-191 Azur-640A/540A V2 LED PCB ASSY REV A
16 PY1061 9454-015002-071 Azur-540A V2 POWER INPUT BOARD ASSY REV A
17 PY1062 9454-015002-091 Azur-540A V2 AMP POWER PCB ASSY REV A
18 PY1045 9464-015002-001 640A/540A V2 PROTECTION CIRCUITRY PCB-A ASSY REV A
19 PY1046 9464-015002-101 640A/540A V2 PROTECTION CIRCUITRY PCB-B ASSY REV A
20 PY1047 9464-015002-331 Azur-640A/540A A-Bus hub PCB ASSY REV A
21 PY1048 9464-015002-341 Azur-640A/540A V2 INPUT PCB ASSY REV A
22 PY1049 9464-015002-541 Azur-540A/640A V2 SPEAKER CONN. BOARD ASSY REV A
23 PY944 9805-054010-001 AZUR-540A/C,640A/C V2.0 REMOTE CONTROL ASSY REV A
PY945 6040-150002-000-01 BATTERY-DOOR FOR Azur R/C BLACK PAINTED
24 PY1056 6550-150021E001A03 AZUR 540A V2.0 FRONT PANEL-Silver (Metal only)
24 PY1054 6550-150021E001-03 AZUR 540A V2.0 FRONT PANEL-Black (Metal only)
25 PY515 7002-608010-001 Screw M2.6 x 8 M/C Torx Recessed 1/K Head Black
25 PY516 7002-608010-006 Screw M2.6 x 8 M/C Torx Recessed 1/K Head En-Plated
PY1051 5100-641500E300 AZUR 540A/640A V2 USER'S MANUAL (AP183031)
