2 FACILITIES
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.8
USER MANUAL
VORTEX 6, 4, 2.6 and 200V
P.9

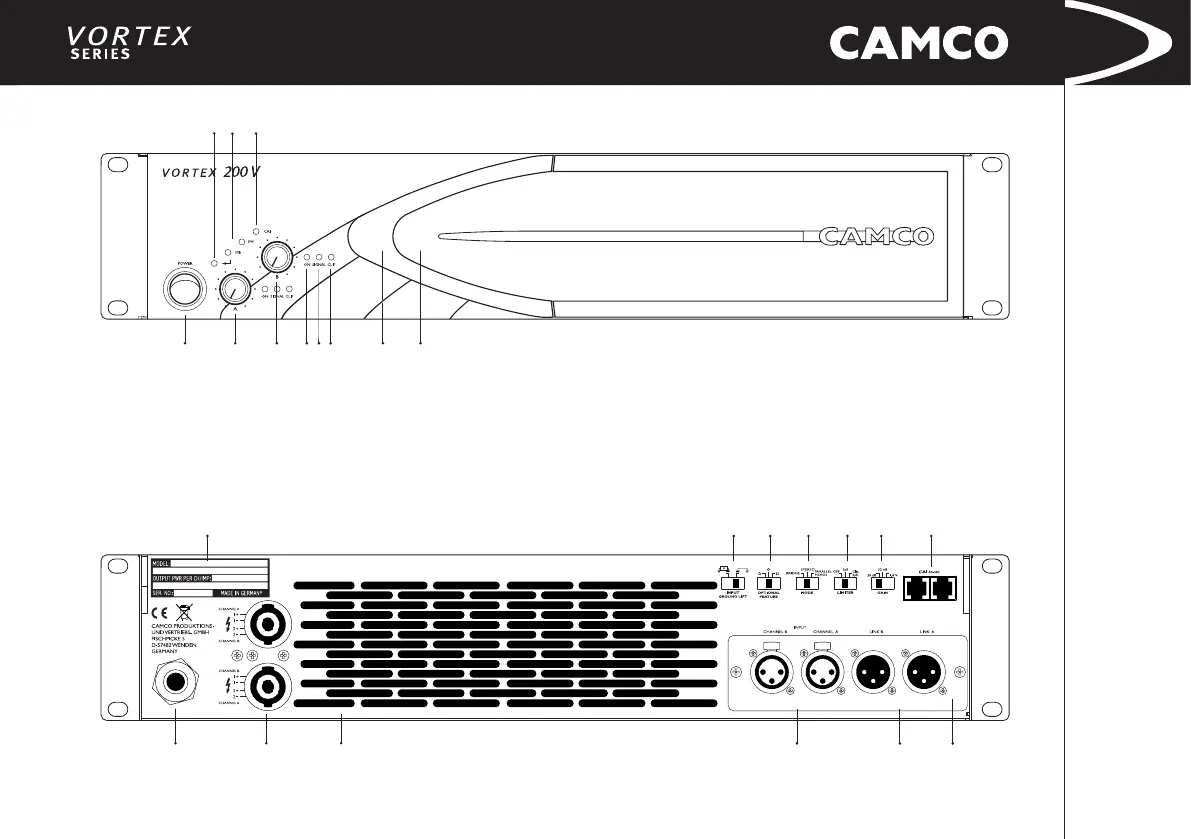

2.1 VORTEX – The Front
1 On/Off Switch
2 Volume Control – Channel A
3 Volume Control – Channel B
4 On LEDs (multifunctional)
5 Signal LEDs
6 Clip LEDs (multifunctional)
7 Removable Air Filter System
8 Cooling Air Inlet Vents
9 Enter-Switch (behind Front Panel)
10 Operating Mode LEDs
11 CAI Status LED
2.2 VORTEX – The Rear
12 AC Power Cable
13 CAMCO Audio Interface (CAI)
14 SPEAKON Outlets
15 Cooling Air Outlet Vents
16 Input Ground Lift Switch
17 Optional Feature Selector
18 Mode Selector
19 Limiter Switch
20 Gain Selector
21 Extended User Interface (E.U.I.)
22 XLR – Line Links
23 XLR – Line Inputs
24 Rating Plate
To Next Page
