CAME 840CH-0130 - Page 11

Page 11 - Manual - FA01792-EN - 10/2022 © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

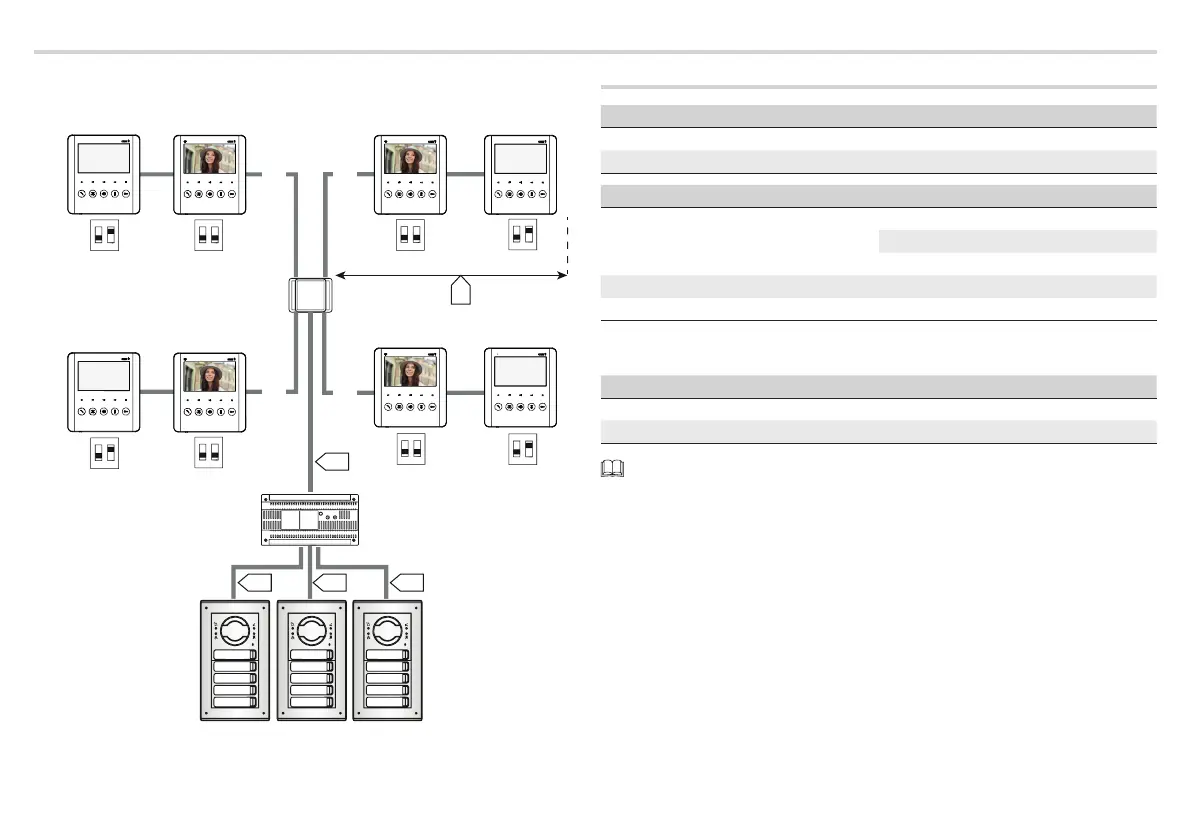

Example set-up with VA/01
L1 L2 L3
Lb
La
1
2
PLX V Wi-Fi
1
2
PLX V Wi-Fi
XDV/304
VA/01
1
2
PLX V Wi-Fi
SLAVE
PLX V Wi-Fi
1
2
ON
KIT
1
2
KIT
KIT
KIT
SLAVE
SLAVE
SLAVE
1
2
ON
1
2
ON
1
2
ON
1
3
42
Cable length
Section Cable type
La, Lb VCM/1D or UTP CAT5
L1, L2, L3 VCM/2D
Section Maximum section length
La + Lb
100 with VCM/1D
30 with UTP CAT5
L1 + L2 + L3 300
La + Lb + L1 (L2, L3) 150
La + Lb + L1 + L2 + L3 600
Maximum number of internal receivers per cable type
VCM/1D UTP CAT5
Wi-Fi PLX V (MASTER) 11
SLAVE RECEIVERS 11
The SLAVE receiver is a generic low-consumption receiver. The closing resistor must
be activated on the last one in the row.
