2.0 11/2011
© 11/2011 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

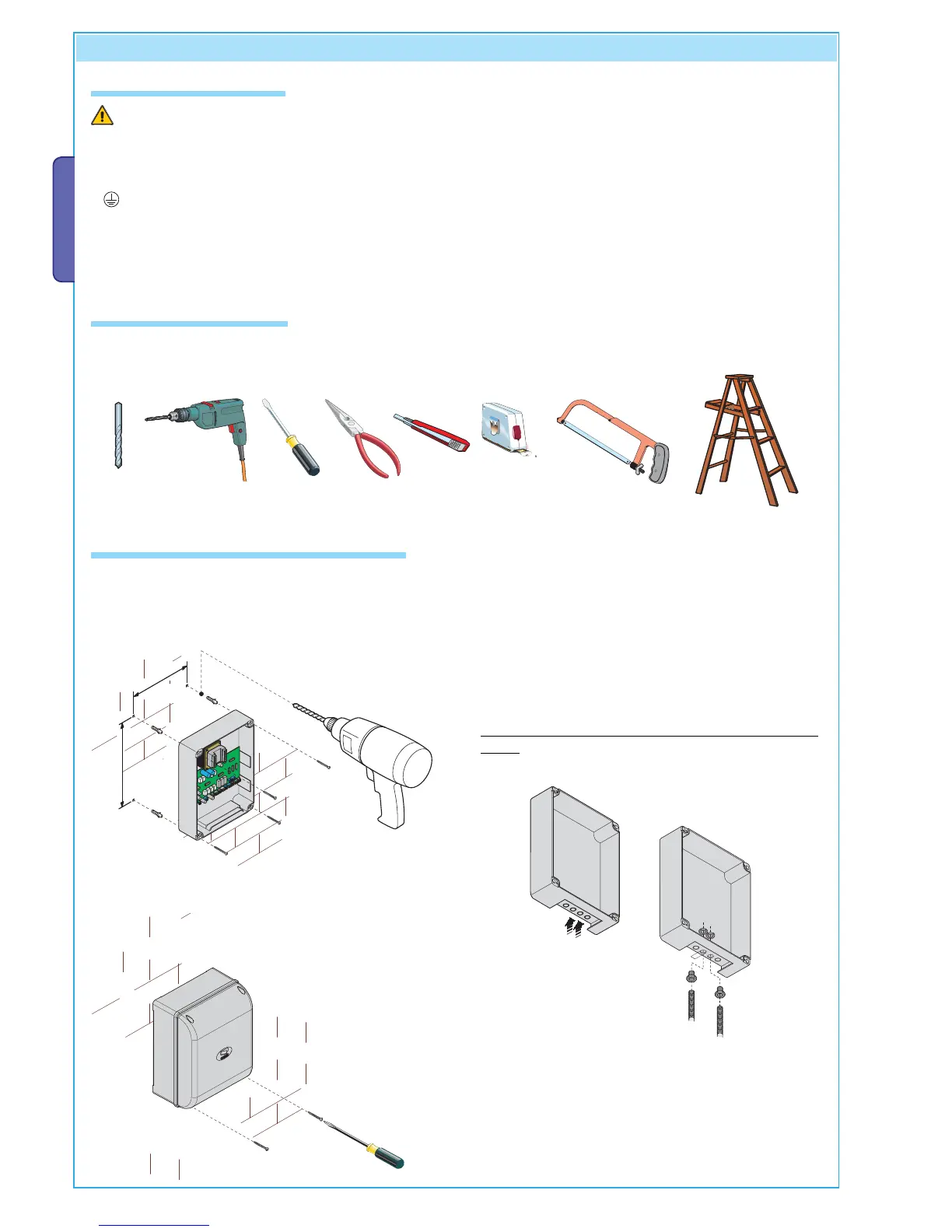

Before beginning to install, the following is necessary:
• Make sure that the point where the electrical panel is anchored is free from any impacts, and that the surface is solid and that
proper tools and materials are used (i.e. screws, wall plugs, etc.).
• Set up a suitable omni polar cut-off device, with distances greater than 3 mm between contacts, with sectioned power source.
•
Check that any connections inside the container (made for continuity purposes of the protective circuit) are fitted with extra
insulation compared to other internal conductive parts.
• Set up proper conduits and electric cable raceways, making sure these are protected from any mechanical damage.
Make sure you have all the tools and materials needed to carry out the installation in total safety and in accordance with current
regulations. Here are some examples.
1) Secure the base of the panel in a safe area; we suggest
using bolts with max. diameter of 6 mm Philips rounded
heads.
2) Perforate the marked holes and insert the cable glands with
corrugated tubes for the electrical cables to run through.
N.B.: the pre-perforated holes have different diameters: 23,
29 and 37 mm.
Careful not to damage the electronic board inside the
panel!!
3) After adjusting and setting, secure the cover using
the issued screws.
5.3 Fastening and mounting the container
5 Installation
5.1 Preliminary checks
5.2 Tools and equipment
