6 09/2014 © CAME cancelli automatici S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici S.p.A. to notify users.
ENGLISH

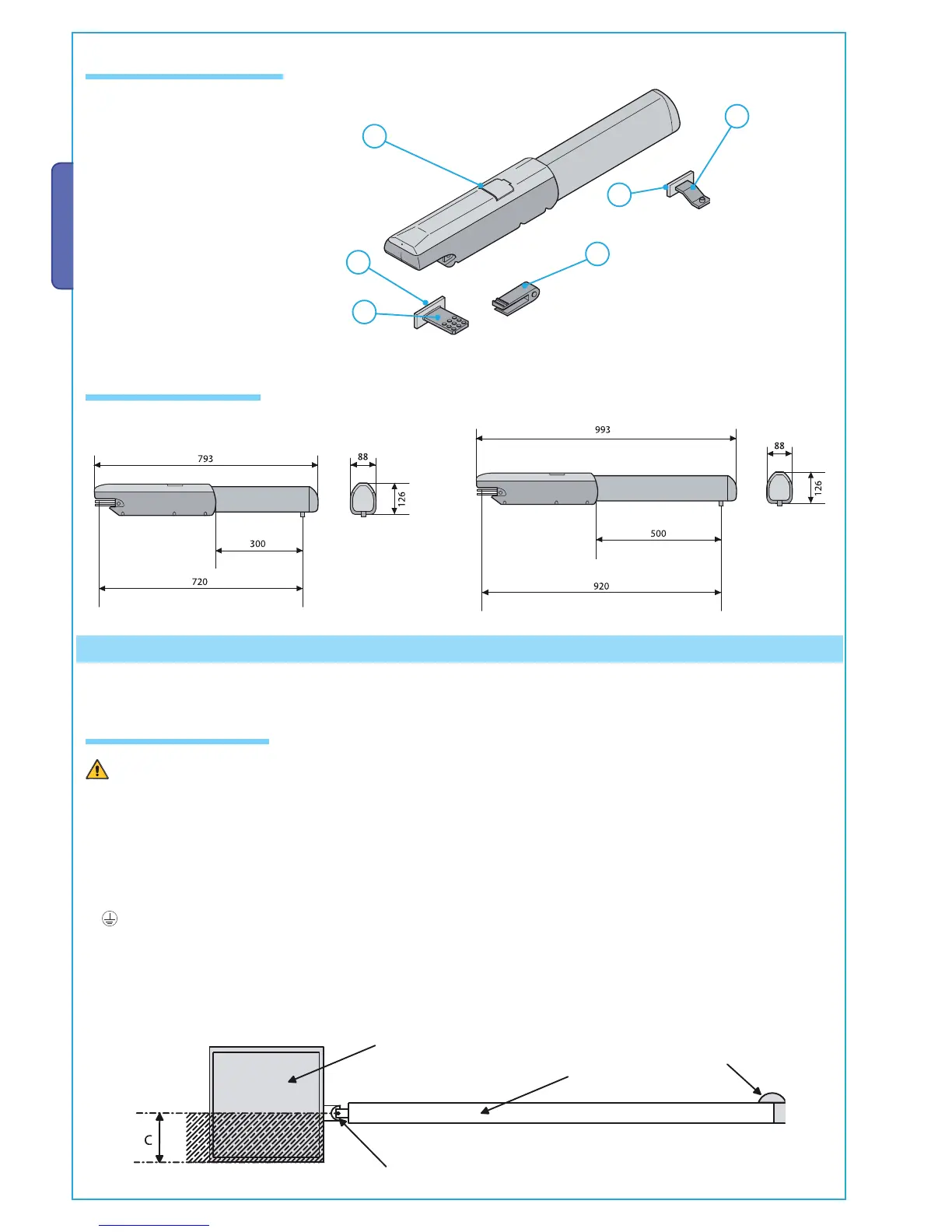

4.4 Overall dimensions
Before installing, do the following:
• make sure the structure of the gate is sturdy, the hinges work and that there is no friction between moving parts and non-moving
parts;
• measurement C cannot be greater than the value shown in Tab. 3, p. 5. In this case you need to work on the pillar until said measu-
rement is obtained;
• the path of the electrical cables must comply with the command and safety instructions;
• there must be a soundly secured to the ground mechanical stop to prevent the gate leaf/gearmotor from over extending.
•
Any connections inside the case (that provide continuance to the protective circuit) must be fitted with extra insulation as
compared to the other conductive part inside;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
5 Installation
5.1 Preliminary checks
Travel
Travel
Pillar
Gate leaf
End stop
Hinge
4.3 Description of parts
1) Gearmotor
2) Front bracket
3) Back swivel-joint
4) Back bracket
5) Anchoring plate
