CAME A 3000 - Electrical Connections; Operator and Power Supply Wiring

UVWX Y E
11 10
E
L1 L2
72C1 11 10 ESES1
KRONO
ATI
FAST
FERNI
KRONO
ATI
FAST
FERNI
p.
5
5 -
Manual code:
319S63
319S63 ver.
2.0
2.0 11/2011
© 11/2011 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

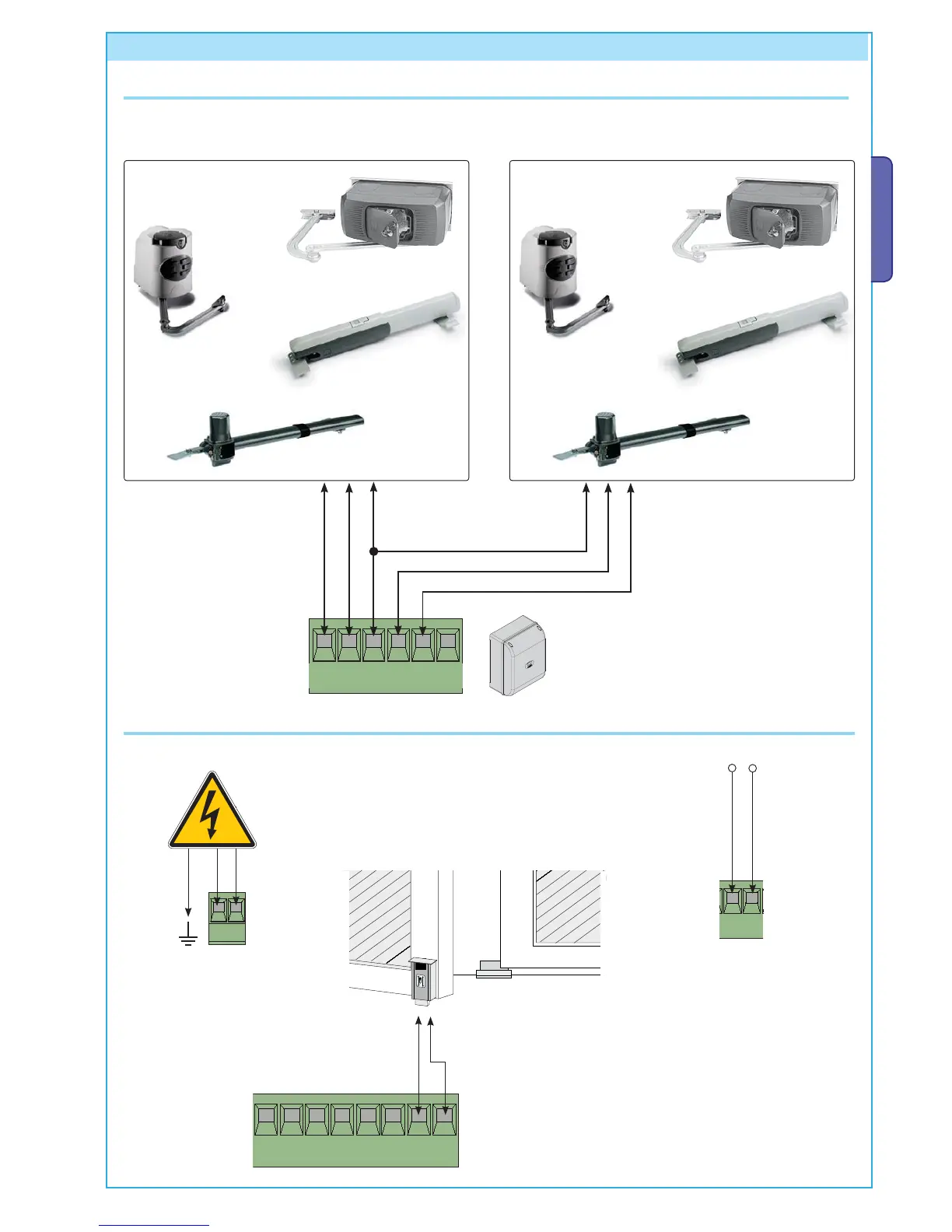

6 Electrical connections
Operator 1 delayed when opening
Operator
Operator 2 delayed when closing
Power supply to the
230V AC 50/60 Hz
control panel
Terminals for powering the
24V AC accessories. Overall
allowed power: 20W
Power supply
Electro lock connection (12V-15 W max.)
