CAME A 3000 User Manual

M8x10
M8x50
Pag.
7
- Manual code:
119 D4 9 E N
119 D4 9 E N ver.
6
6 09/2014
© CAME cancelli automatici S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici S.p.A. to notify users.
ENGLISH

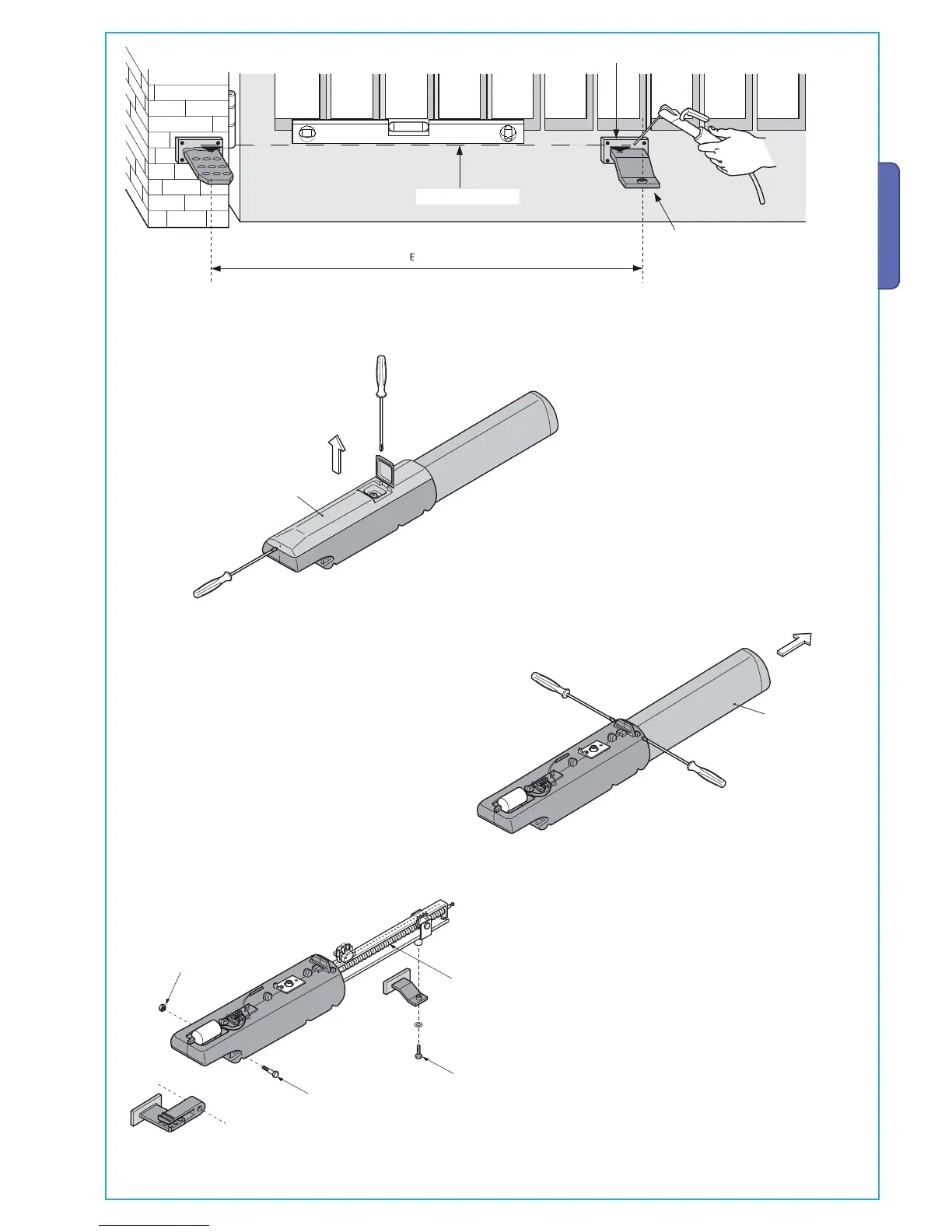

Unscrew the two screws and remove the carter.
Unscrew the two screws and remove the stem.
N.B.: upon installation we suggest lubricating (using a neutral grease) the endless screw and the bushing.
Begin fi xing the gearmotor to the two brackets.
M8 self-locking nut
Endless screw
Carter
Stem
With the gate closed apply the anchoring plate to the gate leaf, making sure that the front bracket is lined up horizontally with the
back bracket and ensuring that measurement E is met.
Level the bracket
Anchoring plate
Front bracket
