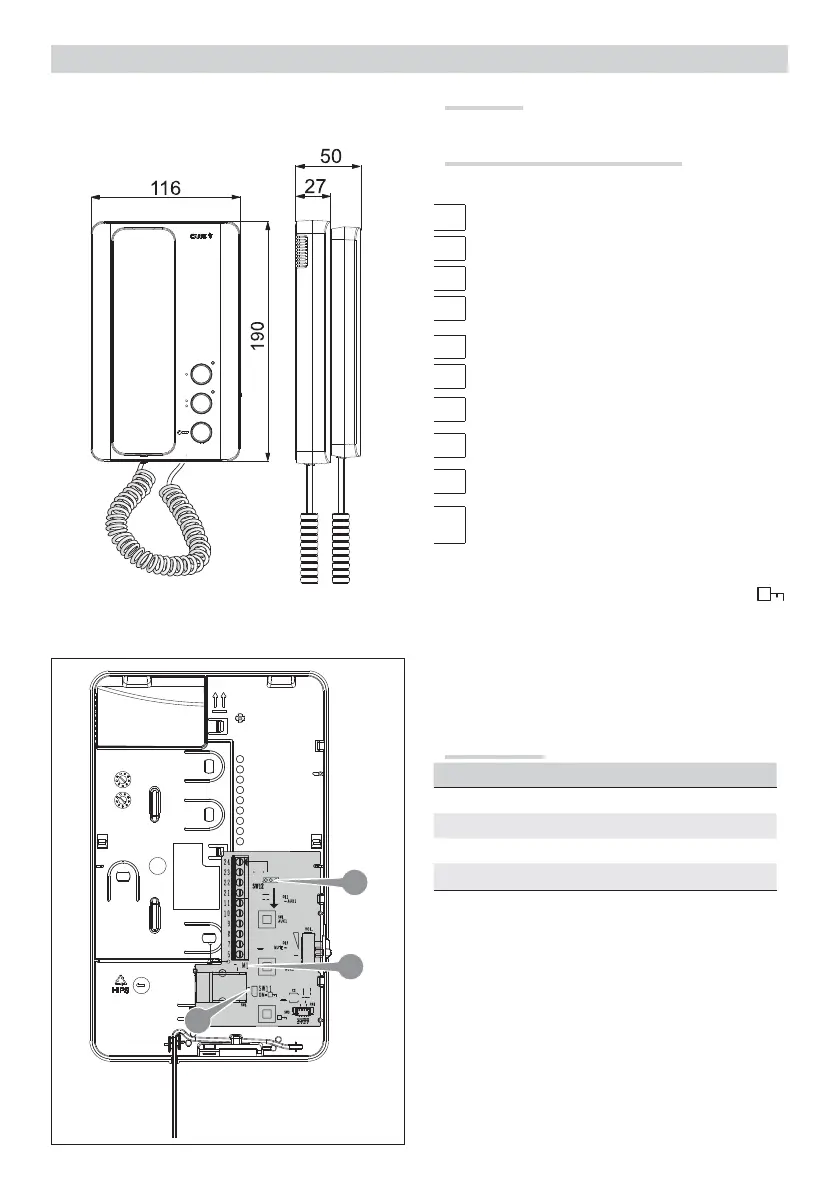

AGT A200K
Description
Intercom internal audio receiver.
Function of terminals and jumpers
Terminal board M1
5 Earth
7 Call from entry panel input
8 Audio FROM entry panel
9 Audio TO entry panel
10
AUX2: auxiliary services (24V 100 mA)
11
21 +11 to 175 VDC LED power supply
22
AUX 1 (24V 100mA)
23
24
AUX1 LED (active to earth with SW12 jumper in position
EXT.)
Function of SW11 jumper
Remove the jumper to make the door lock release button (
)
active only with the handset raised.
Function of SW12 jumper
EXT.: LED connected to terminal 24.
P.B.: LED connected to AUX1 key.
Technical data
Type AGT A200 K
Single LED consumption (mA) 1
Operating temperature (°C) +5 to +40
Storage temperature (°C) -25 to +70
IP Rating IP30
