Page 8 - Manual FA0142 5- EN - 08/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

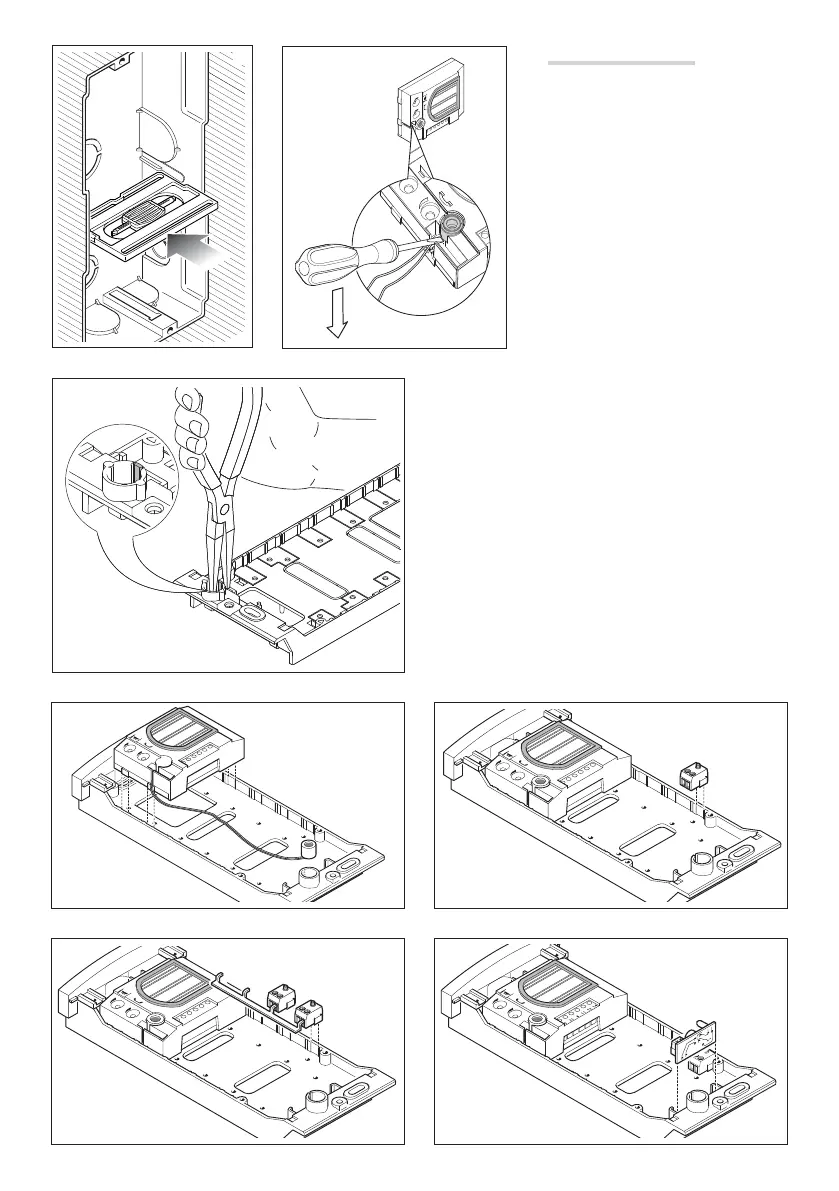

Recessed installation
The HTS recessed box must be walled in
fl ush at a suitable height, using the spacer
provided to prevent box deformation .
In systems where the Larsen e ect might
occur, the microphone can be mounted re-
motely .
To remove the microphone from its hous-
ing, pry it o from its base using a small
screwdriver, taking care not to damage
the cabling .
Before inserting the microphone into the
bottom of the back-box, use pliers to remove the part that is
highlighted .
Insert the audio unit near the top of the back-box .
Fit the microcontact (bottom right) into the correct housing .
The front plate is equipped with a common call for the
microcontacts, to be used when other buttons are to be
installed (maximum of 4) .
Insert the lighting unit in the relevant housing .
Remove the two protective seals on the holes in the recessed
box and attach the back-box using the two screws provided .
Make the connections and secure the cables using the cable
holder .
The cable holder must be located near to the audio unit.
