Function of terminals and jumpers
Terminal board A
Network
Terminal board B
+B Input 12 V DC 350 mA
5 Earth
21 Output 11 V DC
8 Common call output 1
8A Common call output 2
11 Audio from entry panel
12 Audio to entry panel
23 –
Output 14 V AC
16 +
NO Normally open
relay contactsC Common
NC Normally closed
(*) The device is electronically protected against overloads and
short circuits.
Terminal board C
5 Earth
8 Audio to internal receiver
9 Audio to internal receiver
Technical data
Type A/200R
Power supply 50-60 Hz (V AC) 230
Power consumption (VA) 34
Output voltages at 11 V DC (mA) 150
Output voltages at 14 V AC (mA) 650
Peak output voltages (mA) 300
Operating output voltages (mA) 650 (1A)
Storage temperature (°C) -25 to +70
Operating temperature (°C) 0 to +35
IP Rating IP30
Installation
• The device can be installed on DIN rails (EN 50022) on a suit-
able switchboard, or on the wall using the terminal covers.
☞Ensure that the power supply cables are appropriately fi xed
in place, to avoid stresses, traction or twisting.

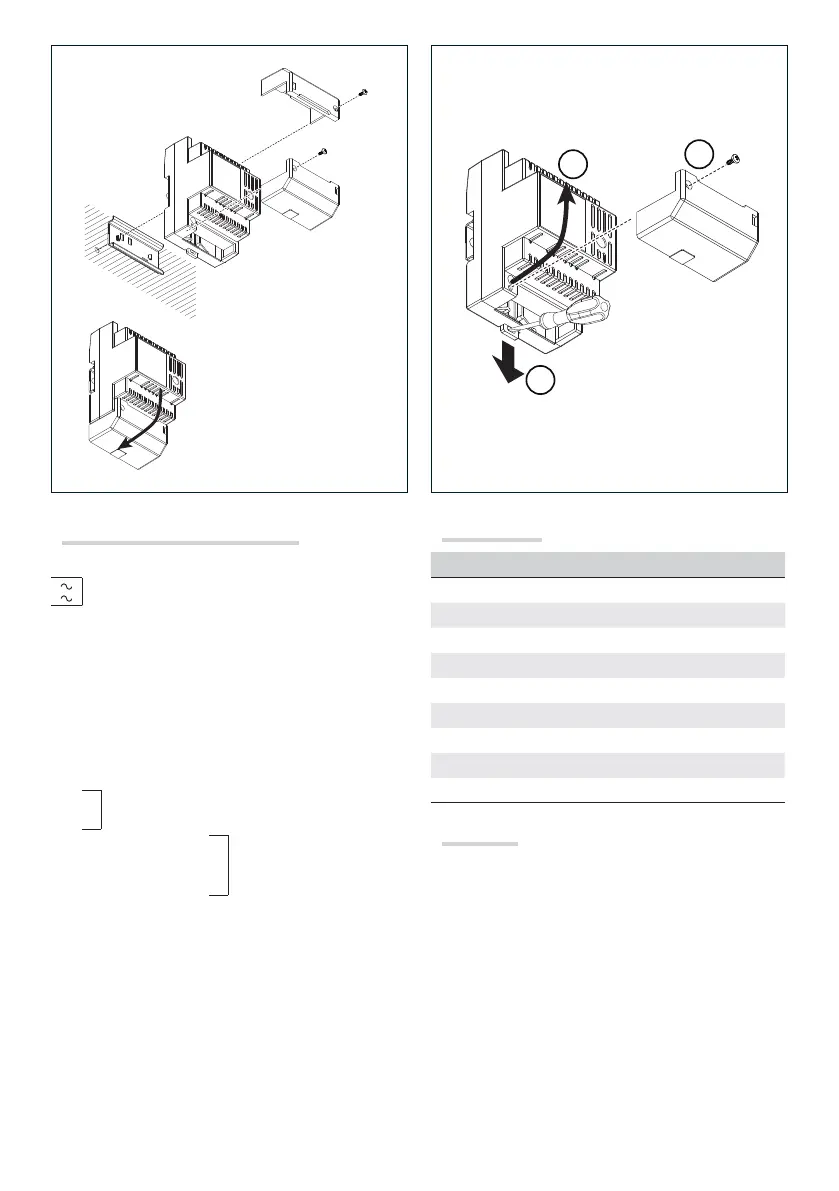

• To dismantle the device, proceed as shown in fi gure 2-3.
• See fi gure 1 for dimensions.
The power supply must always be installed horizontally.
Ensure there is correct ventilation if the power supply is
installed in a metal case.
