CAME AGTK200A03 User Manual

Ⓐ
Ⓑ
󱫀
Page 6 - Manual FA 01423 -E N - 03/2020 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the o
riginal instructions
HA/200

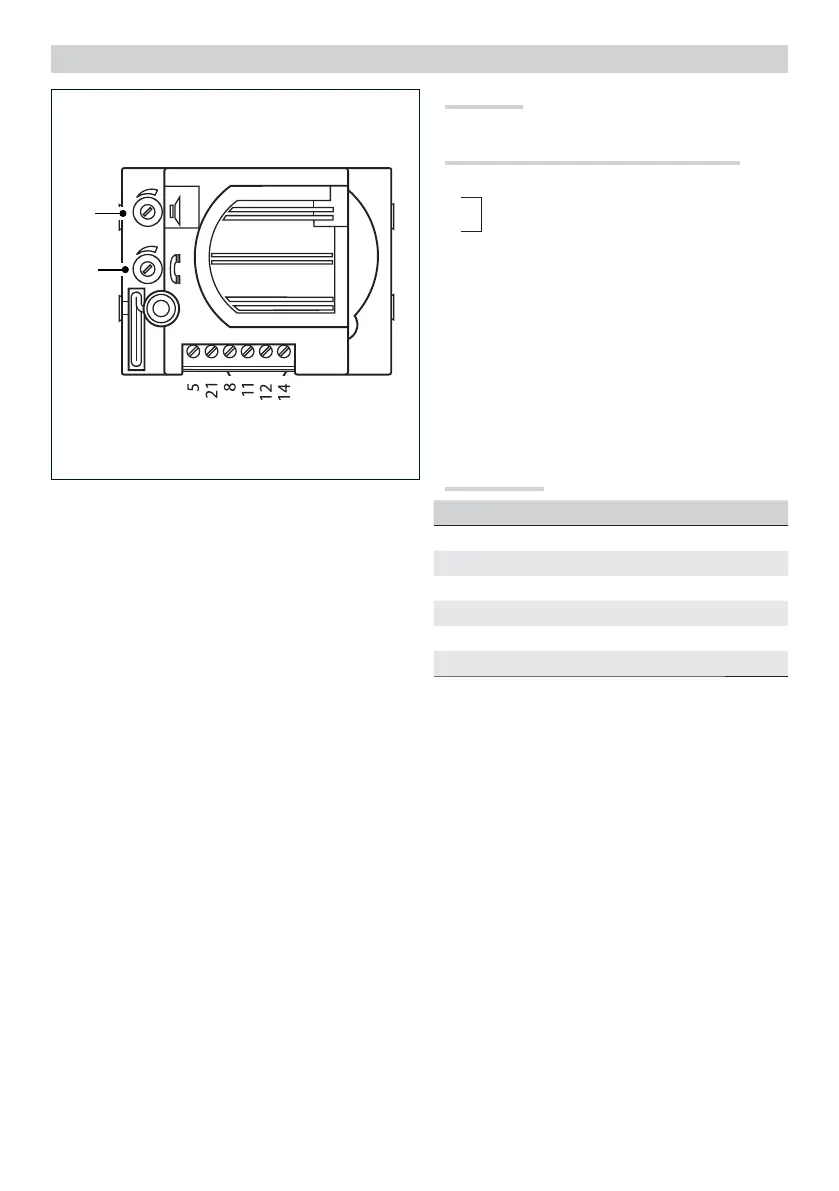

Description
Audio module.
Functions of terminals and audio adjusters
Terminal board 󱫀
5 – power supply
21 + 12 V DC
8 common call (for call beep)
11 audio to internal receiver
12 audio from internal receiver
14 enable
In systems in which there is an enable command, terminal
14 can be connected to the earth (unit always active) or to
terminal 12 (unit active only when handset is raised).
Trimmers 󱫀
Ⓐ Speaker audio
Ⓑ Microphone audio
Technical data
Type HA/200
Power supply (V DC) 12
Max power consumption (mA) 50
Power consumption in stand-by (mA) <35
Storage temperature (°C) -25 to +70
Operating temperature (°C) -15 to +50
IP Rating IP54

CAME AGTK200A03 Specifications

General

Brand	CAME
Model	AGTK200A03
Category	Intercom System
Language	English
