CAME AX3024 User Manual

E
A
E
A
1
2
p. 11 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions
(non-issued)
Supplementary bracket

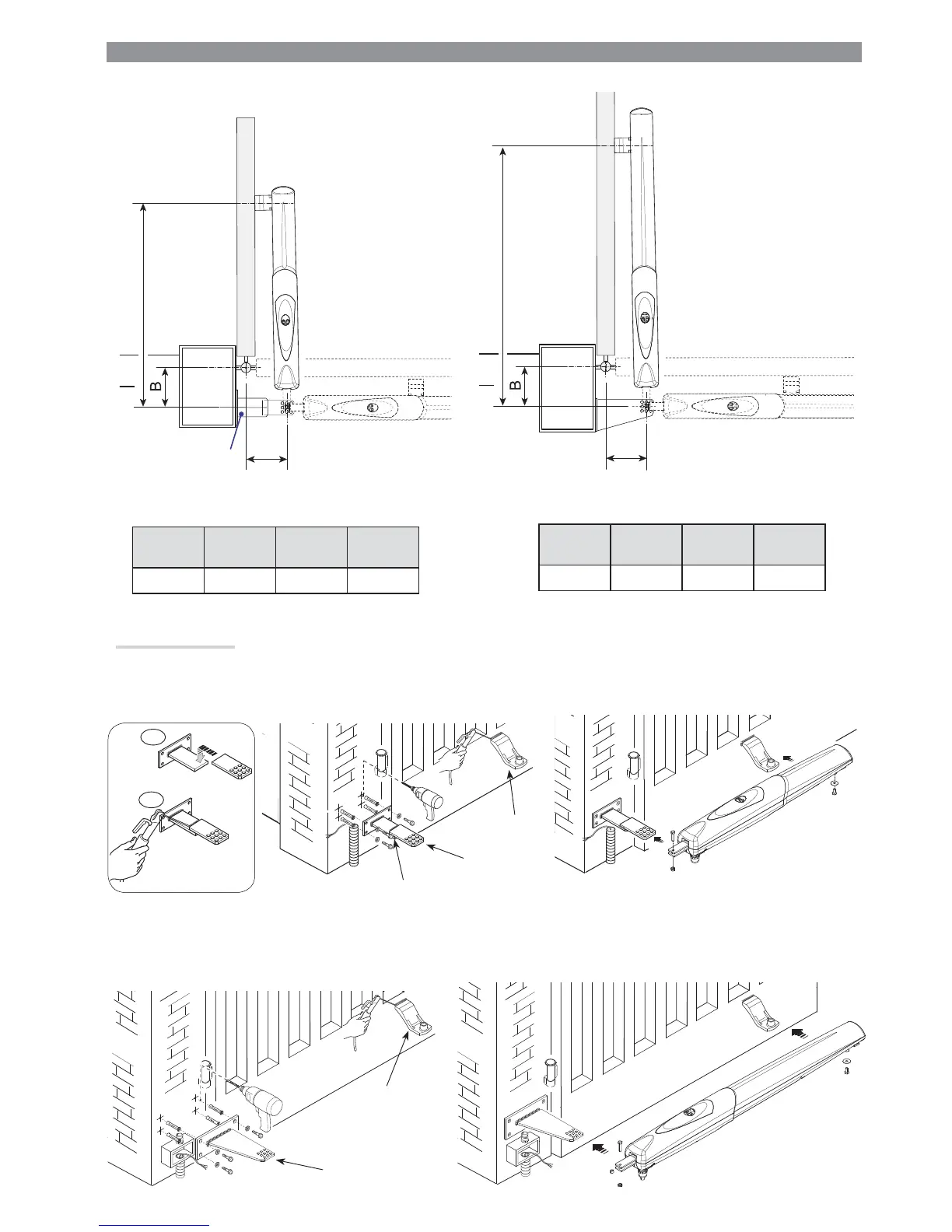

INWARD OPENING CONNECTIONS AND INSTALLING
Fastening the braces
Weld pillar bracket to the non-issued supplementary bracket, while gate is open, then secure the brackets to the pillar, making sure the “A” and
“B” quotas shown in table 1 are met. Weld, or secure with proper screws, the gate bracket, making sure the “E” quota is met, as shown in table
1. Finally, secure the gearmotor to the brackets with the issued screws and washers.
Opening
A
(mm)
B
(mm)
E
(mm)
90° 130 130 800
Opening
A
(mm)
B
(mm)
E
(mm)
90° 200 220 1100
TABLE 1 TABLE 2
For AX5024 gearmotors, directly secure the standard issue bracket to the pillar without using the supplementary bracket, while taking into
account the measurements shown in table 2.
Finally, secure the gearmotor to the brackets with the issued screws and washers.
Pillar bracket
Extra bracket
Gate bracket
Pillar bracket
Gate bracket

CAME AX3024 Specifications

General

Brand	CAME
Model	AX3024
Category	Gate Opener
Language	English
