p. 10 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions

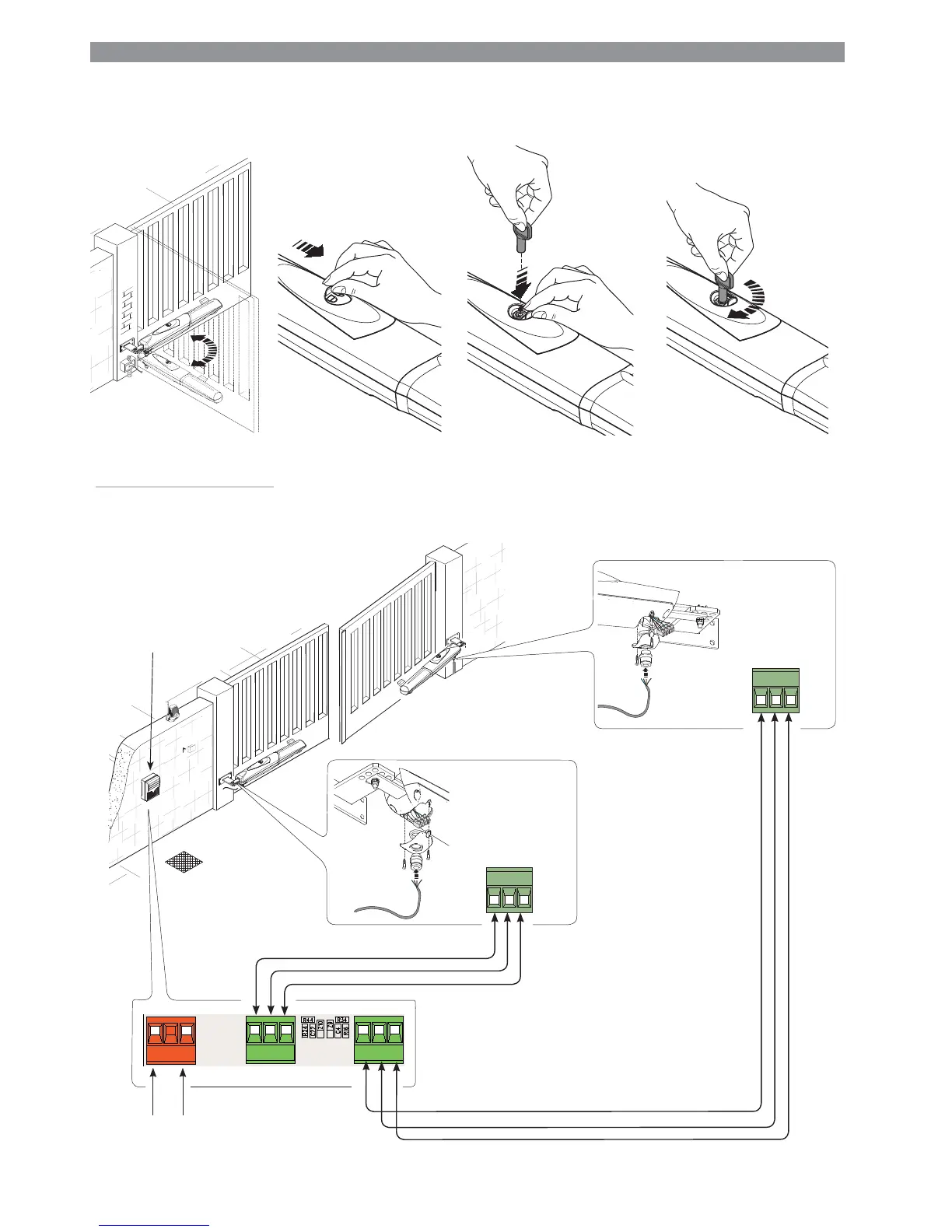

Slide open the small door that protects the release, insert the tri-lobed key and turn it.
For the electrical connection procedures, use the junction box and branching boxes.
Power
230V a.c. - 50/60 Hz
Connecting the 24V
d.c. delayed closing
gearmotor
Connecting the 24V
d.c. delayed opening
gearmotor
ZLJ24 Control panel
Connecting to the control panel
⚠
Warning! Before working on the control panel, cut off the main current supply and, if present, remove any batteries.
RELEASING THE GEARMOTOR
⚠
This procedure must be done with the main power cut o .
⚠
The gearmotor's manual release may cause unwanted movement of the gate, if the latter has any mechanical issues or if it is not balanced.
