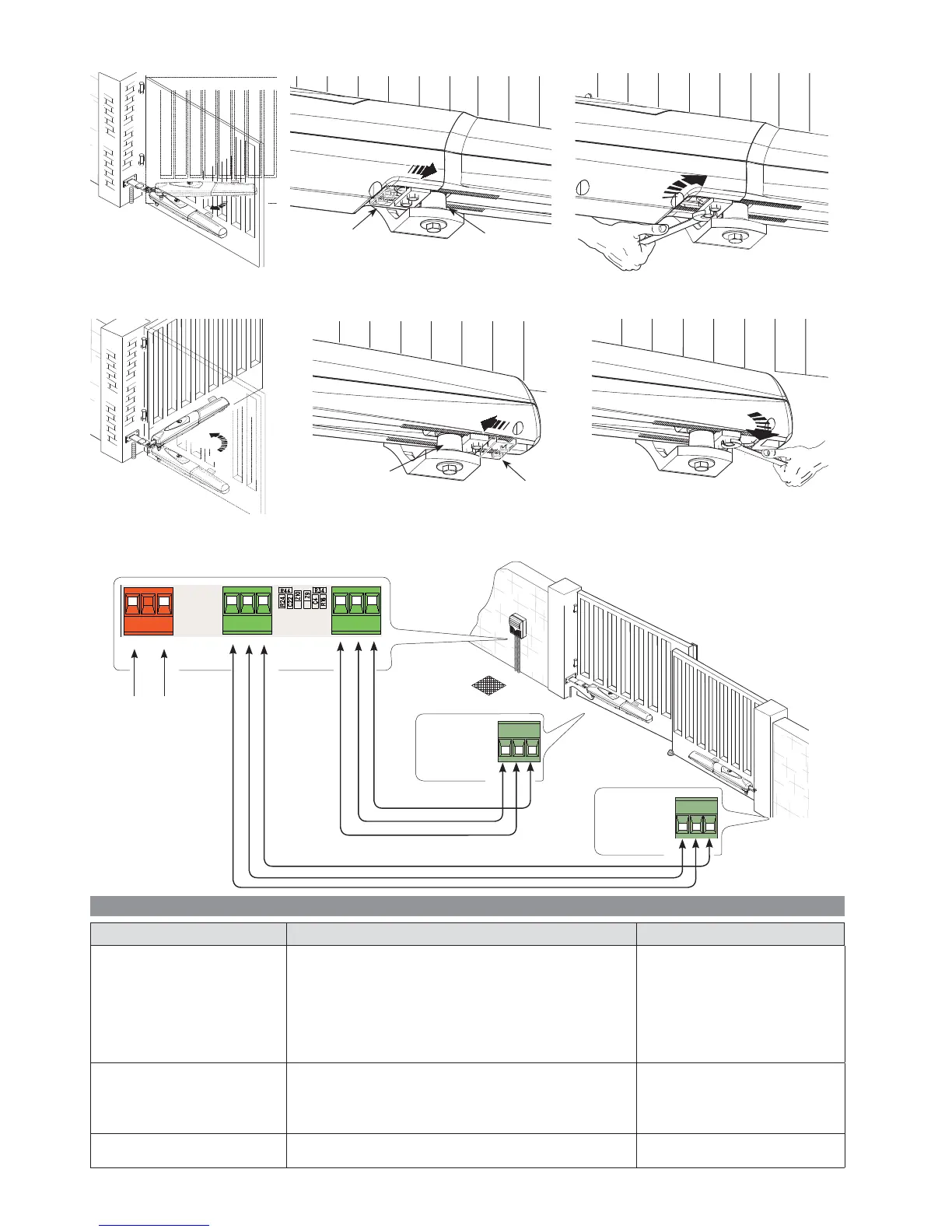

Fully close the gate-leaf, place the mechanical stop against it with the pin attachment and fi x it in place.
Opening mechanical
stop
Attachment pin
Fully open the gate-leaf, place the mechanical stop against it with the pin attachment and fi x it in place.
Closing mechanical stop
Attachment pin
Connect the gearmotors to the panel as shown in the diagram.
Power
230V a.c.
50/60 Hz
Delayed
closing
action
Delayed
opening
action
TROUBLESHOOTING
TROUBLES POSSIBLE CAUSES FIXES
It neither opens nor closes • Power supply missing
• The gearmotor is stuck
• The transmitter's battery is run down
• The transmitter is broken
• The stop button is either stuck or broken
• The opening/closing button or the key-switch selector is stuck
• Check main power supply
• Lock the gearmotor
• Replace the batteries
• Call for assistance
• Call for assistance
• Call for assistance
The gate opens but does not close • The photocells are soiled. • Clean and check that the
photocells work properly. Otherwise
call for assistance
The Flashing light does not work • The bulb is burnt • Call assistance
