p. 9 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions

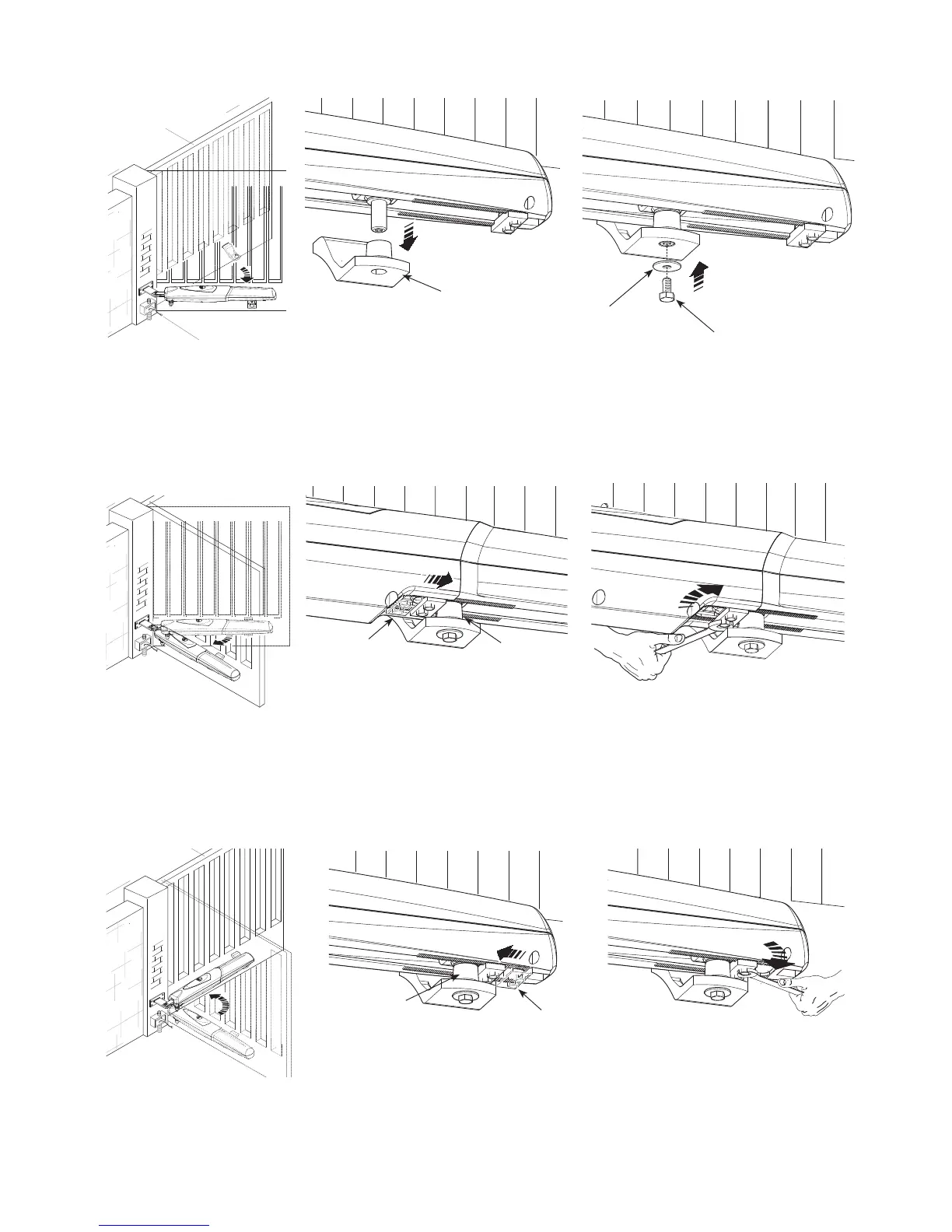

Close the gate leaf, loosen the nuts on the closing mechanical stop, place it up against the attachment pin, then secure it.
Closing mechanical stop
Attachment pin
Open the gate leaf and insert the pin into the gate bracket and secure it using a washer and nut.
Gate bracket
Release the gearmotor (see paragraph on manual release), completely open the gate leaf, loosen the nuts of the opening mechanical stop and
position it up against the attachment pin, then secure it.
Opening mechanical
stop
Attachment pin
Screw UNI5739 M8x10
UNI6593 Ø8 washer
