AX5024
AX3024
❶❷
p. 8 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions

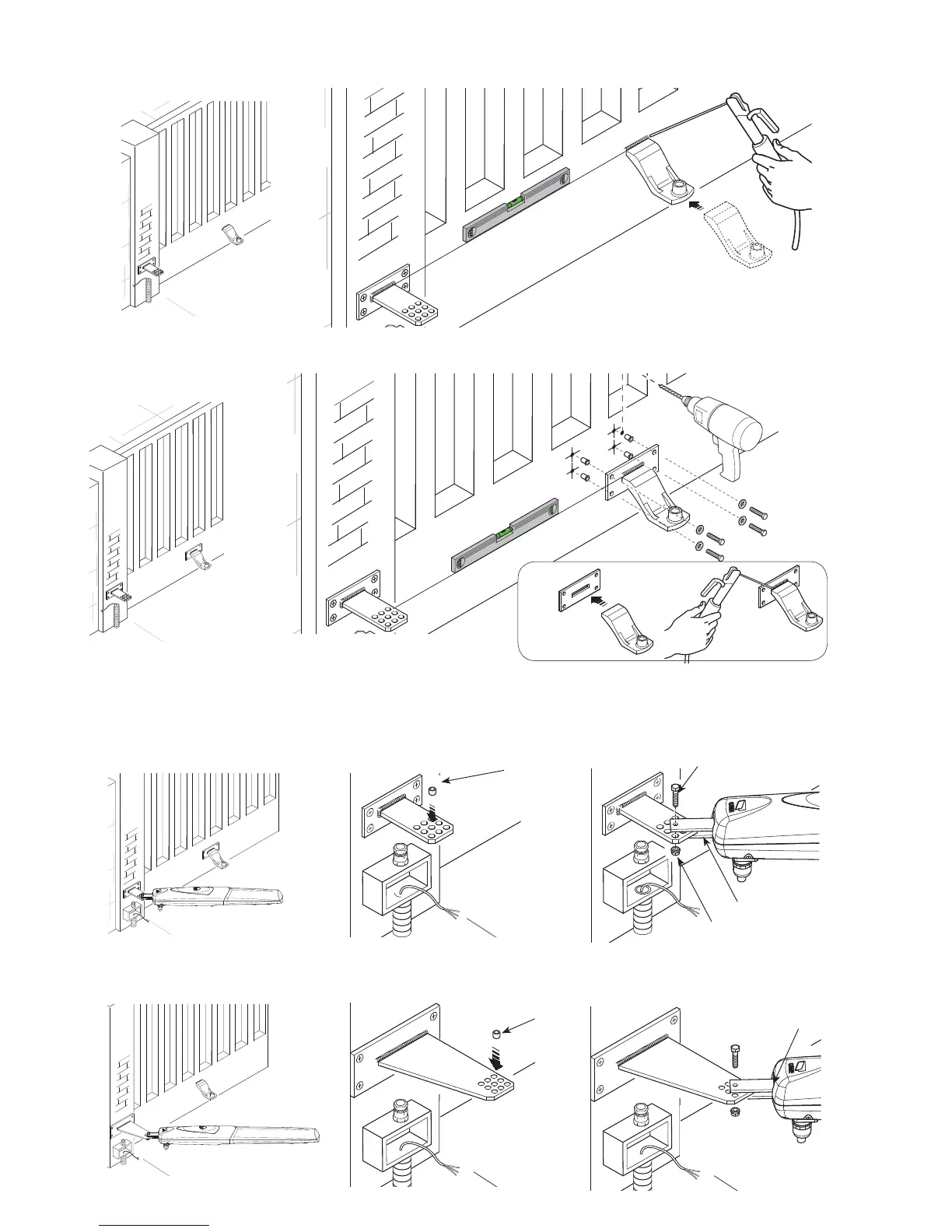

Insert the bushing (lubricated) into the pillar bracket’s hole. The bracket has holes that allow the opening angle to be changed. Secure the tail
joint to the bracket.
Note: on non-metal gate leaves assemble and weld the two parts of the bracket and secure them with proper screws. Secure
the tail joint to the bracket.
Weld the gate bracket to the gate leaf making sure the quotas shown in the table are met.
Note: for AX5024 gearmotors, require an additional 10 mm shim between the gate and the bracket.
Tail joint
Bushing
Tail joint
Bushing
Screw M8 x 35
Nut UNI 7474 M8
