❶
❶
❷
❷
p. 7 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions
Application dimension (mm)
AX3024
Leaf opening arc (°) A B C MAX E
90° 130 130 70
800120° 150 80 0
120° 140 100 50
AX5024
Leaf opening arc (°) A B C MAX E
90° 200
220
150
1100
120° 220 100
The greater the gate leaf's opening angle, the greater the opening speed and the slower is the gearmotor's thrust.
The smaller the gate leaf's opening angle, the slower the opening speed and the greater is the gearmotor's thrust.

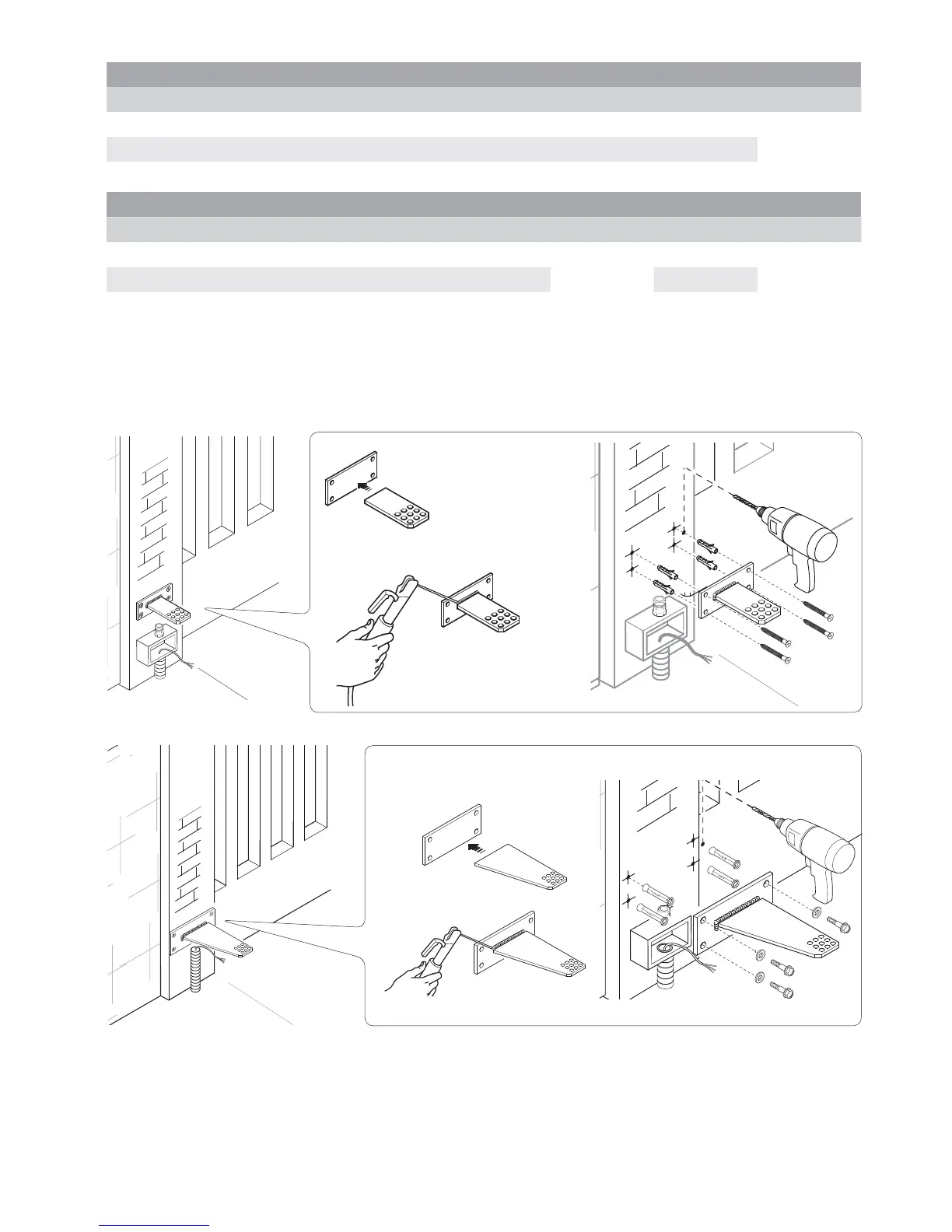

Assemble and weld the two parts of the post brace.
Fasten the brace to the established point, using suitable plugs and screws. If the post is metallic, weld the brace.
